2250 OPERATOR MANUAL SETUP AND INSTALLATION
4

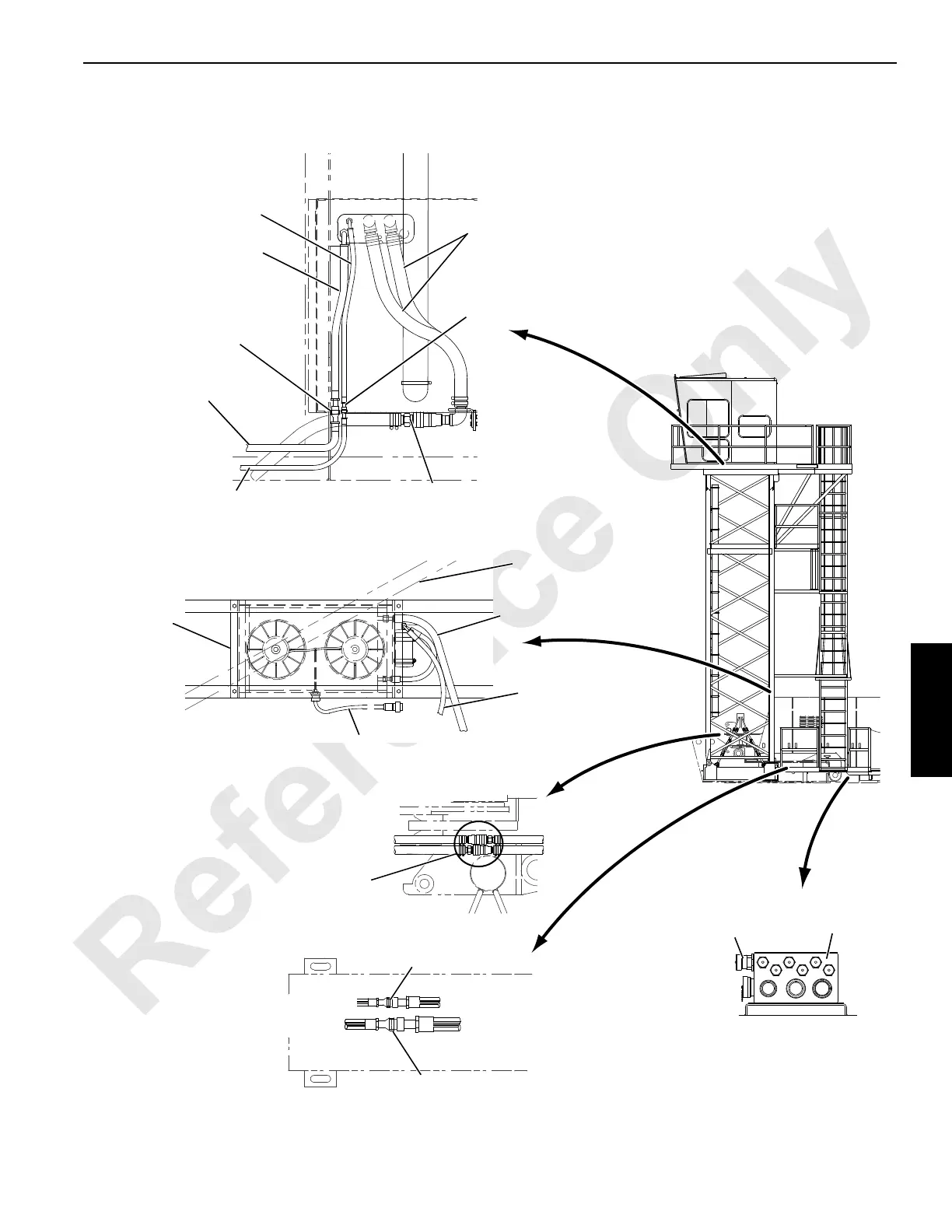

FIGURE 4-26
A1222
View C
Air Conditioning
Hose 12 Connection
Air Conditioning
Hose 8 Connection
From Compressor
To Co m pre s sor
To Condenser
From Evaporator
Condenser Fan
Power Cord
Receptacle
View D
Air Solenoid
Junction Box
View A
(viewed from underneath cab)
Air Conditioning
Hose 6 Connection
Air Conditioning
Hose 12 Connection
Hose 6
(from condenser)
Hose 12
(to compressor)
Heater Hose
Connections
Hoses From
Wiring Trough
Hose 12
(from evaporator)
Hose 6
(to evaporator)
Heater Hoses
Hose 8
(from compressor)
Hose 6
(to evaporator)
Power Cord
(to air solenoid junction box)
Condenser
View B
(viewed toward front of machine)
Tow e r
NOTE: Condenser typically
mounted on tower. Location
may vary.
To E n gine
To C ab
View E
Heater Hose
Connections
