2250 OPERATOR MANUAL SETUP AND INSTALLATION
4

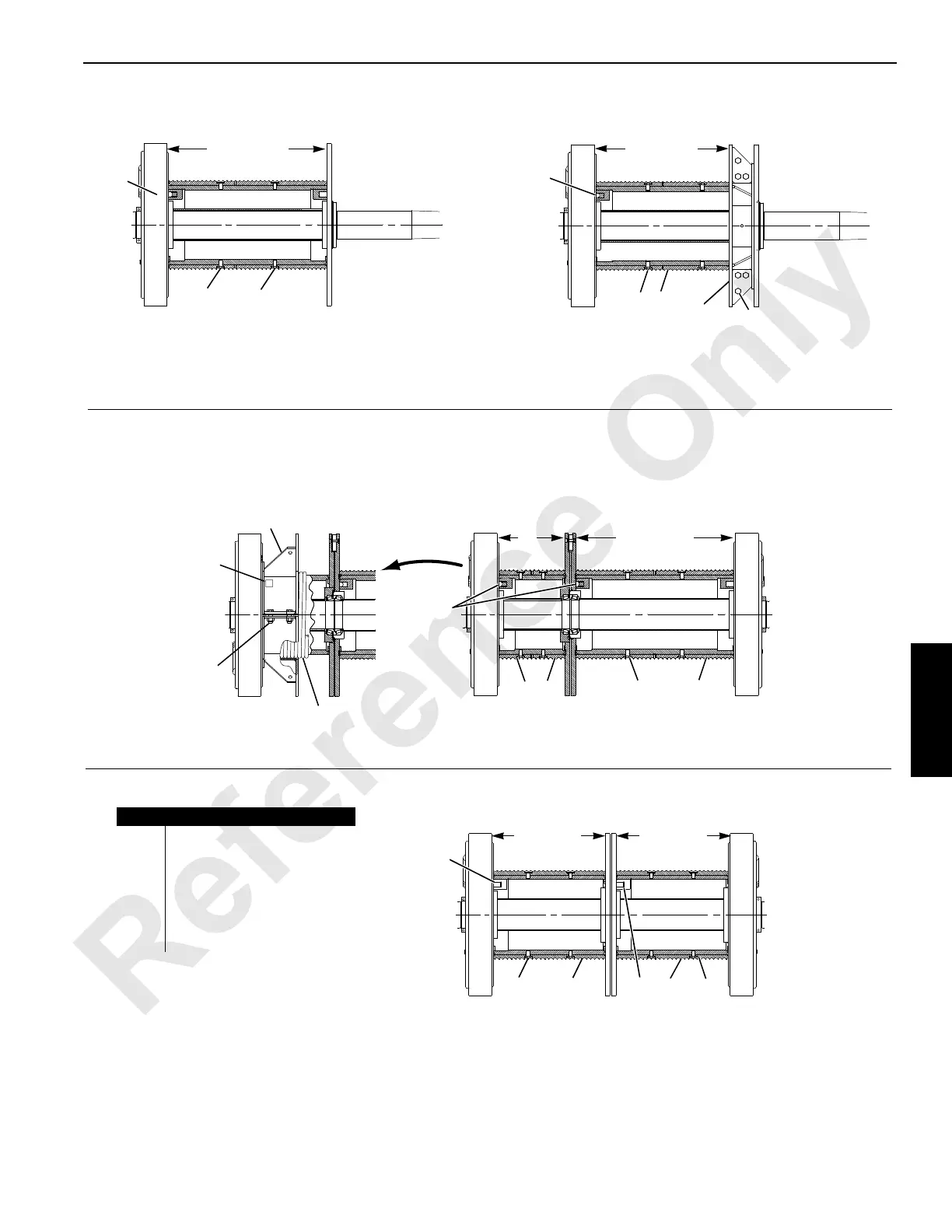

FIGURE 4-27
1,14 m (45 in)
0,97 m (38 in)
A792
View A
Clamshell (optional holding)
Bulk Material Handling (closing)
View B
Liftcrane (optional hoist or whip)
Container Handling (auxiliary)
1
5
4
3
2
1
2
3
2250 Front Drum
FIGURE 4-28
1,14 m (45 in)
(19 in)
0,48 m
Left Rear
Liftcrane (whip)
Mast Self-Erect
Clamshell (holding)
Right Rear
Liftcrane (hoist)
Clamshell (closing)
Bulk Material Handling (holding)
3
5
6
1
2
3
1
2
Spacer installed over one
layer of wire rope
2250 Unequal Split Rear Drum
1
Required to ensure proper drum
spooling. Rope and sheave
damage will occur if spacers are
not installed.
Item Description
1 Lagging
2 Lebus Fastener
3 Wire Rope Anchor Wedge
4
Spacer (liftcrane only)
1
5 Elastic Stop Nuts and Bolt
6 Spacer (MAX-ER Self-Erect
Mast)
FIGURE 4-29
0,81 m (32 in)
0,81 m (32 in)
1
2
3
3
1
2
Left Rear
Container Handling (hoist)
Clamshell (holding)
Right Rear
Container Handling (hoist)
Clamshell Closing
2250 Equal Split Rear Drum
