SETUP AND INSTALLATION 2250 OPERATOR MANUAL
4-100
Published 06-24-16, Control # 241-01
P2
(slack)
Item Description
P1 Extended Upper Boom Point Pendant—6,4 m (21 ft)
P2 Backstay Basic Pendant—20,0 m (65 ft 7 in)
P3 Backstay Pendant—2,2 m (7 ft 4 in)
P4 Upper Boom Point Stop Pendant—1,6 m (5 ft 5 in) (qty 2)
P2
(taut)
P2
P3
P3
A1143
View A
View B
P4
Upper Boom
Point Butt
Boom
Top
Lower Boom
Point Lug
Pin
Pin
View C
P1

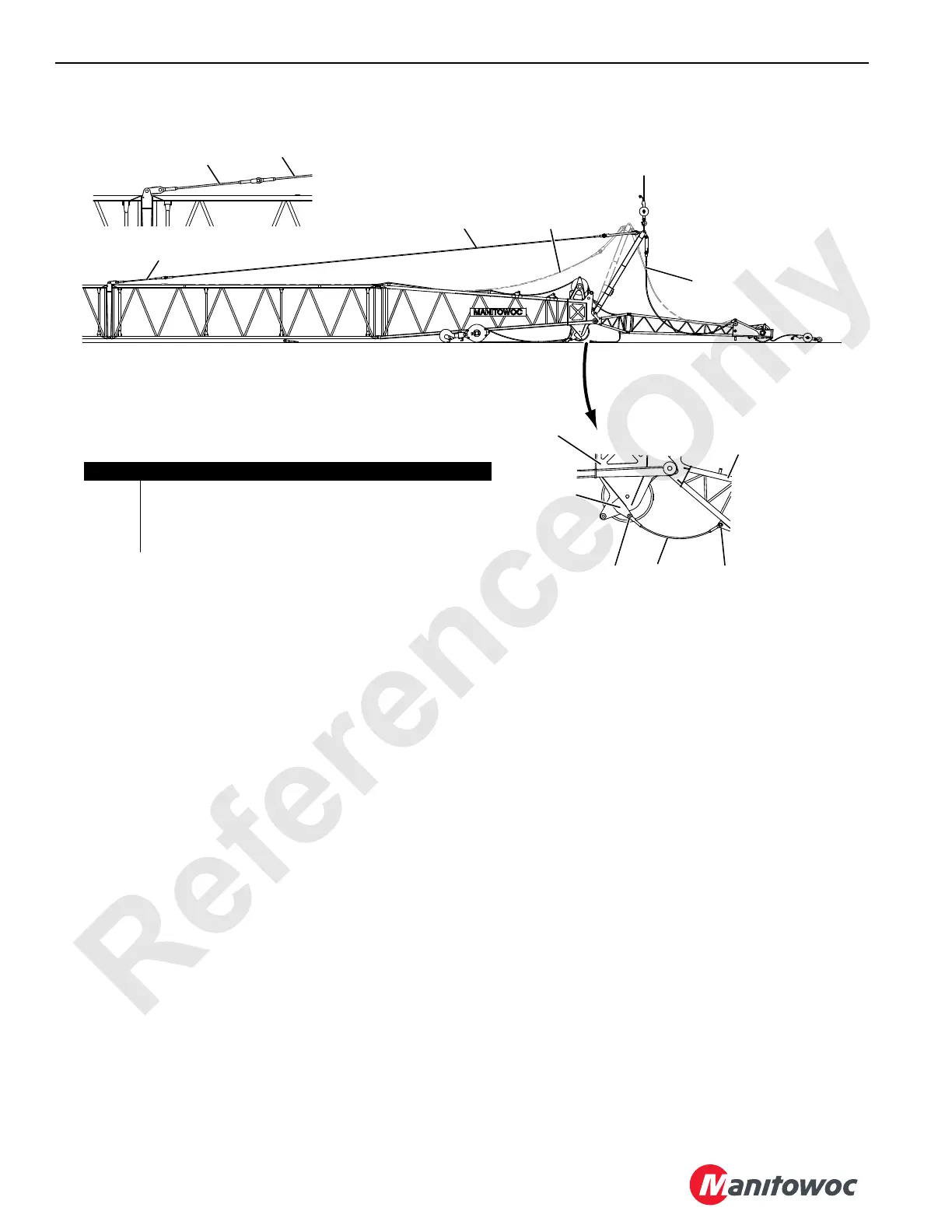

FIGURE 4-53
