Manitowoc Published 06-24-16, Control # 241-01 4-119
2250 OPERATOR MANUAL SETUP AND INSTALLATION
NOTE: Use Method A only if the wire rope clip is small
enough to be securely tightened to the dead end.
Method C is applicable only for a terminator socket
and wedge.
6. After the socket is pinned in place, hoist the load slowly
so the wedge seats tight. Do not shock load the socket
and wedge.
WARNING
Falling Load Hazard!
Avoid death or serious injury. Wire rope can break if the
following precaution is not observed.
Do not attach the dead end of the wire rope to the live end
with a wire rope clip. The wire rope clip will transfer the
load from the live side of the wire rope to the dead end,
seriously weakening the attachment.
TL (Tail Length)
Standard 6-to-8 Strand Wire Rope
Minimum of 6 rope diameters, but not less than 152 mm (6 in)
Rotation Resistant Wire Rope
Minimum of 20-rope diameters, but not less than 152 mm (6 in)
T (Rope Clip Nut Torque)
Wire Rope / Clip Size
mm
(inch)
22,23
(7/8)
25,4
(1)
28,58
(1-1/8)
31,75
(1-1/4)
Torque
kN/m
(* ft/lbs)
0,30
(225)
0,30
(225)
0,30
(225)
0,49
(360)
* Tightening torque values shown are based on threads being
clean, dry, and free of lubrication.

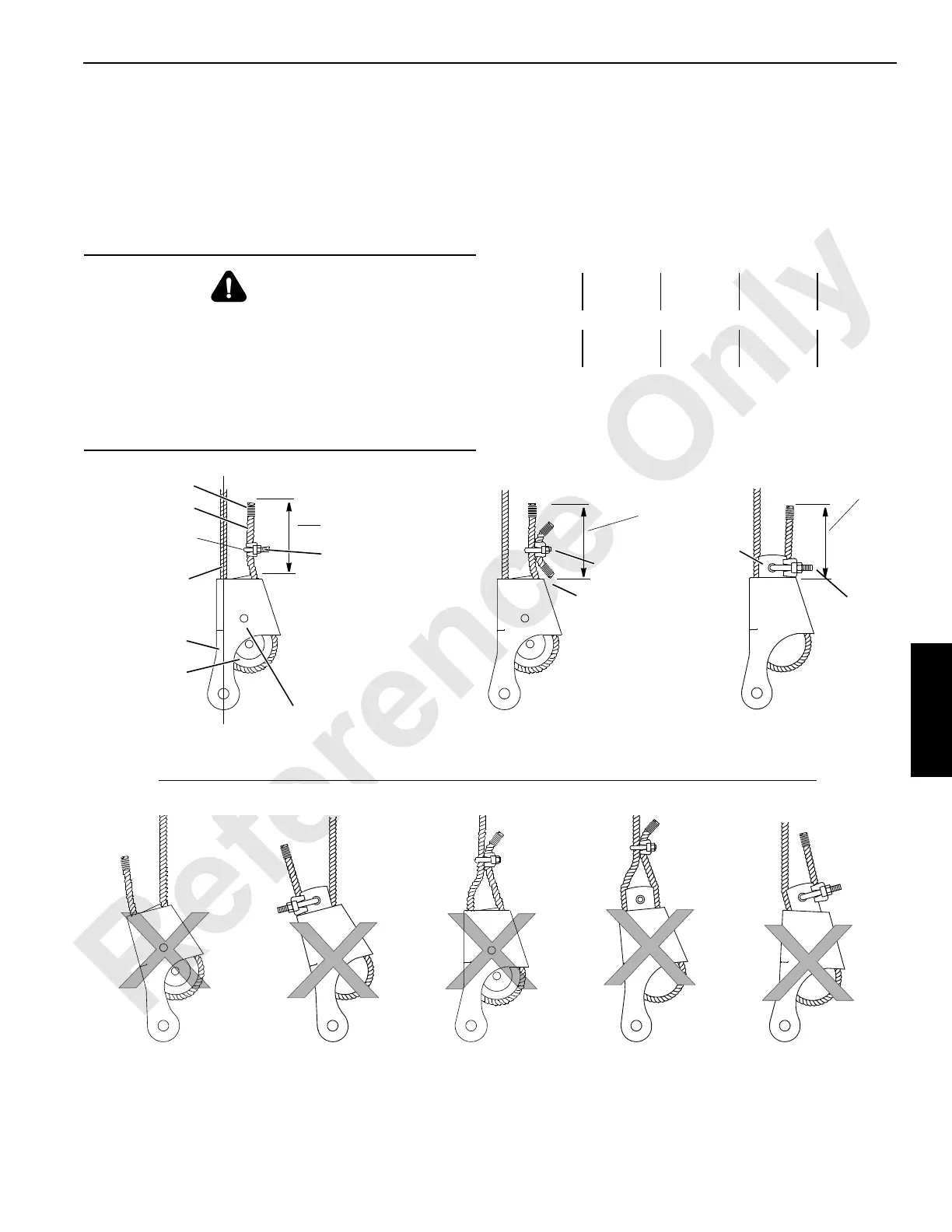

FIGURE 4-65
A925
RIGHT!
Method B
Short Piece
of Wire Rope
Wire
Rope Clip
Do not reinstall any shipping material
(bolt, plastic strap, or wire) in the hole of
the wedge or socket after assembling.
Live End in
Straight Line
with Socket
Wire
Rope Clip
Seizing
Socket
Wedge
RIGHT!
Method A
WRONG!
Rope Backward
WRONG!
Dead End Clipped
to Live End
Dead End
Wire
Rope Clip
Terminator
Wedge
RIGHT!
Method C
WRONG!
Rope Backward
WRONG!
Dead End Clipped
to Live End
WRONG!
Wedge Backward
ALL ARE DANGEROUS AND PROHIBITED!
Tail Length
Tail Length
Tail Length
To Next Page
