Manitowoc Grove TMS9000-2 Series User Manual

OPERATING CONTROLS AND INDICATORS TMS9000-2 OPERATOR MANUAL
3-130 Published 02-21-2019, Control # 611-05

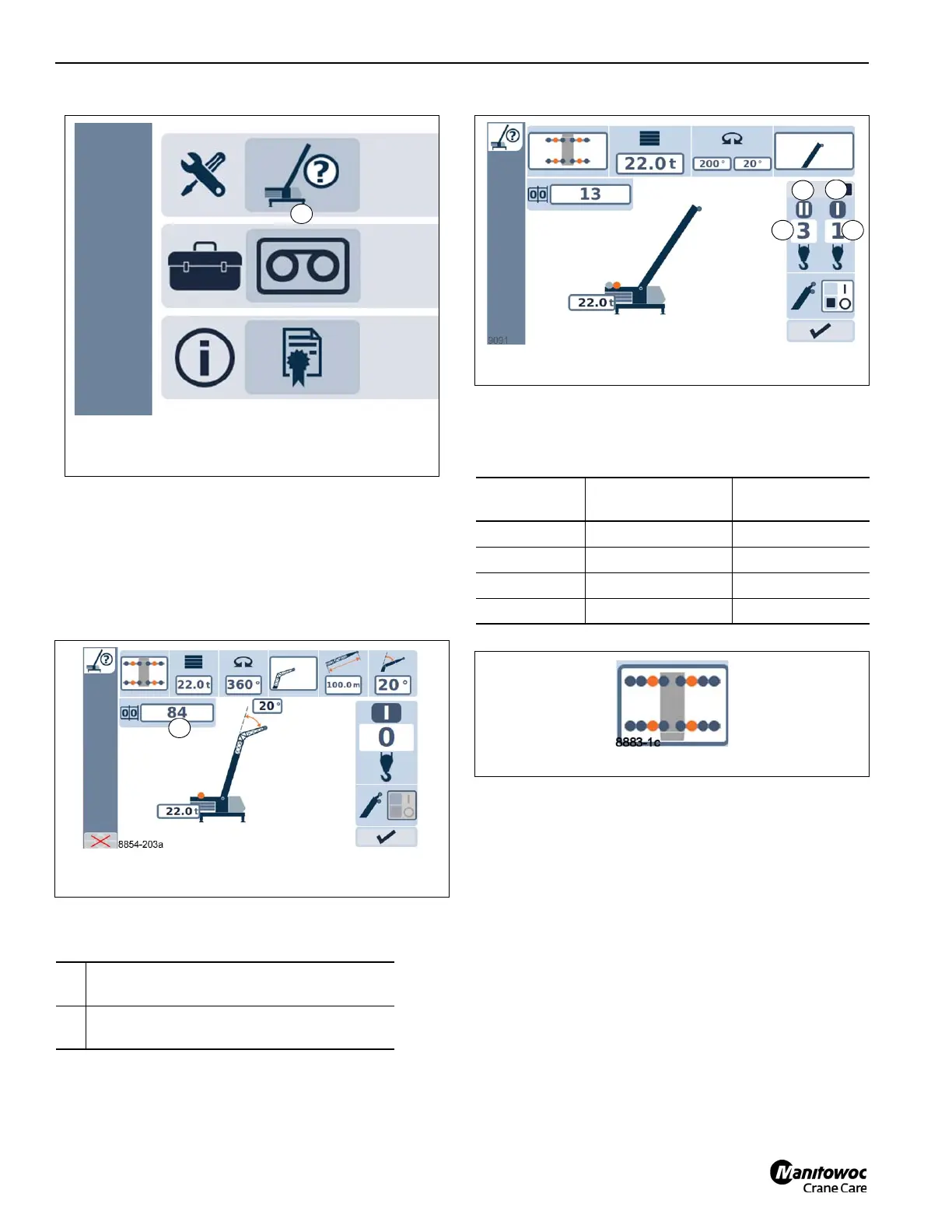

Enter RCL code
When the RCL code is known enter it in the following
manner:
Select number (1, (Figure 3-189)) and using the arrow
buttons on the control panel or the jog dial enter the RCL
code and confirm.
Enter reeving
In input mode (Figure 3-190)
Enter outrigger span
In the input mode (display according to the equipment).
Select outrigger span symbol ((Figure 3-191)) and confirm
To change between selections, press ENTER to choose the
outrigger selections and rotate the jog dial, or use the arrow
buttons on the control panel, until the desired outrigger
position is highlighted, then press ENTER again.
If the OMS does not match the selected positions an
additional screen opens after selecting the check mark at the
bottom right corner of this screen. There, the detected
positions and selected positions are shown side by side
(Figure 3-192). The operator has the choice of 1) Returning
to this setup screen to change the selection --OR-2) Verifying
that the chosen outrigger position is the one to use even
though it doesn't match the OMS, in which case the screen
transitions to the main viewing screen.
1
For main hoist:
Select reeving symbol (3) and confirm
2
For auxiliary hoist:
Select reeving symbol (4) and confirm
1
FIGURE 3-188
8883
FIGURE 3-189
8854-203a
1
Description Outrigger Span
Percent
Extended
Full 7.00 m (23.0 ft) 100%
Mid 2 6.00 m (19.7 ft) 79%
Mid 1 5.00 m (16.5 ft) 57%
Retracted 2.32 m (7.6 ft) 0%
FIGURE 3-190
9091
1
2
34
FIGURE 3-191
8883-1c
