Manitowoc Grove TMS9000-2 Series User Manual

Grove Published 02-21-2019, Control # 611-05 3-135
TMS9000-2 OPERATOR MANUAL OPERATING CONTROLS AND INDICATORS
3

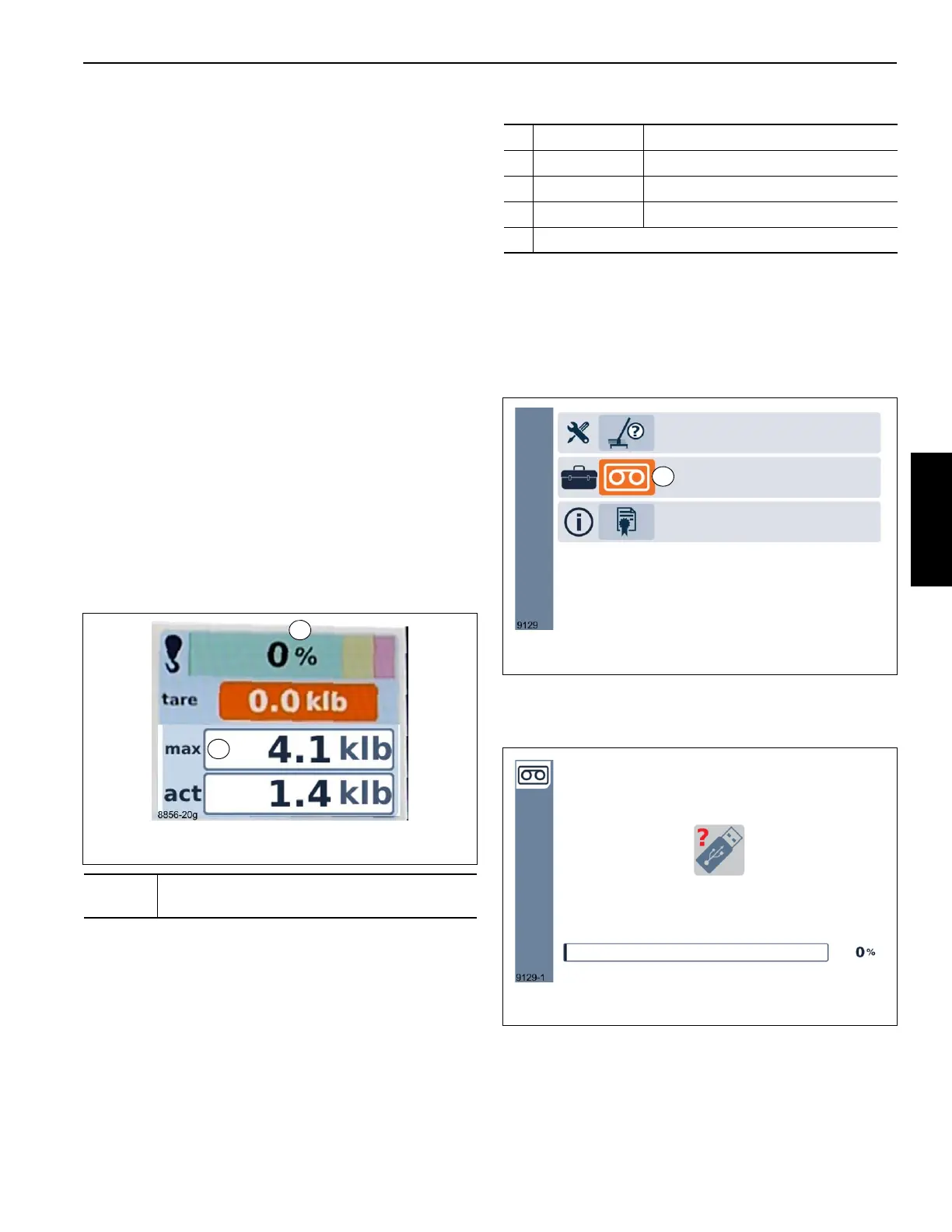

RCL Display Operating Screen: Tare Function
• By default, the Tare function is displayed on the RCL.
• To enable the Tare function the operator has two ways
of doing this.
• Using the RDM Key pad or the Jog dial,
- press the Tab button.
• Using the Jog Dial,
- adjust the Tare Value. When adjusting the Tare
value, the Actual Weight will decrease
proportionately with the increased Tare value.
• After setting the Tare Function, if the Operator changes
the rigging code, the Tare weight will not be reset, and
the Tare value will still be deducting the Actual Weight.
• To disable the Tare function, set the tare value to "0.0".
Note: The Tare Function is used only as an Operator aid and
does not change or override the RCL and Load Chart
Cutoffs.
In the below example:
The Actual Load is 1.4klb, if you set the Tare Value to 1.2klb,
the Actual Load would then be displayed as 0.2klb.
Maximum load display
Current degree of utilization display
Degree of utilization = 100 x current load/maximum load (2,
(Figure 3-205))
Data logger
The data logger is used to download the status of the
machine.
1. Select the data logger icon (1, (Figure 3-206)) on the
RDM.
2. Insert USB drive into the USB port of RDM
(Figure 3-207).
3. Press USB Button once drive is detected to start
download (Figure 3-208).
Display:
Maximum load (1, (Figure 3-205)) in tons (t) or
kilo-pounds (klbs) for the displayed RCL code
FIGURE 3-205
8856-20g
1
2
1 Color display:
• Green: 0 - 90%
• Yellow: approx. 90 - 100% – early warning
• Red: greater than 100% – lockout
2 Display in percentage
FIGURE 3-206
9129
1
FIGURE 3-207
9129-1
