OPERATING PROCEDURES TMS9000-2 OPERATOR MANUAL
4-50
Published 02-21-2019, Control # 611-05

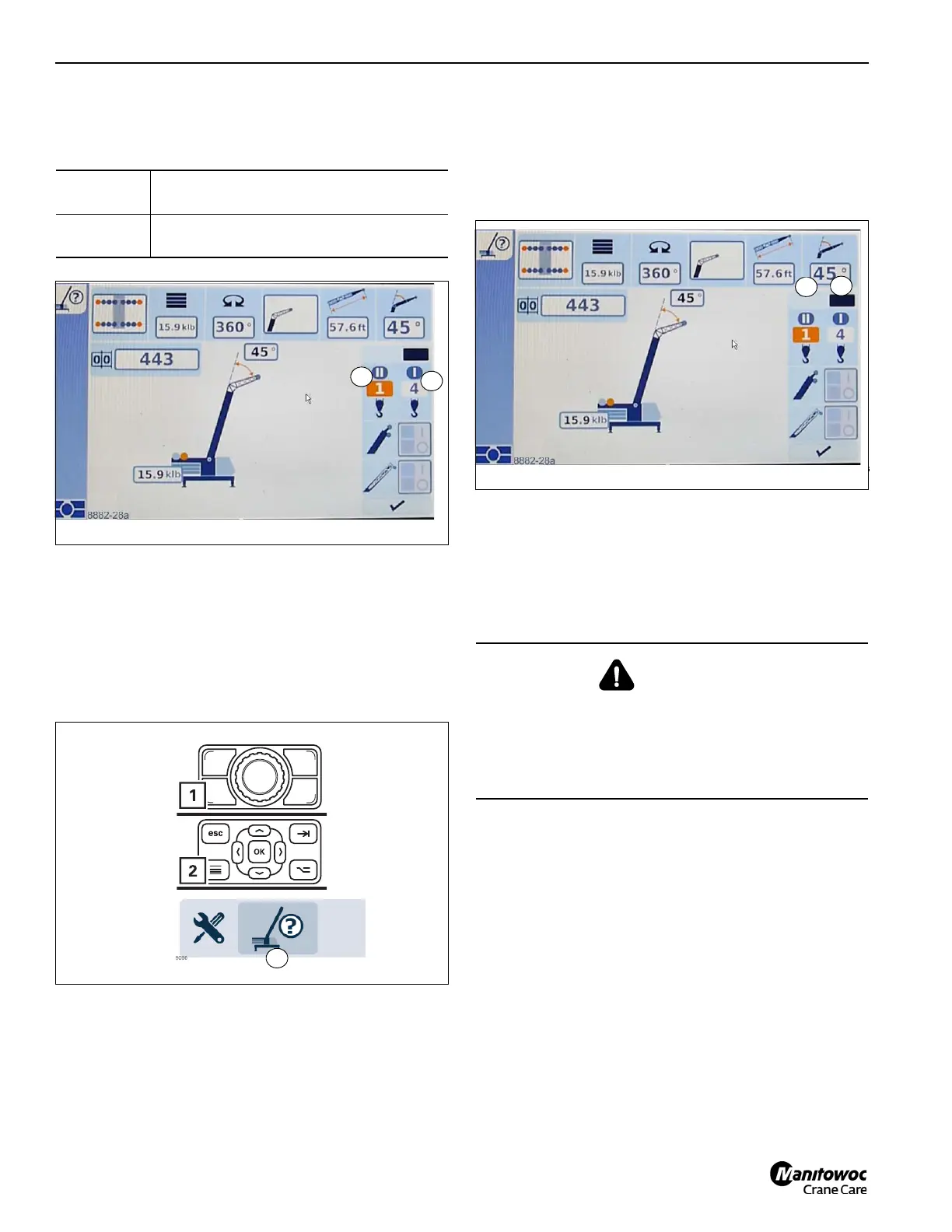

Hoists display
The symbol (Figure 4-64) for the hoist with which the load is
to be lifted must be shown in green:
Switch over the display if necessary, refer to Example of how
to switch over the display, page 4-50.
If you need to correct values, press the button (1,
Figure 4-65) or (2) and open the Enter rigging mode(3)
menu.
You can start working with the crane if the correct rigging
mode of the truck crane is displayed.
Example of how to switch over the display
The load should be raised with the auxiliary hoist, for
example. However, the hoist indicator (2, Figure 4-66) for the
main hoist is on and the indicator (1) for the auxiliary hoist is
off.
Switch over the display as follows:
• Switch off both hoists by selecting no hoist indicator.
Switch on the auxiliary hoist indicator.
The hoist indicator will no be displayed above the auxiliary
hoist icon.
Displays during crane operation
The following information is constantly displayed in addition
to the displays of the rigging mode:
The current overall height
Overall height = vertical distance between the lower edge of
the outrigger pad and the highest point of the main boom or
lattice extension. The displayed value (Figure 4-67) applies
to fully extended outrigger cylinders on the largest outrigger
span.
The value is displayed either in meters (m) or in feet (ft),
depending on the setting.
Symbol (1):
must be shown in green if the load is to be
controlled with the main hoist.
Symbol (2):
must be shown in green if the load is to be
controlled with the auxiliary hoist.
8849-49
FIGURE 4-64
1
8882-28a
2
WARNING
Overload Hazard!
When operating the crane with two hoists reeved, ensure
that the hoist in use is identified in the RCL configuration.
Failure to do so may result in overload of the hoist line or
crane. Death or Serious Injury could occur.
