Switch on automatic mode
• Select and confirm the symbol (3, Figure 6-37).
Execute automatic mode
• To swing, move the control lever in the displayed
direction (1) or (2) – the automatic mode starts.
- The superstructure turns into position (A).
- The lifting cylinders are extended (B).
• Release the control lever.
• To swing, move the control lever in the displayed
direction (1, Figure 6-38) or (2) – the automatic mode
continues.
- The superstructure turns into position (C).
- The lifting cylinders are retracted (D).
• Release the control lever.
Cancel automatic mode
You can cancel the automatic mode any time.
Press in the override button (1, Figure 6-39) – the automatic
mode is canceled.
If you have canceled the automatic operation, then you must:

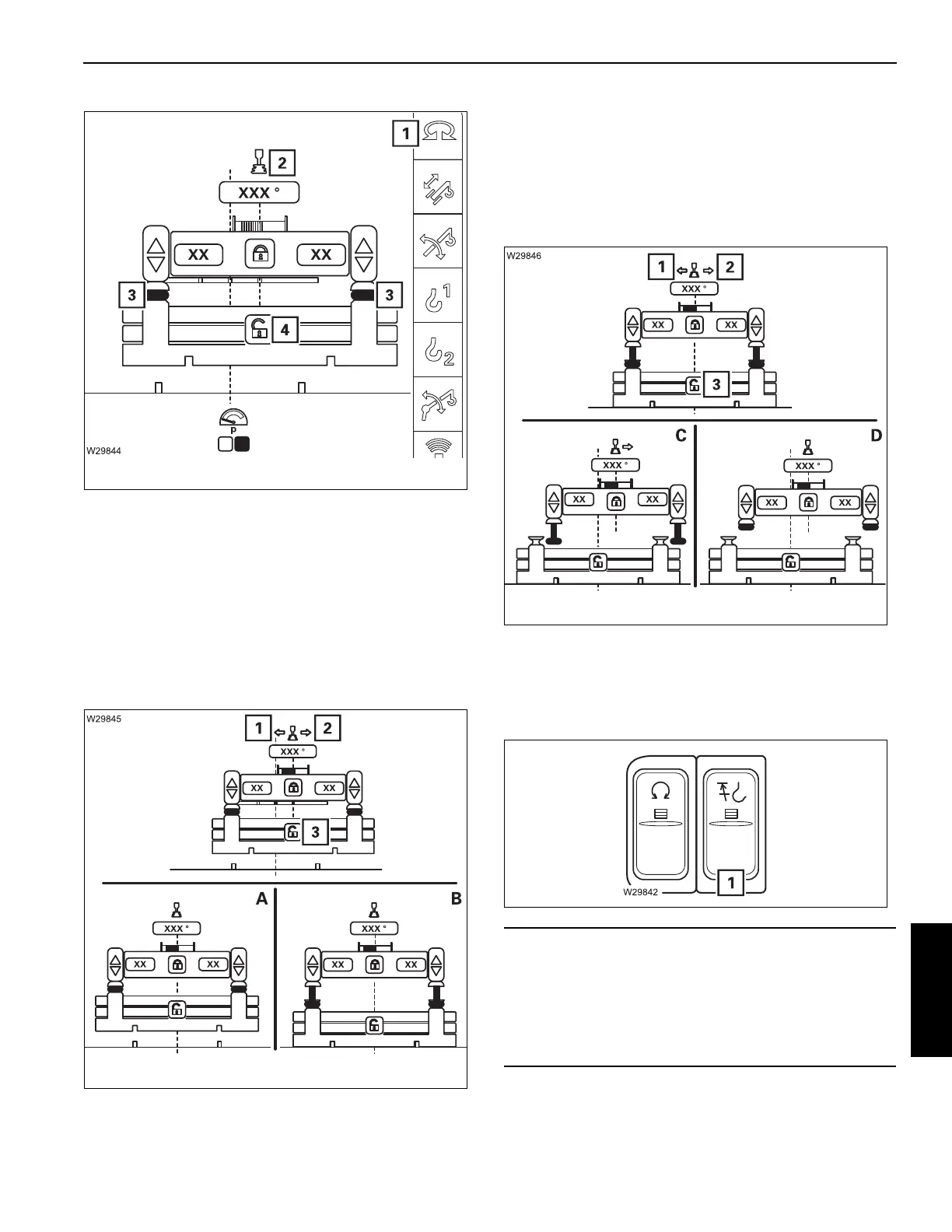

FIGURE 6-36
8851-13
FIGURE 6-37
8851-14
CAUTION
Machine Damage!
With the override switch actuated, the functions are
always enabled.
Swing the superstructure only when the lifting cylinders
are fully retracted.
FIGURE 6-38
8851-15
FIGURE 6-39
8851-16
