SET-UP AND INSTALLATION TMS9000-2 OPERATOR MANUAL
6-74
Published 02-21-2019, Control # 611-05
5. Select pin #1, unlock (Figure 6-147).
6. The icons turn green, verifying pin #1 is unlocked
(Figure 6-148).
NOTE: Pin #1 will not unlock if pin #2 is unlocked.
7. Verify pin #1 is unlocked (1, Figure 6-149).
8. On the CCS display select pin #2, unlock (Figure 6-150).

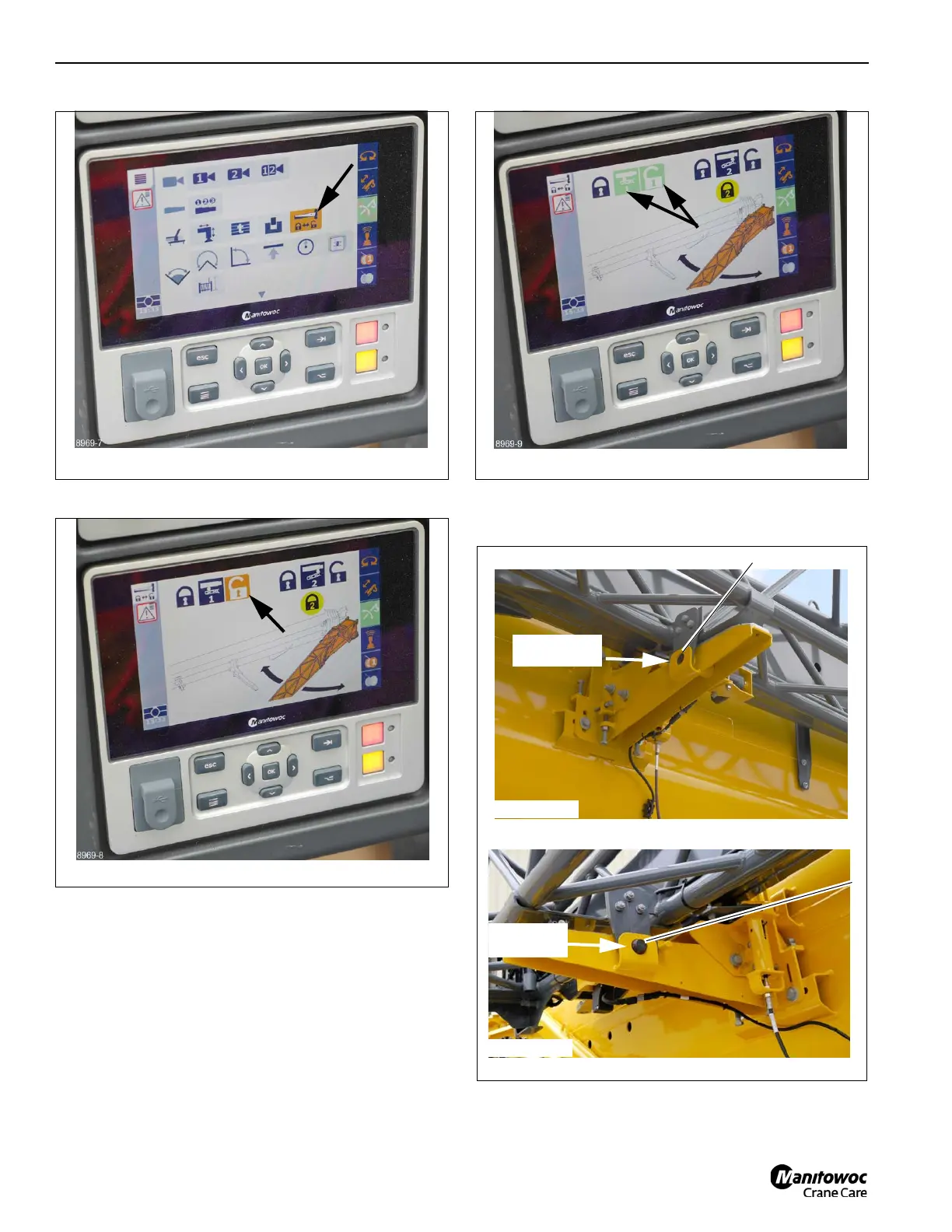

FIGURE 6-146
8969-7
FIGURE 6-147
8969-8
FIGURE 6-148
8969-9
FIGURE 6-149
8969-10
1
Design A
9728-5
Design B
Shown
Locked
Shown
Unlocked
1
