Drawbar Positions for PTO Operation
When using power takeoff driven equipment (which would normally require an equal angle hitch drawbar
extension) the drawbar can be installed in two different fore/aft positions (‘A’ for 540 rpm or ‘B’ for 1000 rpm).
Positions ‘C’ and ‘D’ must not be used for power takeoff operation.

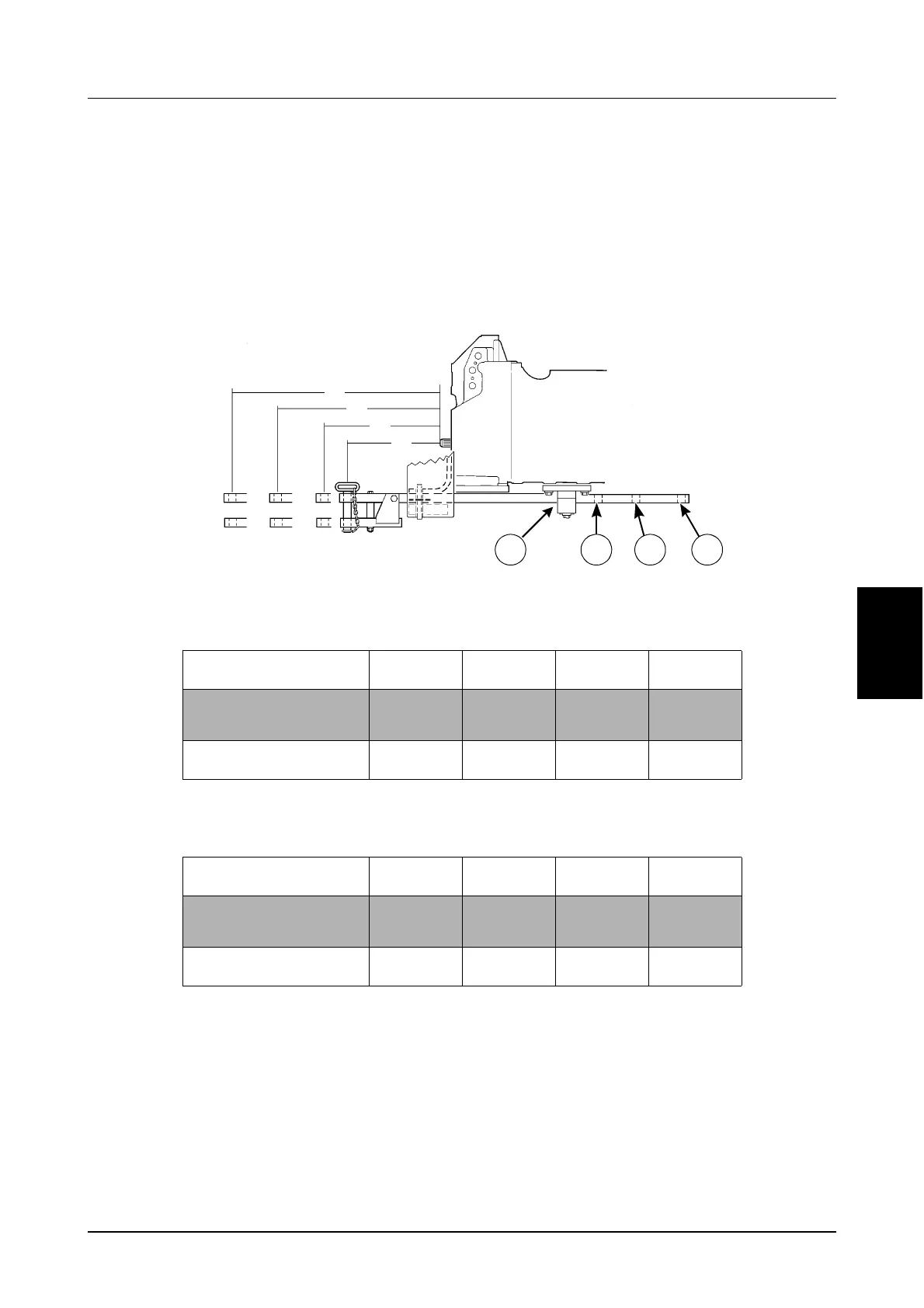

Refer to the illustration and charts below for the drawbar positions and the vertical loads permitted in those
positions. Also refer to the implement operators manual before making any adjustments.
NOTE: For non-PTO work, the drawbar can be set in any of the fore/aft positions, depending on maximum
vertical load required.
DH98J012
North American Tractors
Rest Of World Tractors
D*
C
B
A
DCBA
DRAWBAR POSITIONS
A
(540 rpm)
B
(1000 rpm)
CD
DIMENSION FROM END OF
PTO SHAFT TO CENTRE OF
HITCH PIN HOLE
350 mm
(13.8 in)
400 mm
(15.7 in)
500 mm
(19.7 in)
600 mm
(23.6 in)
MAXIMUM STATIC
VERTICAL LOAD
2146 kg
(4731 lb)
1803 kg
(3975 lb)
1366 kg
(3011 lb)
1100 kg
(2425 lb)
DRAWBAR POSITIONS
A
(540 rpm)
B
(1000 rpm)
CD
DIMENSION FROM END OF
PTO SHAFT TO CENTRE OF
HITCH PIN HOLE
400 mm
(15.7 in)
450 mm
(17.7 in)
550 mm
(21.7 in)
650 mm
(25.6in)
MAXIMUM STATIC
VERTICAL LOAD
1800 kg
(3970 lb)
1509 kg
(3327 lb)
1140 kg
(2513 lb)
916 kg
(2020 lb)
