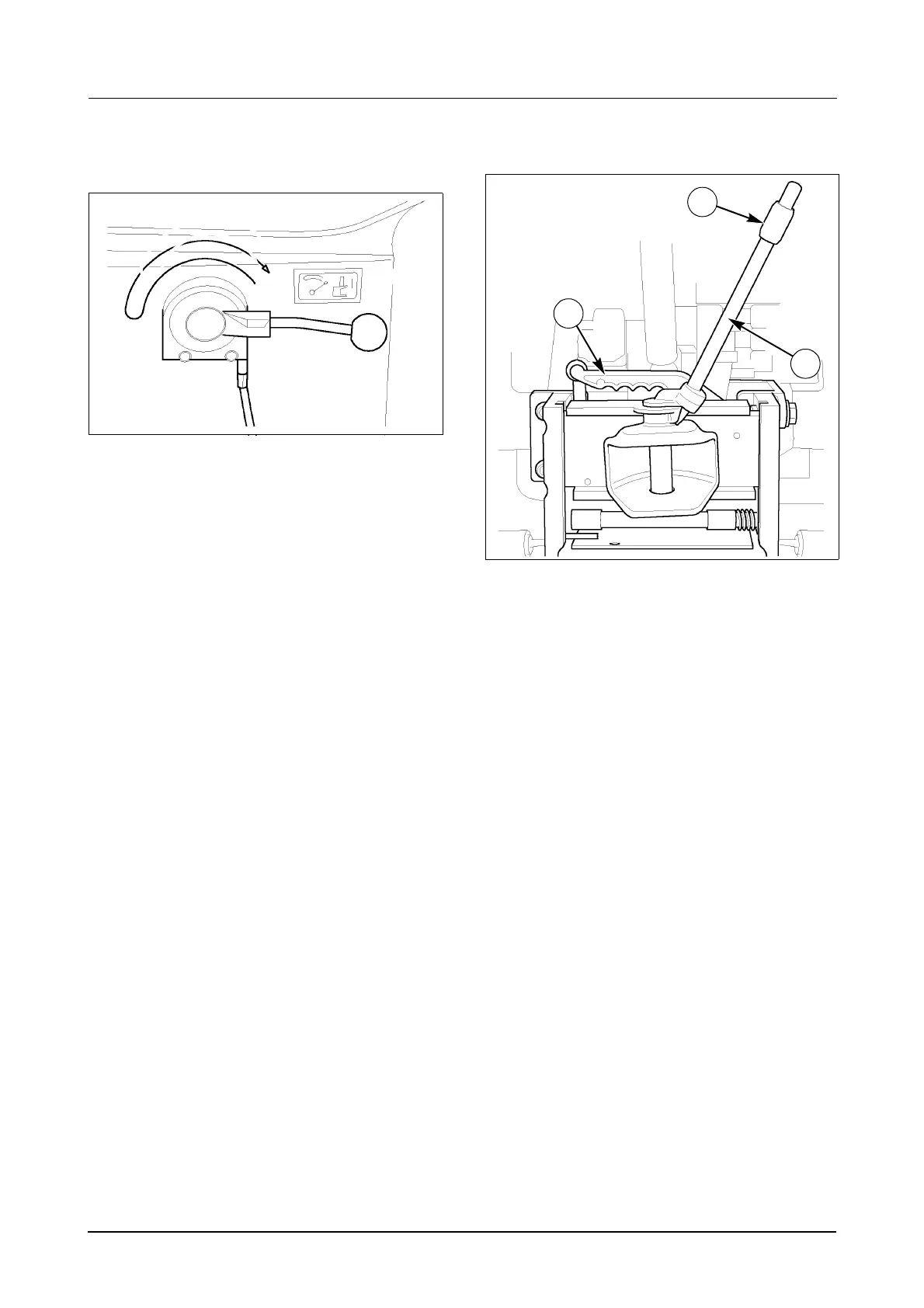

Auto Clevis Internal Hitch Release
(If Equipped)
MI03A060
This control enables the operator to disconnect the
implement towing eye without leaving the tractor.
To operate, pull the lever to unlock and then rotate
the lever 180 degrees. The implement connecting
pin will disengage from the trailer towing eye.
The hitch release lever will automatically return to
the locked position. If the release lever does not
return and lock, adjust the nut (6) as required.
Manual Clevis - Type A
MI03H127
To adjust the height, support the weight of the hitch
coupling assembly with one hand and with the
other hand pull the release lever (1) to the right.
Move the hitch coupling assembly to the required
position. Push the release lever to the left and
down to lock in position.
IMPORTANT: Check that the locking pins have
fully engaged in the holes in the side support
(locking pins level with the outer surface).
To remove the hitch pin (2), pull the release latch
sleeve (3) up. Make sure the latch sleeve is fully
engaged after installing the hitch pin.
1
2
3
