Operation
105
5

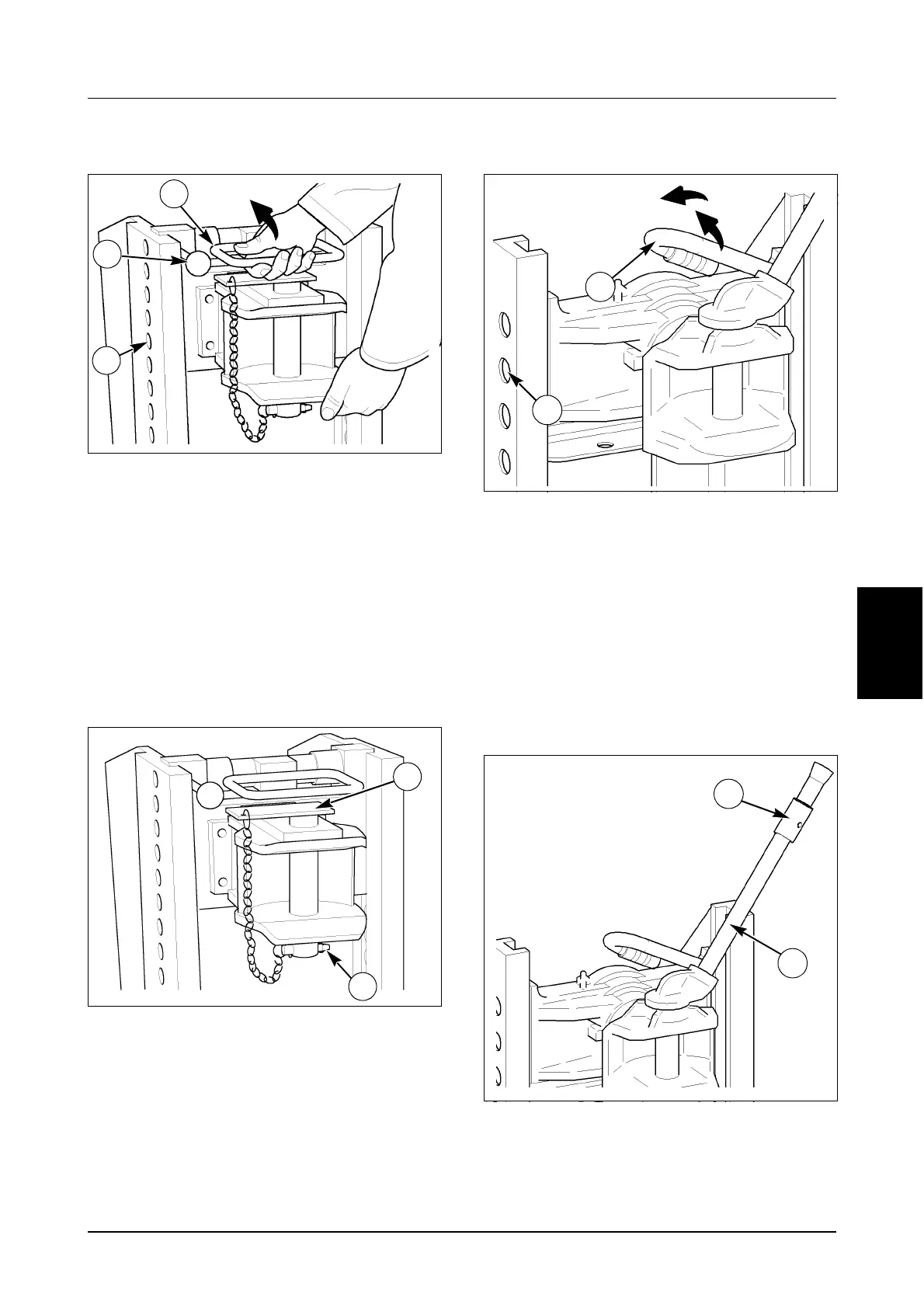

Manual Clevis - Type B
MI01F067
To adjust the height, pull the release knob (1) out.
Raise the handle (2) and while supporting the
weight of the coupling assembly with the other
hand, raise or lower the assembly to the required
position.
Lower the handle (2), the release knob (1) will
spring back to lock hitch coupler assembly into
position.
IMPORTANT: Check that the locking pins (3)
have fully engaged in the holes in the side
support (locking pins level with the outer
surface).
MI01F066
To connect an implement/trailer, Remove the spring
clip (4) and hitch pin (5).
Enter the implement/trailer towing eye into the
clevis, install the hitch pin (5) to secure the
implement/trailer. Install the spring clip (4).
Manual Clevis - Type C
MI05J072A
To adjust the height, support the weight of the hitch
coupling assembly with one hand and with the other
hand raise the quick release lever (1) then rotate to
the left.
Move the hitch coupling assembly to the required
position. Release the quick release lever (1) to lock
the coupling assembly in position.
IMPORTANT: Check that the locking pins (4)
have fully engaged in the holes in the side
support (locking pins level with the outer
surface).
MI05J072B
To remove the hitch pin (2), pull the release latch
sleeve (3) up. Make sure the latch sleeve is fully
engaged after installing the hitch pin.
1
2
3
4
5
1
4
2
3
