Piton- Fixe (If Equipped)

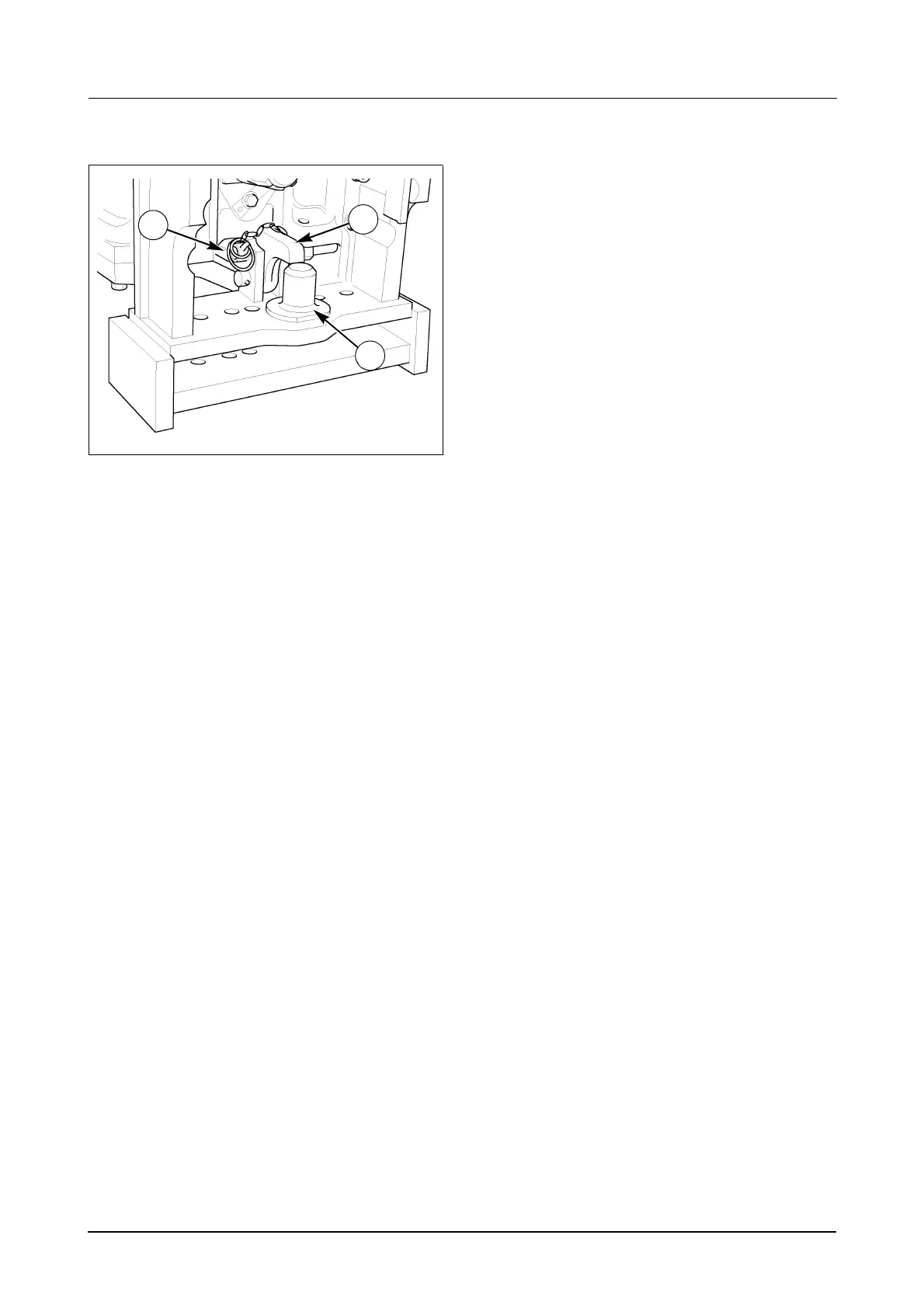

MI02H045
To connect an implement/trailer, Remove the spring
clip and pin (1) and lift the retaining hook (2).
Install the implement towing eye over the towing pin
(3) and lower the retaining hook (2).
Install the pin and spring clip (1).
To connect an implement/trailer, Remove the spring
clip and pin (1) and lift the retaining hook (2).
Install the implement towing eye over the towing pin
(3) and lower the retaining hook (2).
Install the pin and spring clip (1).
IMPORTANT: Maximum vertical load capacity
is 3000 kg (6613 lb) depending upon the
capacity of the rear tyres fitted. Where
applicable refer to your approval
documentation.
