Operation
120

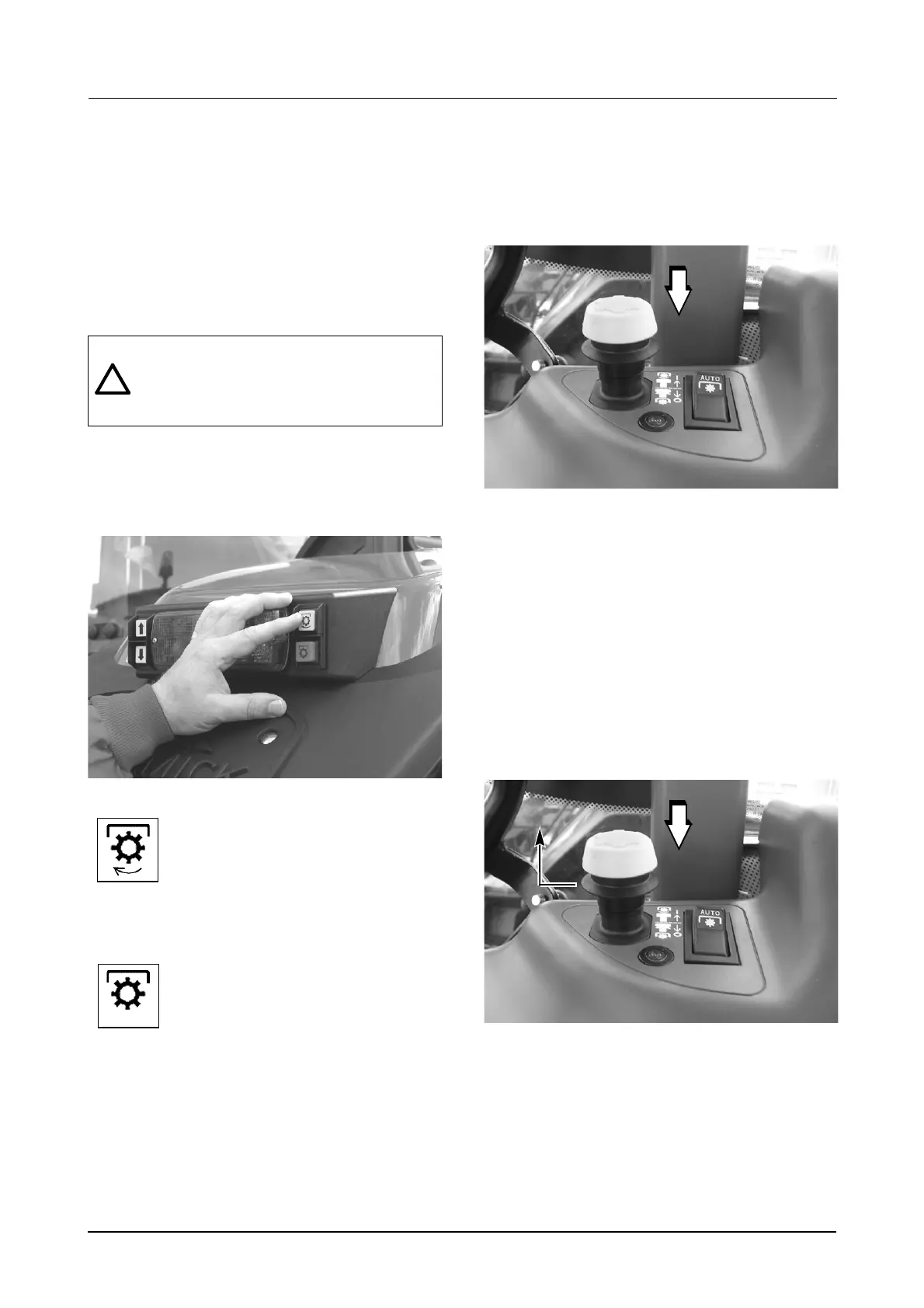

External PTO Controls
(Rear Fender Remote PTO, If Equipped)
With the tractor stationary, the operator can leave
the cab and use the remote push button switch to
turn the PTO ON/OFF.
Remote control of the PTO is independent of the
internal cab controls and the Operator Presence
Switch.
Engaging/Disengaging the PTO Using External
Controls:
NOTE: The tractor must be stationary for the
remote push buttons to operate.
MD04G022
NOTE: If the push button is released before the 3
second period the PTO will disengage.
NOTE: With the PTO engaged and the tractor in
motion, if either of the external PTO push buttons are
operated the PTO will immediately disengage.
To reset the PTO push the internal PTO ON/OFF
switch down to disengage and then re-engage the
PTO.
To reset the external remote PTO controls it will be
necessary to turn the keyswitch to OFF then restart
the tractor.
Disengaging the PTO from inside the cab after
being engaged using the external controls:
MD05M021
Push the yellow dome on the ON/OFF switch down
to disengage the PTO. The PTO indicator lamp will
turn off.
Re-engaging the PTO from inside the cab after
being engaged from inside the cab and then
disengaged using the external controls:
The PTO ON/OFF switch will be in the ON position
(switch fully raised) but the PTO shaft is stationary
(due to being switched OFF by the external
controls). The PTO indicator lamp on the right hand
console will be flashing.
MD05M021
Push the ON/OFF switch fully down. The PTO
indicator lamp will turn off.
Lift the locking collar on the ON/OFF switch and
pull the switch up to the ON position. The switch will
stay in the ON position and the PTO indicator lamp
will illuminate to indicate the PTO shaft is rotating.
WARNING: Stand well clear of the PTO
shaft when operating the external PTO
controls or injury can result from contact
with moving parts.
Press and hold the yellow ON push
button for 3 seconds.
The PTO indicator lamp on the right
hand console will illuminate.
Press the red OFF push button to
immediately disengage the PTO.
The PTO indicator lamp on the right
hand console will turn off.
OFF
ON
OFF
To Next Page
