Operation
138

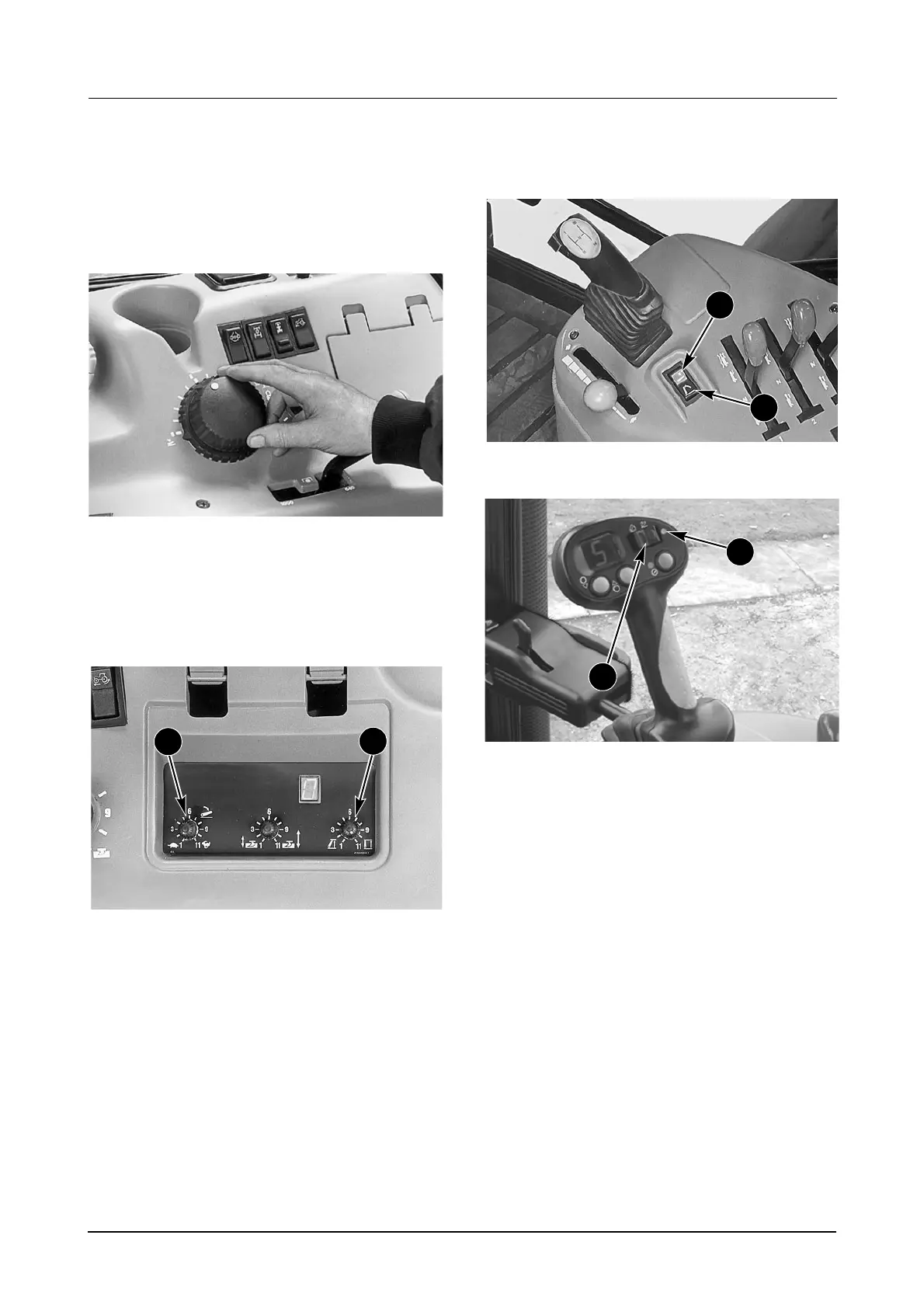

OPERATING IN POSITION CONTROL
The tractor and implement must be operated in
the field to select the correct position of the hitch.
Do the following steps:
STEP 1
DP96J411
Before moving the tractor, set the POSITION
CONTROL KNOB to the transport lock position,
fully clockwise and turn the load control knob fully
clockwise to the (O) off position.
STEP 2
DP96N112
Set the DROP SPEED CONTROL (1) to setting 6.
Set the UPPER LIMIT CONTROL (2) to setting 1.
STEP 3
DP96H299
TRACTOR EQUIPPED WITH POWERSHIFT TRANSMISSION
MD05M023B
TRACTOR EQUIPPED WITH AUTO SPEED TRANSMISSION
Set the UP/DOWN switch (5) in the DOWN
position. If the enable or reset lamp (4) on the
switch flashes, move the hitch POSITION
CONTROL KNOB to match the actual hitch
position.
1
2
4
5
5
4
