Operation
160
Operating Hydraulic Motors
Connect hydraulic motors to the 1st remote
circuit to make sure of a constant flow of oil to the
motor.
DP96J349

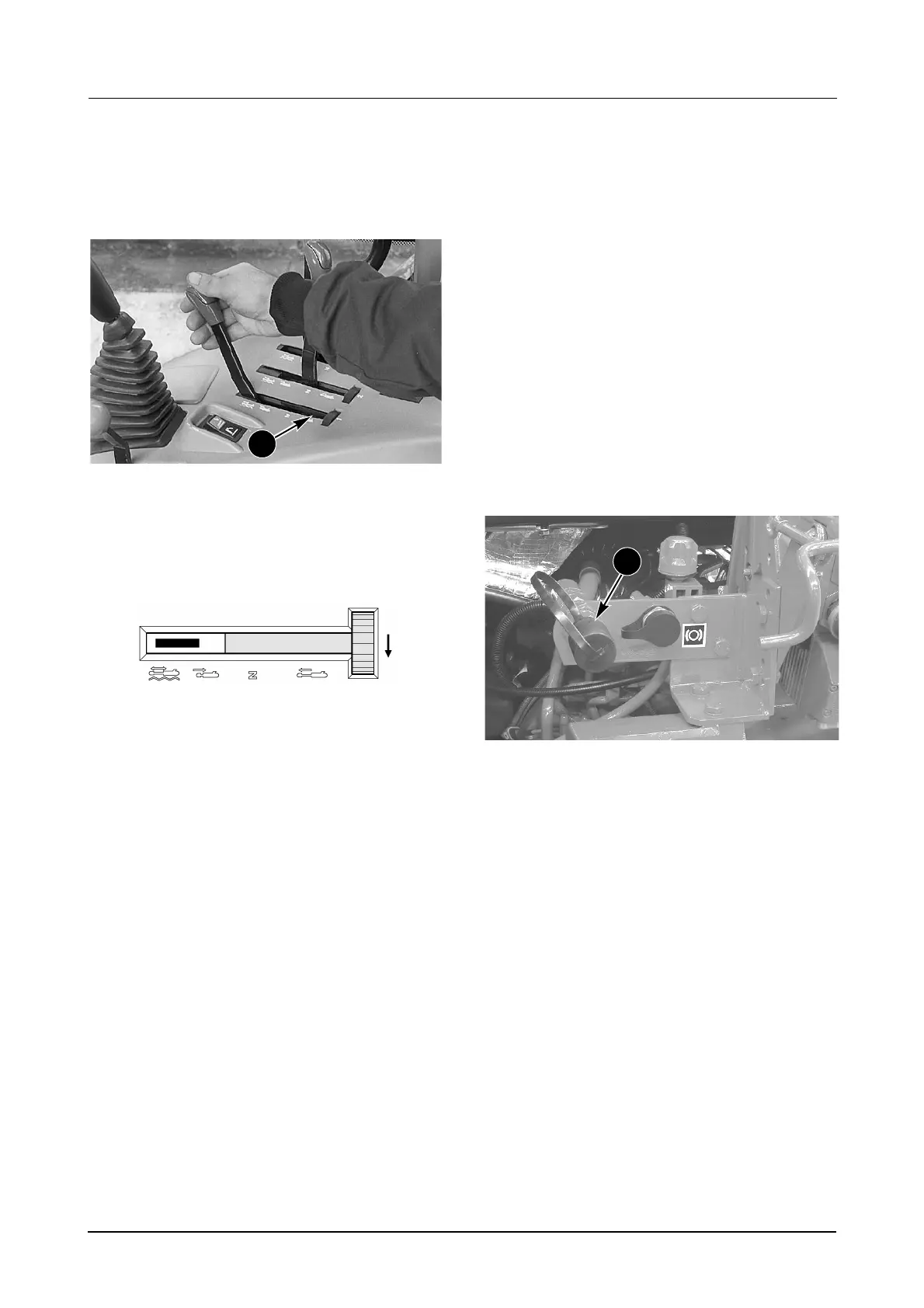

Stop the engine. Move remote control lever
forward to the float position.
Turn the lever lock (1) to restrict the control lever
movement to the retract and float positions.
DI96N026
This will provide two operating positions for the
control lever for the hydraulic motor application
only.
To engage the hydraulic motor, start the engine
and move the control lever rearward from the
float position until against the lever lock. The
hydraulic motor will now operate.
Use the variable flow controls to regulate the
motor speed, see page 159 - Variable Flow
Controls for instruction on how to adjust the flow
rate.
To disengage the hydraulic motor, move the
remote control lever forward to the float position.
This will allow the hydraulic motor to slow down
before stopping.
DO NOT DISENGAGE THE LEVER LOCK.
Allowing the control lever to return to the neutral
position during motor application will cause the
motor to stop immediately. This will cause
damage to the hydraulic motor, hoses and
equipment.
To change the direction of rotation of the
hydraulic motor, change the hoses over on
number 1 remote coupler.
NOTE: It is recommended when operating
hydraulic motors that your tractor is equipped with a
Hydraulic Motor Return Circuit.
Hydraulic Motor Return Circuit
(If Equipped)
MD03A010
The hydraulic motor return circuit can be used to
reduce restriction in the remote hydraulic motor
return line. This will result in more efficient
hydraulic motor operation.
To use the hydraulic motor return circuit, connect
the return line from the hydraulic motor or
implement to the connector (1).
1
1
