Routine Maintenance
222

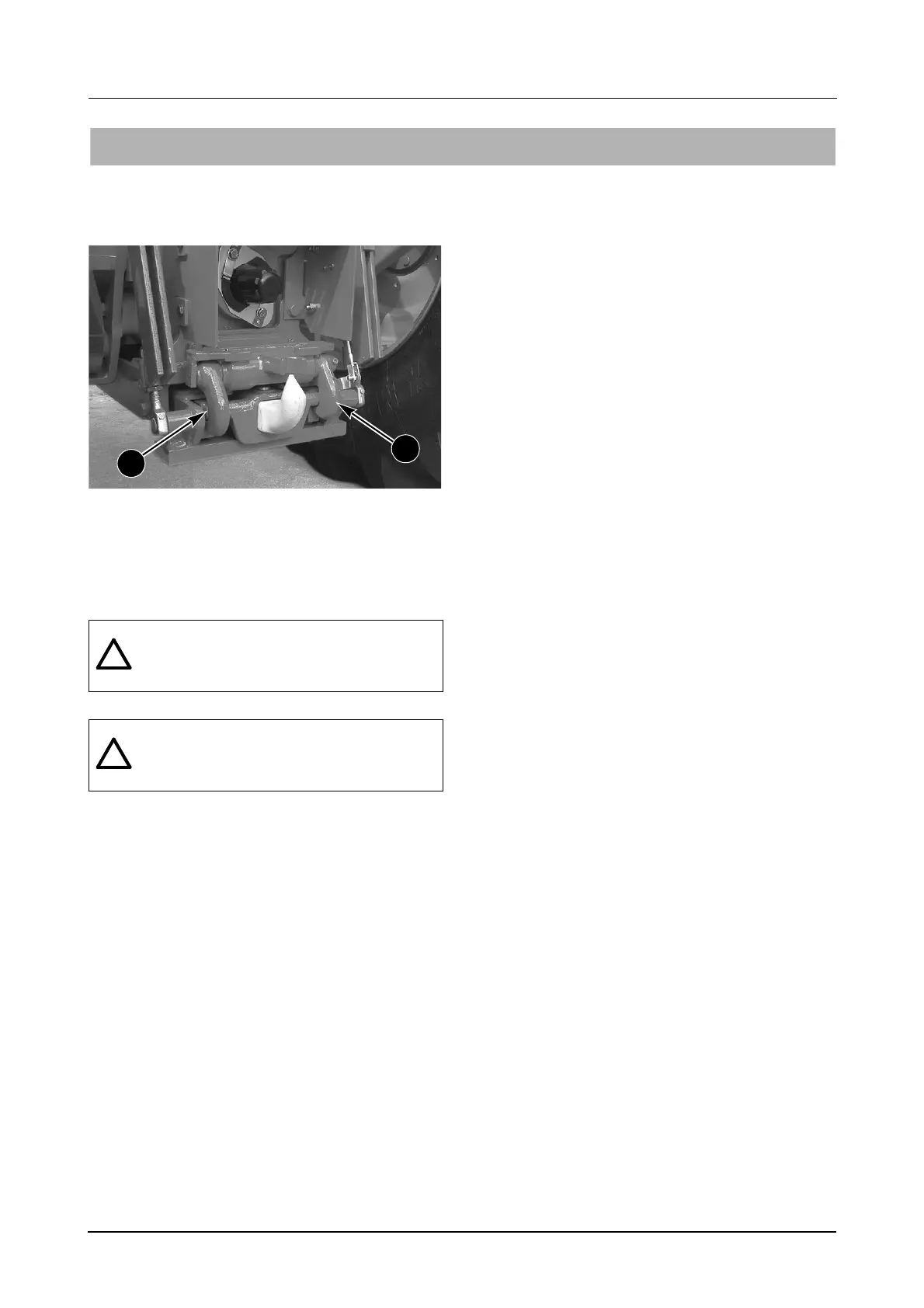

Check/Adjust Auto Hitch
(If Equipped)
MD04G044
As necessary or at least every 500 hours check
the operation of the auto hitch and make sure the
locking latches (1) engage and the hitch is
operating correctly.
If the locking latches do not engage correctly the
cable and/or the lift rods may need adjustment.
See your dealer to allow for necessary
adjustments to be carried out.
Check Function of the Operator
Presence Switch
Check the switch for correct function every 500
hours of operation or at least once annually.
When doing the following checks, do so in a clear
open area with no other persons or objects near
the tractor:
STEP 1
While sitting on the operator’s seat, with the
engine running at low idle speed, and the F-N-R
lever in NEUTRAL, put the transmission into 1st
range and release the clutch pedal. Stand up out
of the operator’s seat while holding onto the
steering wheel and move the F-N-R lever from
NEUTRAL to either FORWARD or REVERSE.
The Neutral indicator “N” light will illuminate. The
tractor should not move. If the tractor moves
under power, see your dealer for repair.
STEP 2
While sitting on the operator’s seat, with the
engine running at low idle speed, put the F-N-R
lever in FORWARD, the transmission in 1st range
and release the clutch pedal to start the tractor
moving. Stand up out of the operator’s seat while
holding onto the steering wheel, and move the F-
N-R lever out of the FORWARD position into the
REVERSE position. The Neutral indicator “N”
light should illuminate. The tractor should stop
(default to Neutral). If the tractor does not default
to Neutral, see your dealer immediately for
repair.
IMPORTANT:
If the operator presence switch
circuit is bypassed, the electronic system will
sense the change and the master warning lamp
will illuminate.
500 HOUR SERVICE
WARNING: When checking the operation
of the auto hitch, stay well clear of moving
parts or injury can result.
WARNING: Never operate the engine in a
closed building. Proper ventilation is
required under all circumstances.
