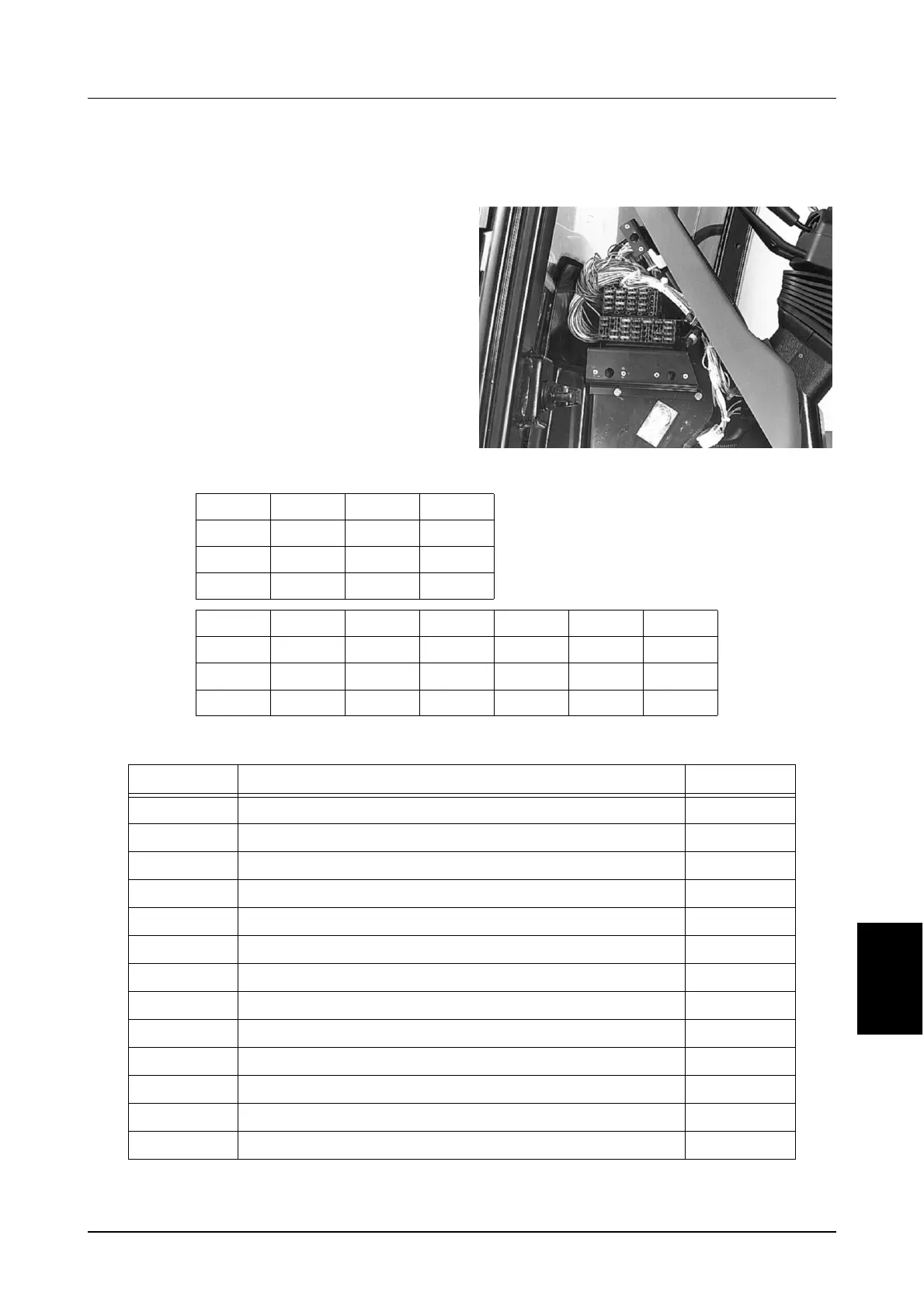

FUSE LOCATION AND IDENTIFICATION
(North American Tractors)
NOTE: Locations 9, 10 and 32 are mini circuit breakers, which will reset automatically.
The fuses give protection to the electrical circuits of
t
he tractor and cab.
o service the fuses remove the left hand side panel
rom the front console. To replace a fuse, pull the
use out of the clips and push a new fuse in.
MPORTANT: Make sure the new fuse has the
ame ampere rating as the fuse being
eplaced.
RP95F10
Fuse No Circuit Amps
1 HORN, BEACON LIGHT 20
2 FRONT LOWER CAB AND FRONT GRILLE WORK LIGHTS 25
3 REAR CAB ROOF WORK LIGHTS 25
4 REAR FENDER WORK LIGHTS 15
5 FORWARD/NEUTRAL/REVERSE SWITCH 10
6OPEN -------
7OPEN -------
8 LOADER CONTROL 15
9 LEFT HAND GRILLE HEADLIGHTS - LOW BEAM (CIRCUIT BREAKER) 10
10 RIGHT HAND GRILLE HEADLIGHTS - LOW BEAM (CIRCUIT BREAKER) 10
11 OPEN -------
12 LEFT HAND GRILLE HEADLIGHTS - HIGH BEAM 10
13 RIGHT HAND GRILLE HEADLIGHTS - HIGH BEAM 10
41 42 43 44
37 38 39 40
33 34 35 36
29 30 31 32
22 23 24 25 26 27 28
15 16 17 18 19 20 21
8 9 10 11 12 13 14
1234567
