Electrical System
245
8

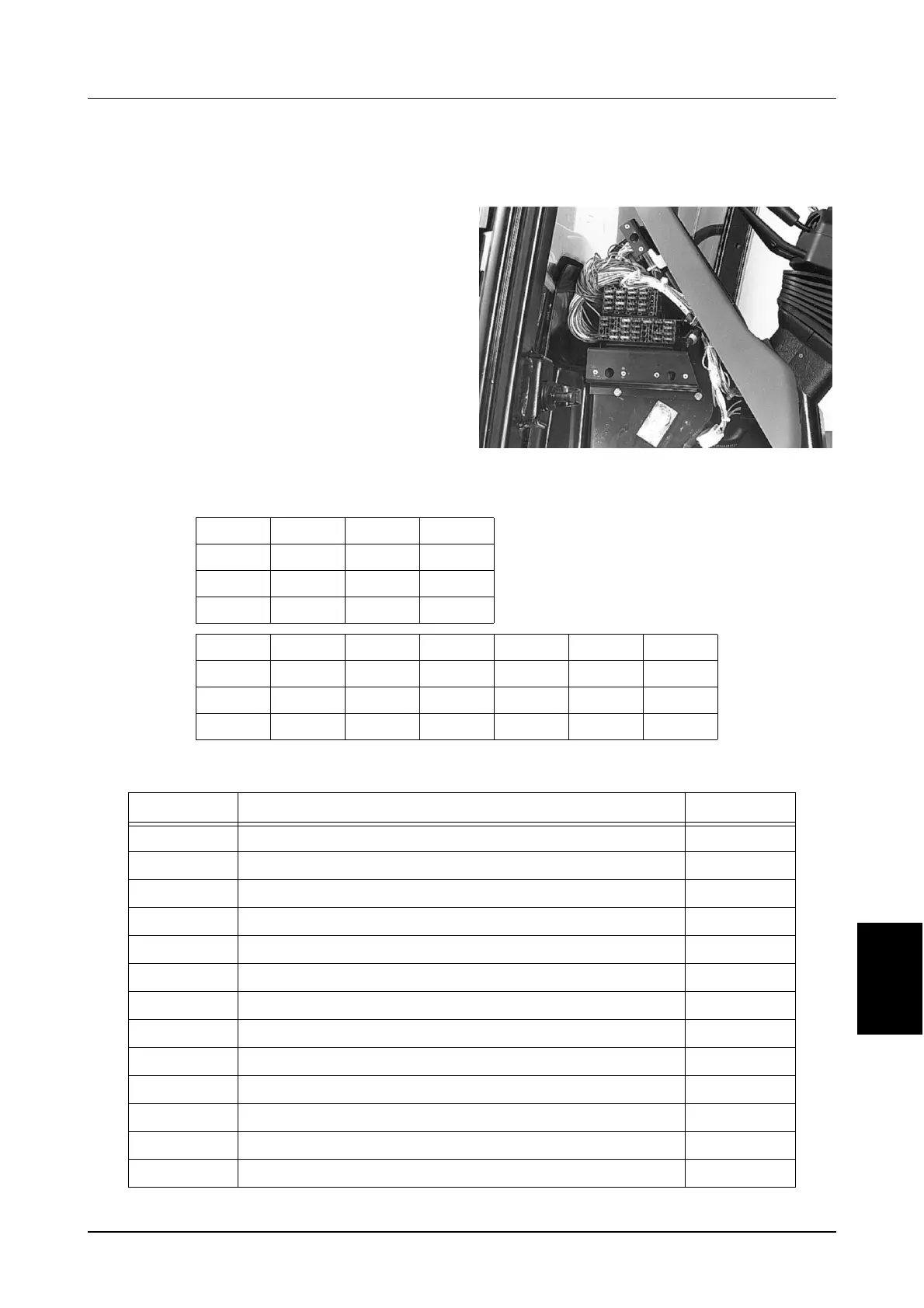

FUSE LOCATION AND IDENTIFICATION
(Rest Of World Tractors)
NOTE: Locations 9, 10 and 32 are mini circuit breakers, which will reset automatically.
The fuses give protection to the electrical circuits of
t
he tractor and cab.
T
o service the fuses remove the left hand side panel
f
rom the front console. To replace a fuse, pull the
f
use out of the clips and push a new fuse in.
I
MPORTANT: Make sure the new fuse has the
s
ame ampere rating as the fuse being
r
eplaced.
RP95F10
0
41 42 43 44
37 38 39 40
33 34 35 36
29 30 31 32
22 23 24 25 26 27 28
15 16 17 18 19 20 21
8 9 10 11 12 13 14
1234567
Fuse No Circuit Amps
1 HORN, BEACON LIGHT 20
2 FRONT LOWER CAB AND FRONT GRILLE WORK LIGHTS 25
3 REAR CAB ROOF WORK LIGHTS 25
4 REAR FENDER WORK LIGHTS 15
5 FORWARD/NEUTRAL/REVERSE SWITCH 10
6 LEFT HAND SIDE/TAIL LIGHTS 10
7 RIGHT HAND SIDE/TAIL LIGHTS 10
8 LOADER CONTROL 15
9 LEFT HAND GRILLE HEADLIGHTS - LOW BEAM (CIRCUIT BREAKER) 10
10 RIGHT HAND GRILLE HEADLIGHTS - LOW BEAM (CIRCUIT BREAKER) 10
11 REAR FOG LIGHT 10
12 LEFT HAND GRILLE HEADLIGHTS - HIGH BEAM 10
13 RIGHT HAND GRILLE HEADLIGHTS - HIGH BEAM 10
