Operation
II

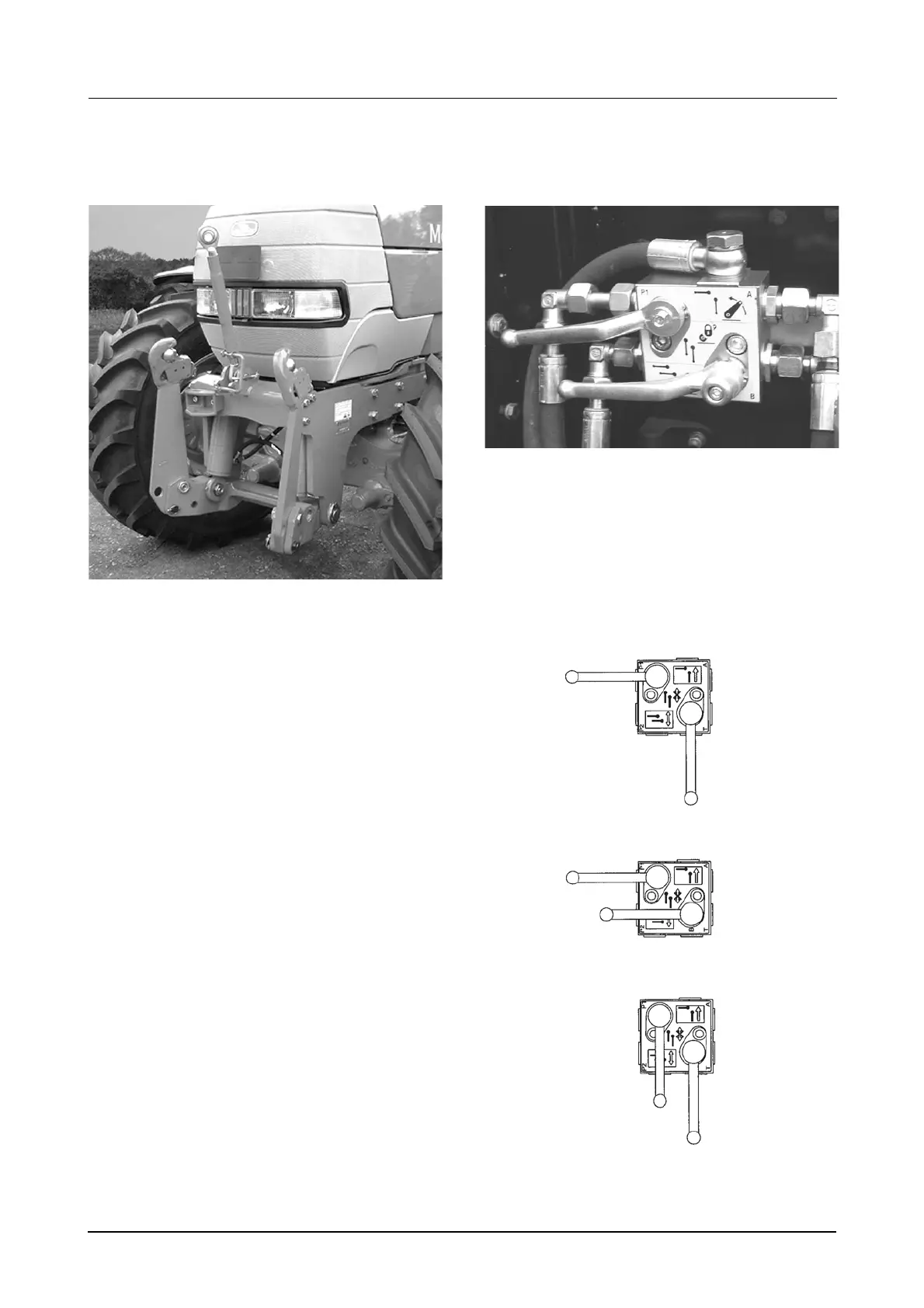

FRONT HITCH (If Equipped)
Hitch System
MD05F065
The front hitch is operated via the tractors remote
hydraulic valve circuit and is double acting, (the
linkage is power lifted and power lowered).
The hitch is designed for Category IIIN
implements. The lower links have claw ends and
the top link a ball end.
Maximum Lift Capacity,
(at 610 mm in front of lift point................3500 kg
(7716 lb)
IMPORTANT: Do not exceed the maximum
permitted front axle operating weight when
using the front hitch, see page 259 for more
information. Observe tyre load capacities and
any possible legal limitations.
Multi Valve
MD04N035
The Multi Valve provides the user with the
possibility to adjust the hitch from double acting to
single acting or to disengage the hitch hydraulically
(ie for transport).
The valve is mounted at the rear of the tractor.
Valve Positions:
L1
L2
D
ouble Acting (Power Lift/Power Lowered)
L1
L2
D
isengaged (Transport)
L1
L2
Single Acting (Power Lift/Weight Lowered)
IMPORTANT: The front hitch is operated using on
e
of the tractors remote valves. In order to use the rea
r
couplers of this valve the front hitch MUST b
e
disengaged as shown.
