Operating Controls
32
Sears Air Suspension Seat
3
4
1
MI03A018A
7
MI03A027A
MI03A034C
MI03A021A
MI03A020A
6
MI03A027A
2
MI03A029A
5
MI03A019A

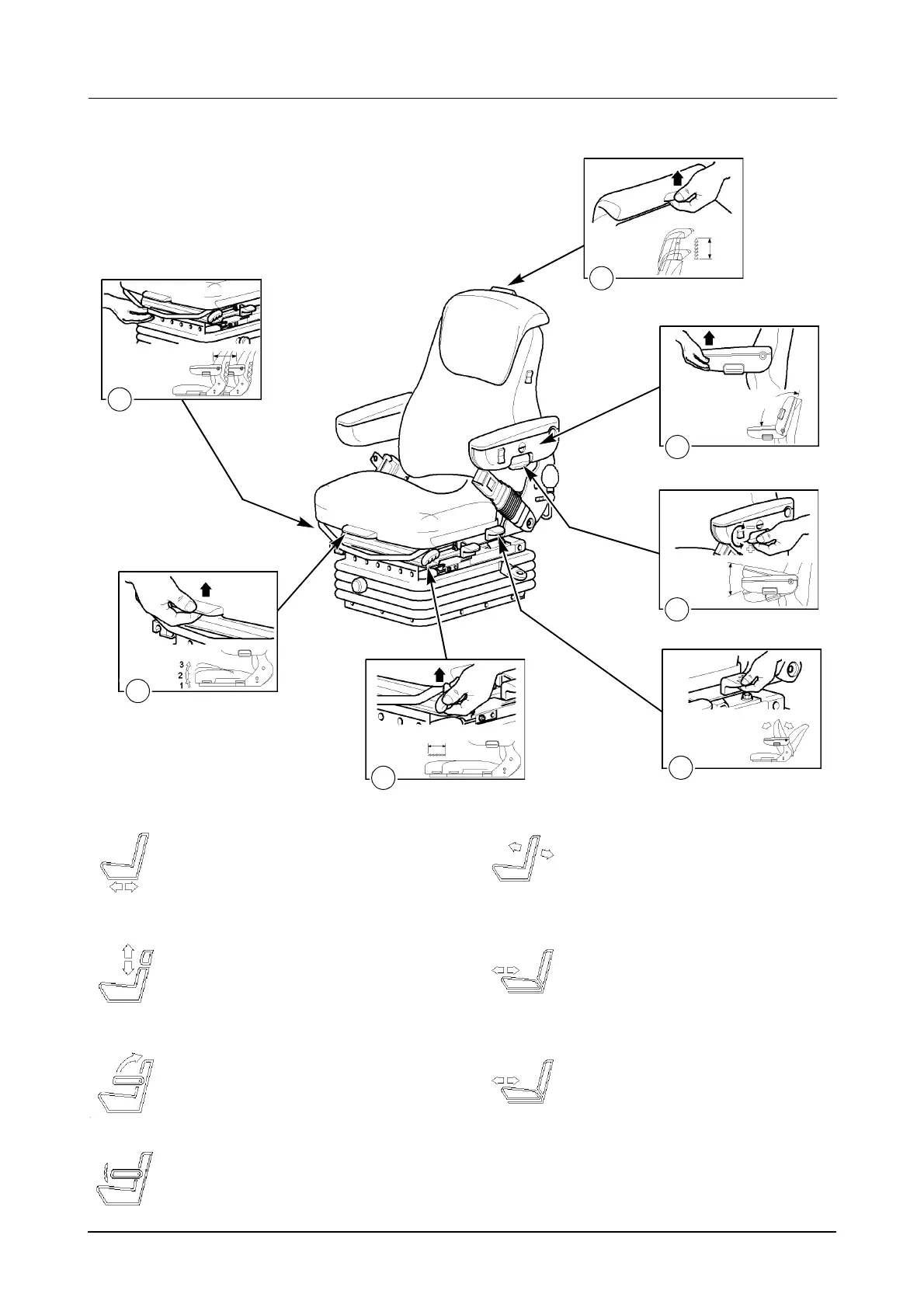

1. FORE/AFT ADJUSTMENT
CONTROL -
Lift lever and adjust as required,
release lever to lock in position.
2. HEAD RESTRAINT HEIGHT
ADJUSTMENT OR REMOVAL -
Lift and pull up or push down to
required height. Pull up past end stop
to remove.
3. ARM RESTS -
Lift up or down.
4. ARM RESTS (FINE ADJUSTMENT) -
Rotate the wheel to adjust the arm
rest for fine adjustment to suit
operator comfort.
5. BACK REST ADJUSTMENT
CONTROL -
Lift control to tilt as required, release
lever to lock in position.
6. CUSHIONFORE/AFT
ADJUSTMENT -
Lift lever to adjust seat cushion fore/
aft position, release lever to lock in
position.
7. CUSHION TILT ADJUSTMENT -
Lift lever to adjust seat cushion tilt
angle.
