Operating Controls
33
3
MI03A034C
9b
MI03A026A
8b
MI03A022A
11
MI03A033A
12
MI03A024A
8a
MI03A022C
10
MI03A035A
9a
MI03A026C

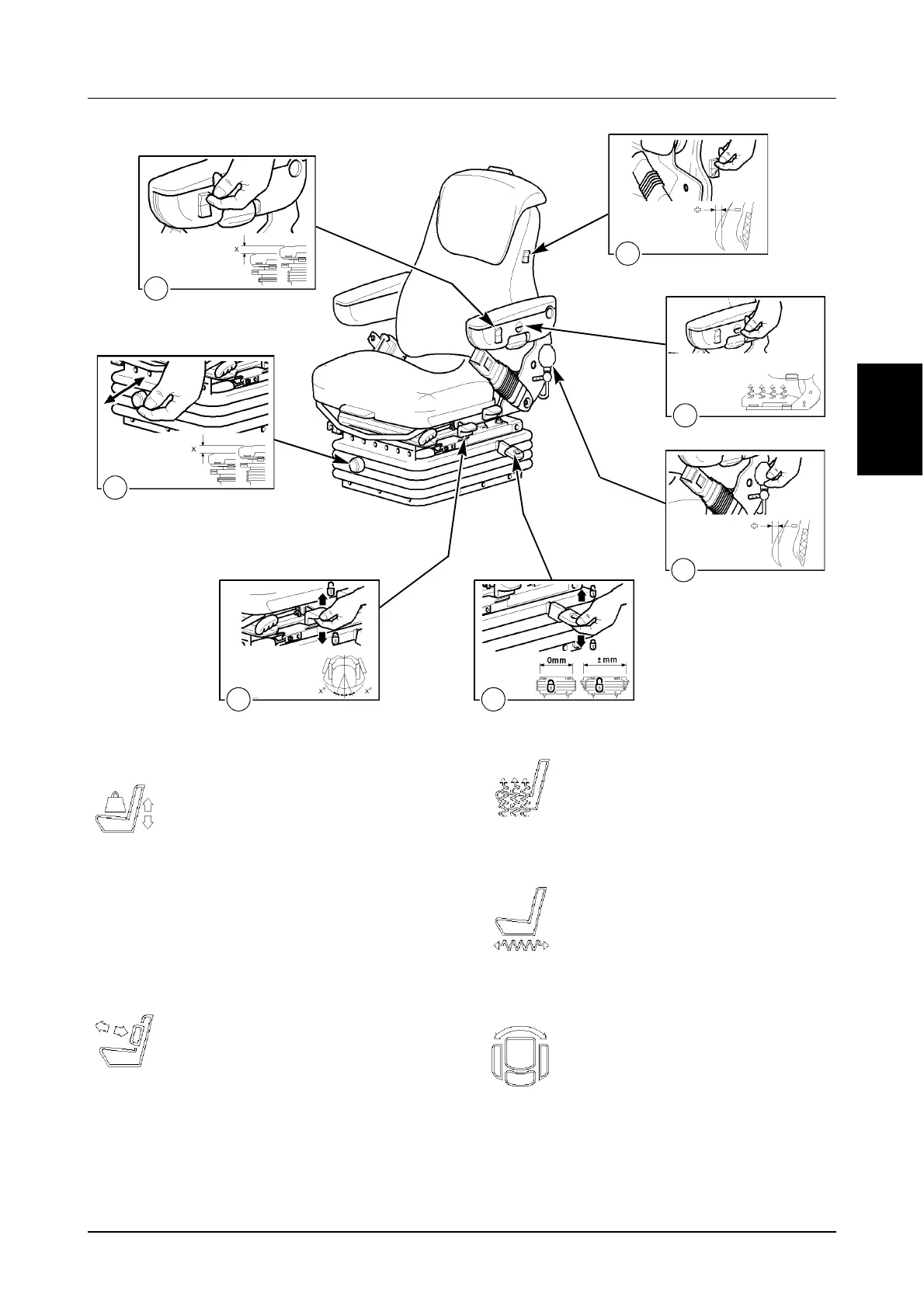

8a.HEIGHT ADJUSTMENT CONTROL -
Push pull the control to raise or lower
as required.
8b.HEIGHT ADJUSTMENT CONTROL
(Deluxe Seat ONLY) -
Press the top of the switch to raise
the seat and the bottom of the switch
to lower.
9a.MANUAL AIR LUMBAR
ADJUSTMENT -
Use the pump to increase or
decrease the lumbar support as
required.
9b.ELECTRIC AIR LUMBAR
ADJUSTMENT (Deluxe Seat ONLY) -
Press the top or bottom of the switch
to increase or decrease the lumbar
support as required.
IMPORTANT: Never operate the
compressor for more than 1 minute.
10.HEATED SEAT CUSHIONS -
Press the switch accordingly to turn
the heater On or OFF as required.
11. FORE/AFT ISOLATOR CONTROL -
With the lever in the raised position
the seat can float a small distance
fore/aft to absorb shocks and reduce
operator fatigue. If the lever is in the
lower position the seat is locked (no
float).
12. SWIVEL ADJUSTMENT CONTROL -
Lift lever and adjust as required.
NOTE: There is no fore/aft
adjustment in the offset positions.
