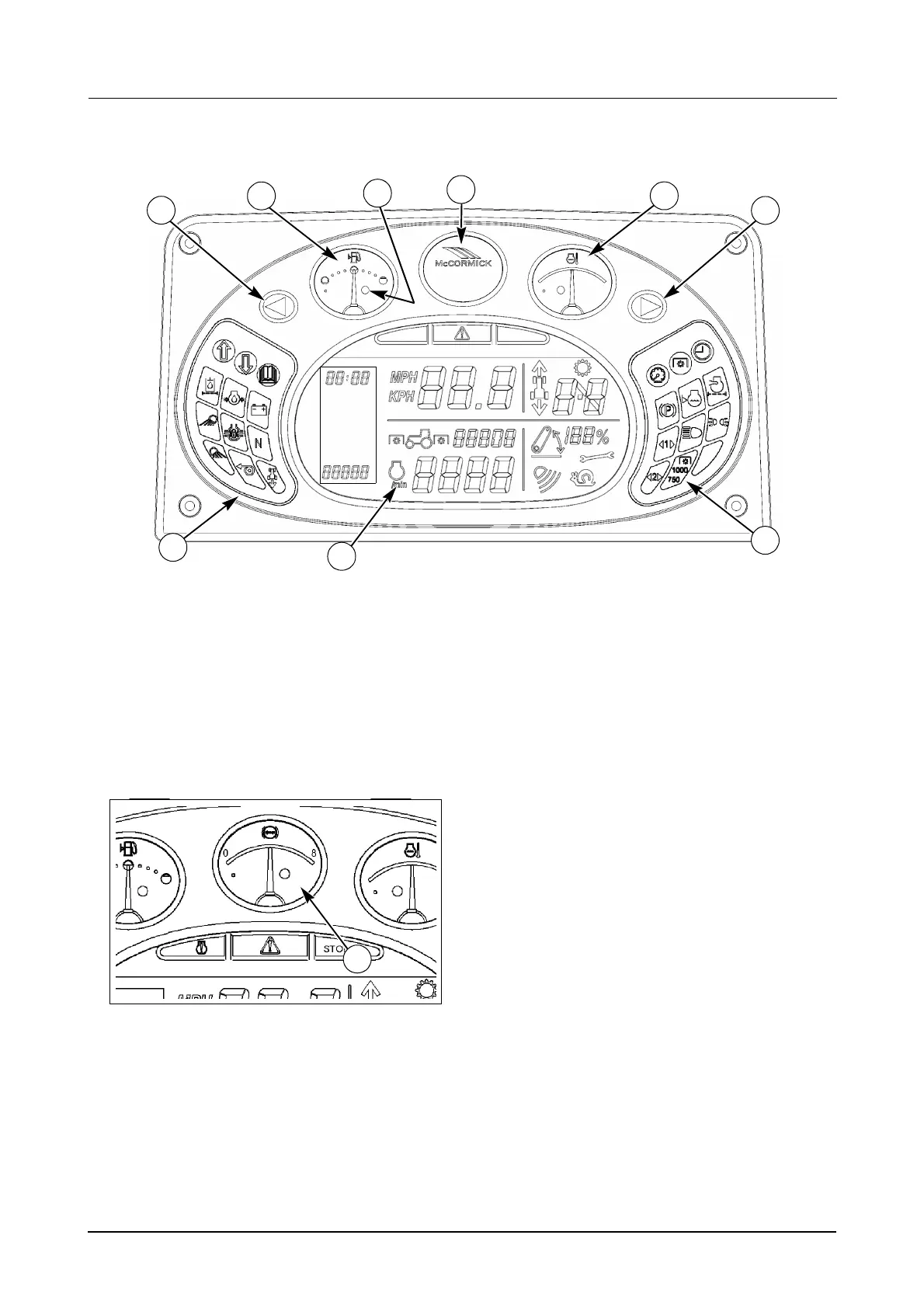

DELUXE (DIGITAL) INSTRUMENT CLUSTER (IF EQUIPPED)
MI03C064
1. FUEL LEVEL GAUGE
1A.LOW FUEL WARNING LAMP
2. McCORMICK LOGO
or
AIR PRESSURE GAUGE (If Equipped) - indi-
cates system pressure for pneumatic trailer
brakes.
MI03D106
3. ENGINE COOLANT TEMPERATURE GAUGE -
Yellow area: low temperature.
Green area: normal working temperature.
Red area: overheating.
IMPORTANT: If the pointer is in the red area, the
master warning lamp will flash. STOP THE
ENGINE AND CHECK THE CAUSE OF
OVERHEATING. Make sure the engine is cool
before starting any inspection.
4. TURN SIGNAL INDICATOR LAMPS
5. INDICATOR LAMPS - see page 58 for details.
6. MAIN DIGITAL DISPLAY - see page 57 for
more details.
