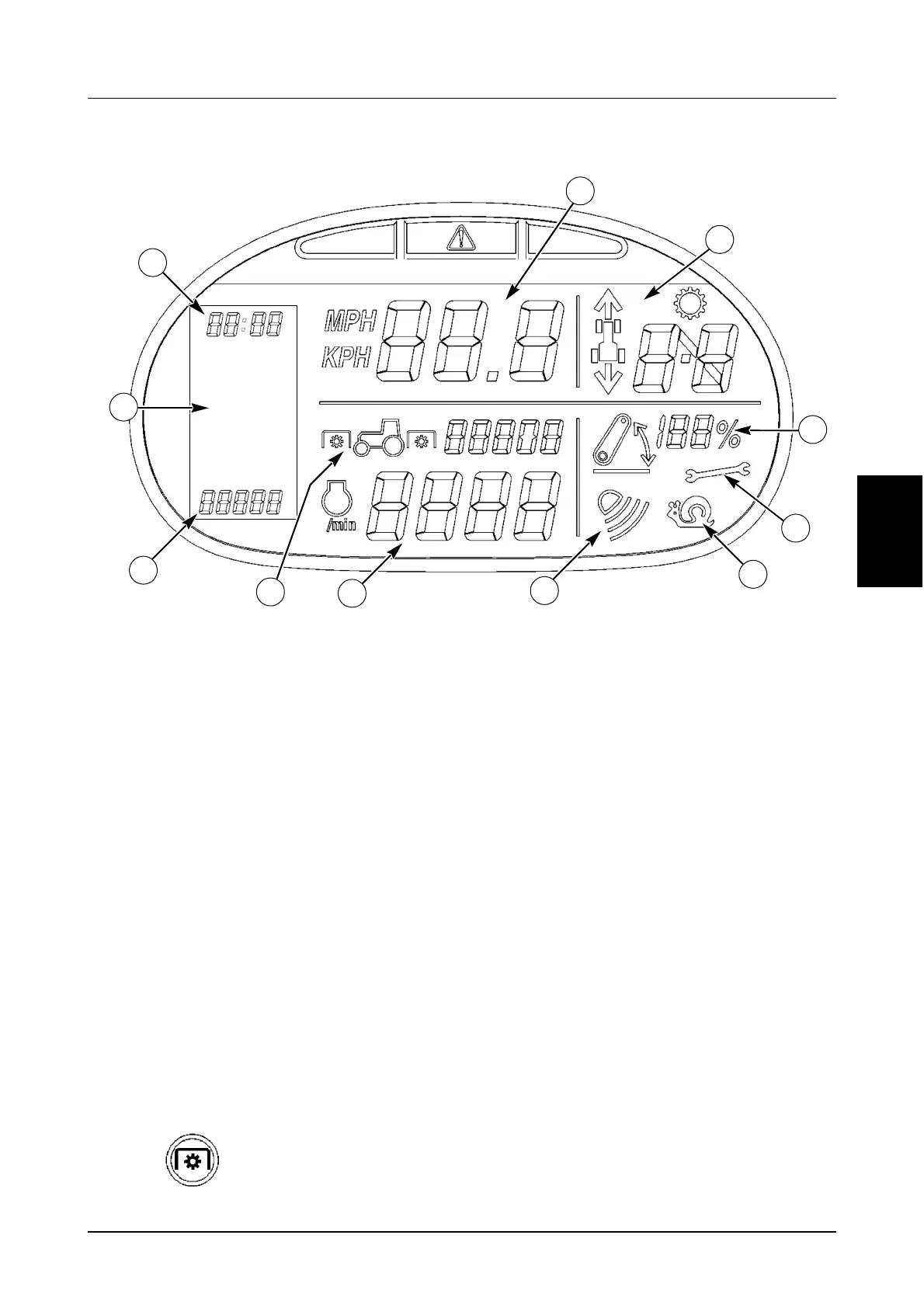

Main Digital Display
MI03C067
1. SPEEDOMETER -
Tractor travel speed in mph or km/h as indicated.
2. TRANSMISSION GEAR/DIRECTION OF
TRAVEL INDICATOR -
Indicates which transmission gear has been
selected and what direction the tractor is
travelling in.
3. HITCH POSITION INDICATOR -
Shows an accurate position of the rear hitch.
4. SERVICE INDICATOR -
Indicates when a maintenance procedure is
required. Refer to the Universal Data Display for
further detail in establishing which service is
required.
5. CREEPER SPEED INDICATOR -
Indicates when Creeper is engaged.
6. TRUE GROUND SPEED SENSOR
INDICATOR -
Refer to main manual for further information.
7. ENGINE RPM/FRONT OR REAR PTO RPM -
Engine or Front/Rear PTO RPM.
8. PTO RPM SELECTION INDICATOR-
Indicates which PTO option has been engaged,
eg. 540 or 1000 rpm.
9. ENGINE HOURMETER -
Shows the total number of engine hours the
tractors has accumulated.
10.CLOCK
11. UNIVERSAL DATA DISPLAY -
This screen provides various menus from
service reminders, tractor performance and
other cluster programming menus. See page 61
for further information.
2
3
4
5
6
7
8
9
10
11
1
Press
to view either engine rpm
and PTO rpm as required.
