5.3 Exchange TRU (Transfer Roller Unit)
After the life of 150,000 pages the Transfer Roller Unit is an exchange by the user
necessary.

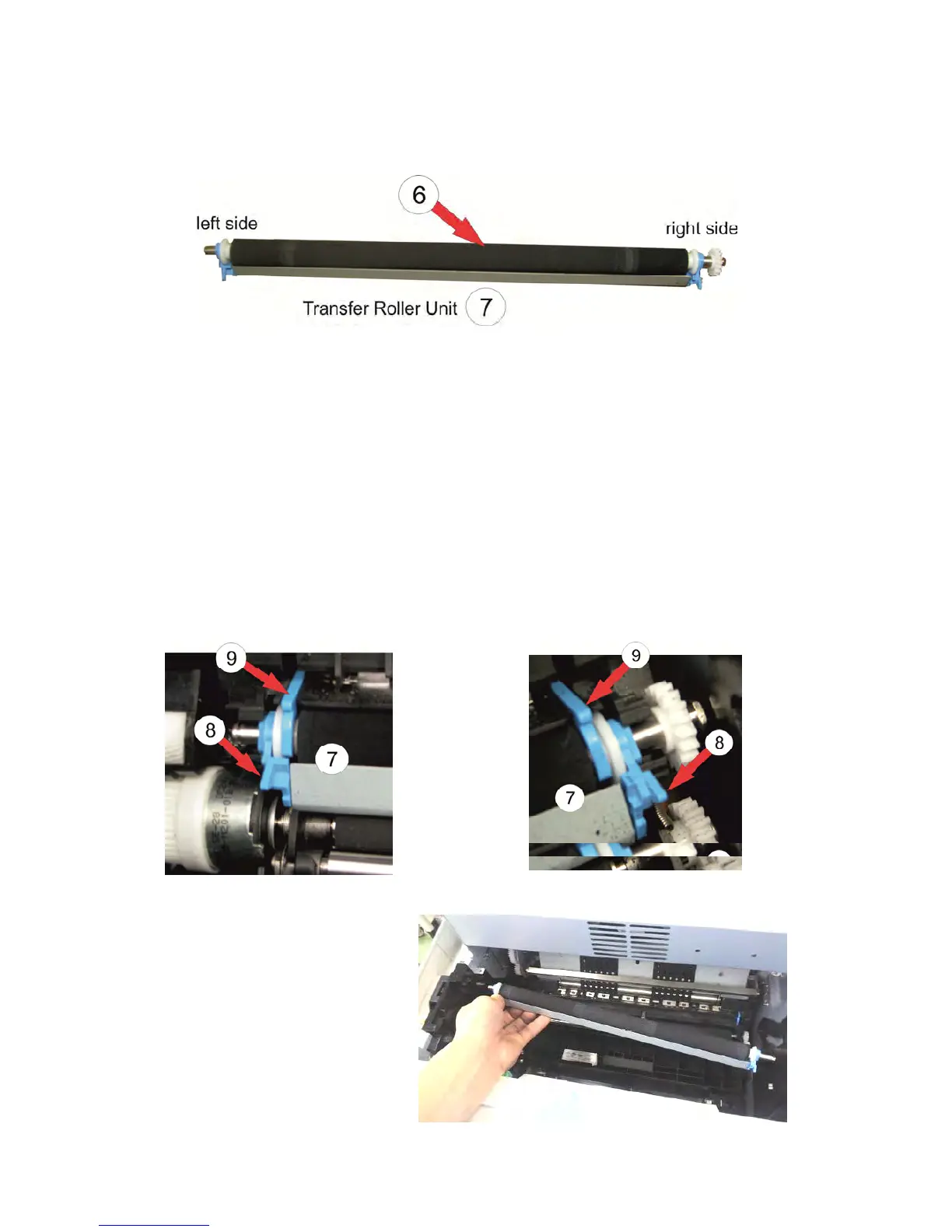

Note: Don´t press onto the black foam roller (6) of the TRU (7).
5.3.1 Disassembly TRU
Note: The TRU is pushed for easier removal via the menu before.
– Start the menu, choose the BASIC SETTINGS. the CONFIG.- MENU and here the point
EXCHANGE TRU and now the parameter YES. (see 3.4 Menu Structure)
– Open the top cover
– Remove the Image Cartridge (2) (see page 5-2)
– Remove the Guide Board (3) (see page 5-3)
– Lift the blue lever (8) on both sides of the TRU (7)
– Lift both blue lever (9) to
release the TRU (7)
– Remove the TRU (7)
