– 5.3 –
Repeatability condition
Plotter conditions
• Exclusive roll bars and sheet set rings (when a roll sheet is used) shall be used.
• The clamp pressure shall be set to “HIGH.”
Sheet setting conditions
• Side margin of the sheet: 20 mm or more
• Front side condition of the sheet: No leaning or rising shall be observed.
• The sheet shall not bend and shall not come off the base paper to invite air bubbles between
them.
• The sheet shall be loaded in the correct matter using the sheet feeding function.
•A roll sheet shall not slacken. (No difference in height shall be observed between the right and
left end faces.)
Cutting speed
• 40 cm/s or less (when the cutter supplied with the unit is used)
Data on cutting
•Test pattern for maintenance (continuous 10 strokes in the lengthwise direction)
While the sheet is being cut, the sheet shall not come off the base paper to invite air bubbles
between them due to an excessive bend.
Types of sheets
• Depends on material of the cutting sheet or ink jet media in use, accuracy of the repeatability
may not be guaranteed.

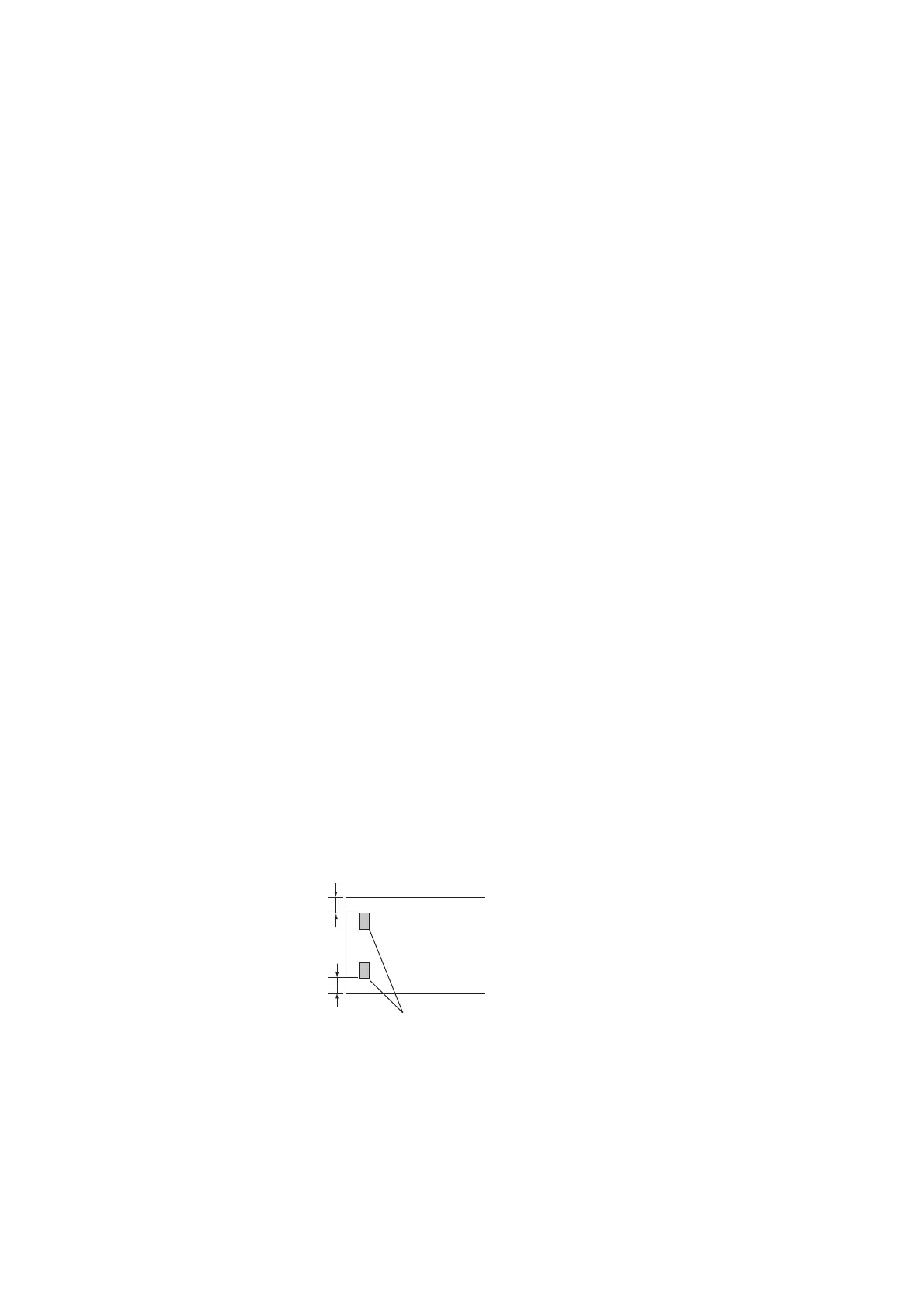

Pinch rollers
Sheet
Side margin
20 mm or more
Side margin
20 mm or more
