– 5.5 –
Adjusting the cutter blade
Adjustment of the blade of any cutter other than that supplied with the unit is described below.
After the completion of adjustment, be sure to set cutting conditions and perform test cutting to
check the blade for sharpness.
Refer to page 2.4 for how to adjust the cutter blade supplied with the unit.

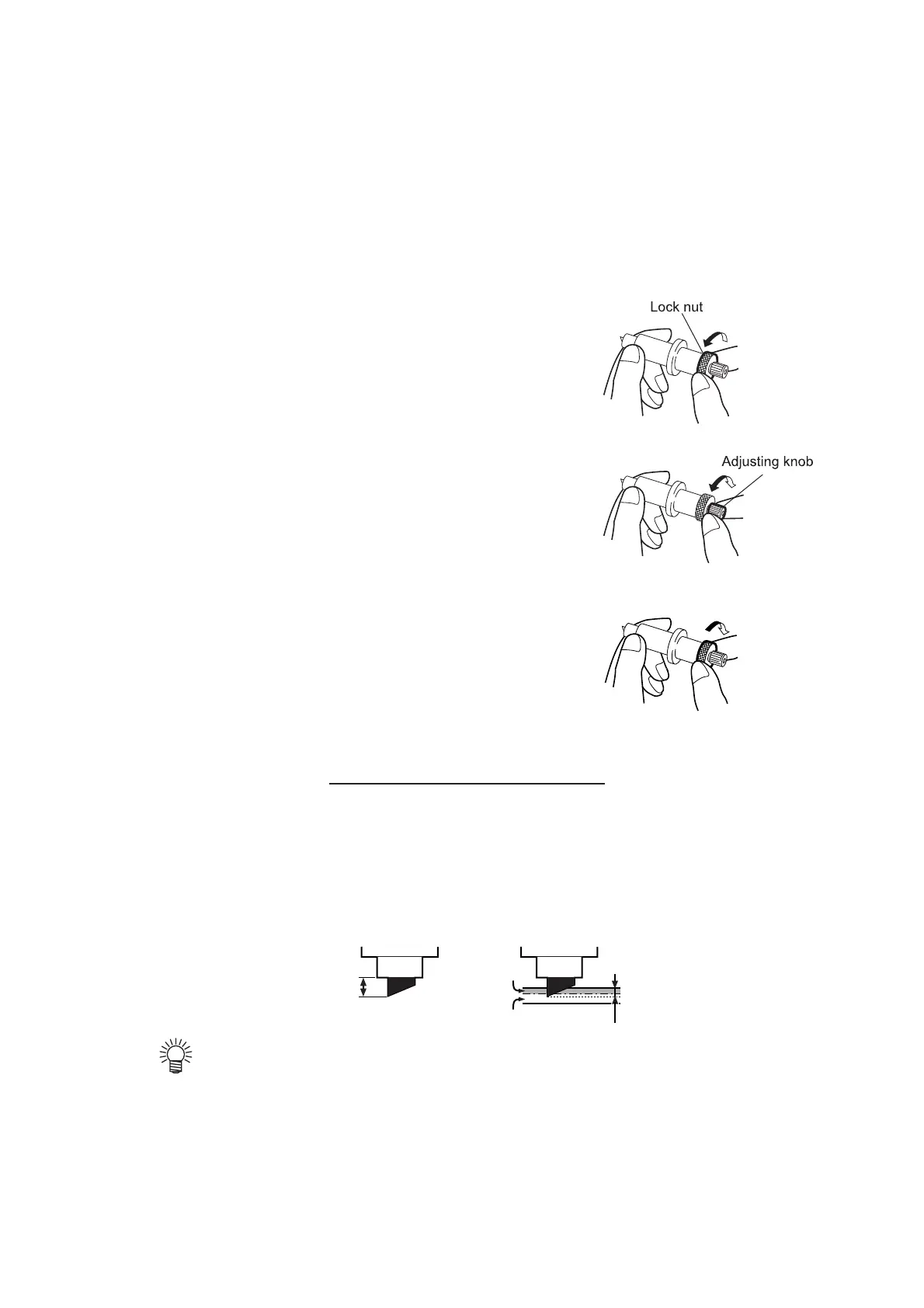

1) Loosen the locknut.
2) Turn the adjusting knob to adjust the protrud-
ing amount of the blade.
3) Tighten the locknut to secure the adjusting
knob.
Film
Base paper
切り込み量
Protruding
amount of the
cutter blade
• The blade adjuster (model: OPT-S1005) will facilitate the adjustment of the
protruding amount of the blade.
(Film thickness + Base paper thickness)
*1
2
*1 Film thickness < Base paper thickness
Protruding amount of the cutter blade = 0.3 to 0.5mm
(If the cutter blade is dull, replace to a new one.)
=
Cut in amount
