– 1.6 –

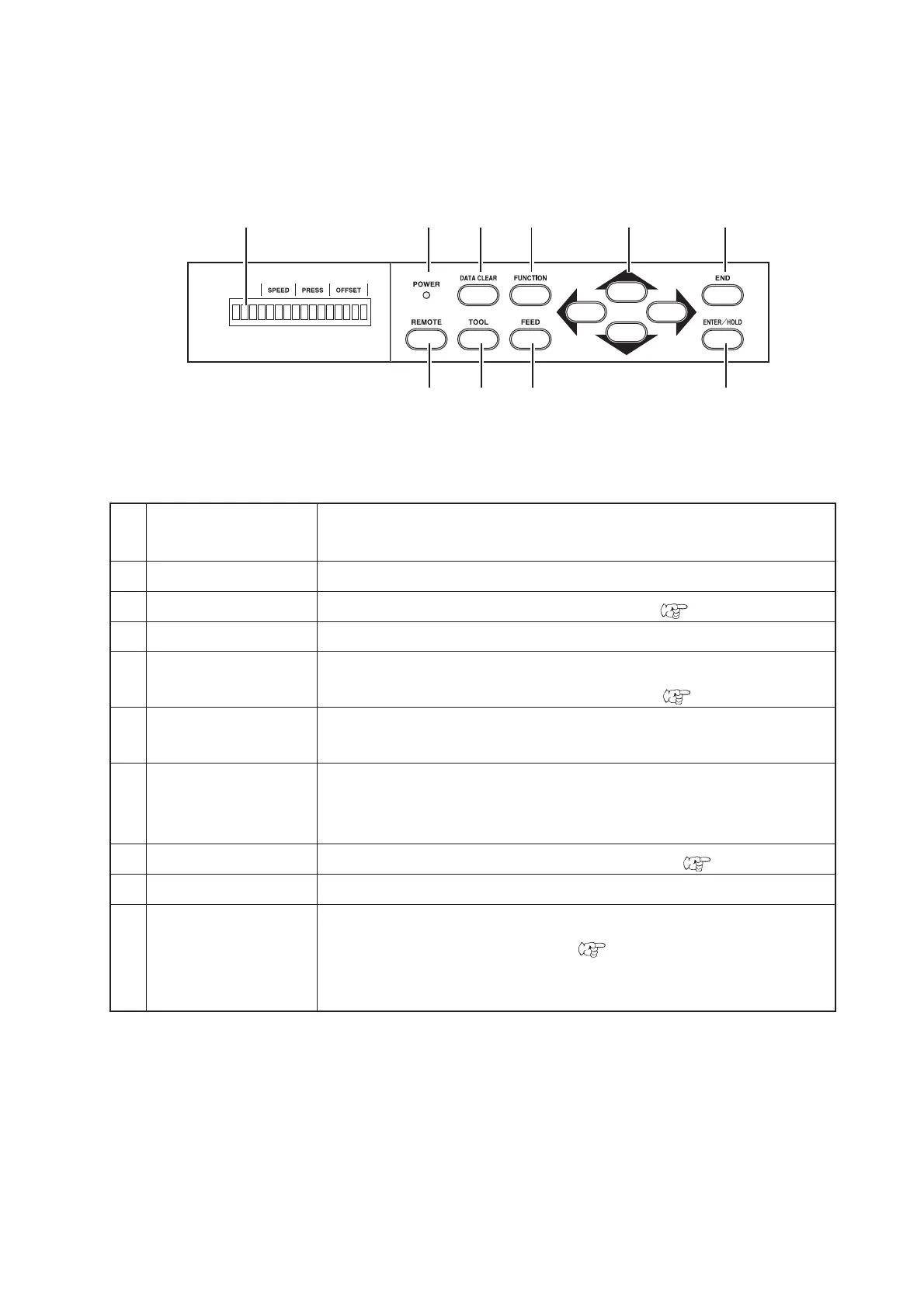

Operation Panel
1 Display panel The display panel indicates tool conditions such as speed, pres-
sure and offset, tool coordinates, functions and error messages.
2 POWER lamp It lights up when the power to the device is turned on.
3 [DATA CLEAR] key This key is used to clear the data received. Page 3.12
4 [FUNCTION] key Function setting mode
5 [JOG] key These arrow keys are used to shift the carriage or sheet in the
corresponding direction or change settings. Page 1.7
6 [END] key It is used to cancel the value is last previously input.
Use the key to detect only the sheet width.
7 [ENTER/HOLD] key This key is used to enter the last previous input value for a setup
item.
Use the key to replace the slipped sheet during plot operation.
8 [FEED] key This key is used to execute the sheet feeding. Page 3.12
9[TOOL] key This key is used to select a tool and establish tool conditions.
10 [REMOTE] key It is used to change over the operation mode between the RE-
MOTE mode and LOCAL mode.
Page 1.15
If this key is pressed while the device is in operation, the device
will be brought to a halt. To restart the device, repress the key.
1
234 5 6
10 9 8 7
To Next Page
