– 3.16 –

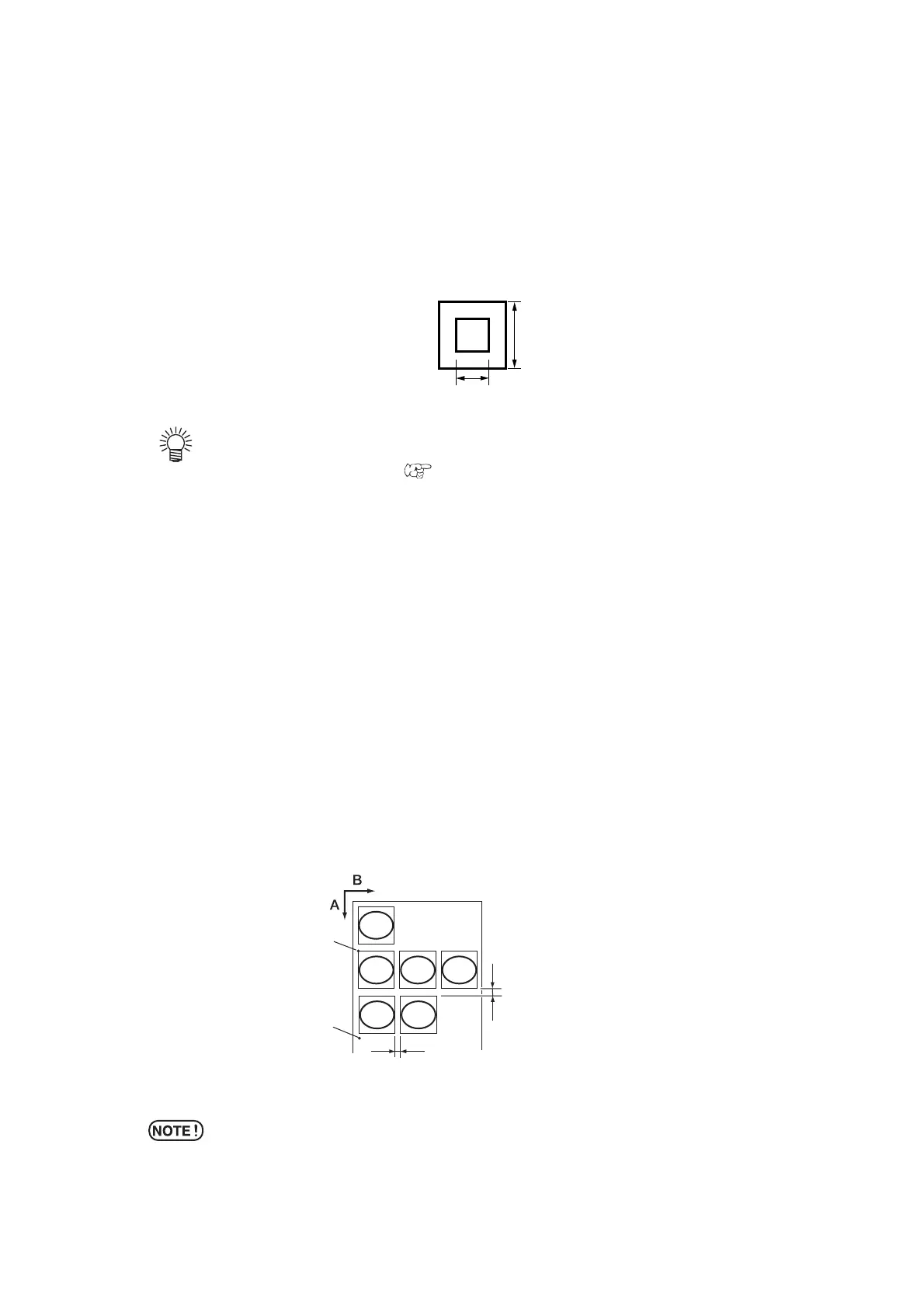

Test cutting [SQUARE CUT]
In the case where you have changed the type of sheet or tool and cutting conditions have been
changed correspondingly, the test cutting function is used to execute test cutting to check that the
cutting conditions such as SPEED, PRESSURE and OFFSET are appropriate.
In the test cutting, the device cuts two different types of squares.
• Change the settings for cutting conditions, if necessary, depending on how
the squares are cut.(
Page 2.19)
• The device executes the [SQUARE] at the current tool location.
Cut (plot) the same data on multiple sheets [No. COPIES]
This function is used to perform cutting (plotting) of the received data on two or more sheets.
The device stores the received data in the receiver buffer to enable cutting (plotting) in repetition on
as many as 999 sheets.
When the device receives new data, the data stored in the receiver buffer will be updated.
Cannot cut the previous data on multiple sheets.
Setting value (input of numeric data)
Number of copies :1 to 999 sheets
Margins between the copied data :0 to 30 mm
* If the plural sheet cutting is executed immediately after cutting under the
remote mode, the data will be cut (plotted) overlapped. To avoid this trouble,
re-set an origin.
15mm
10mm
The locations of copies for second cutting
(plotting) and beyond are to be allocated
according to the size of the original data.
Lengthwise and widthwise interval between
copies of the original data is 1 mm.
After the completion of copying, the location
of origin will be updated.
The origin at the time of
executing the plural sheet
cutting.
The origin at the time of
terminating the plural
sheet cutting (automatically
established)
Original data
Copy interval
Copy
interval
To Next Page
