– 3.4 –
Setting an origin
The origin is a reference point of data to be cut (ploted).

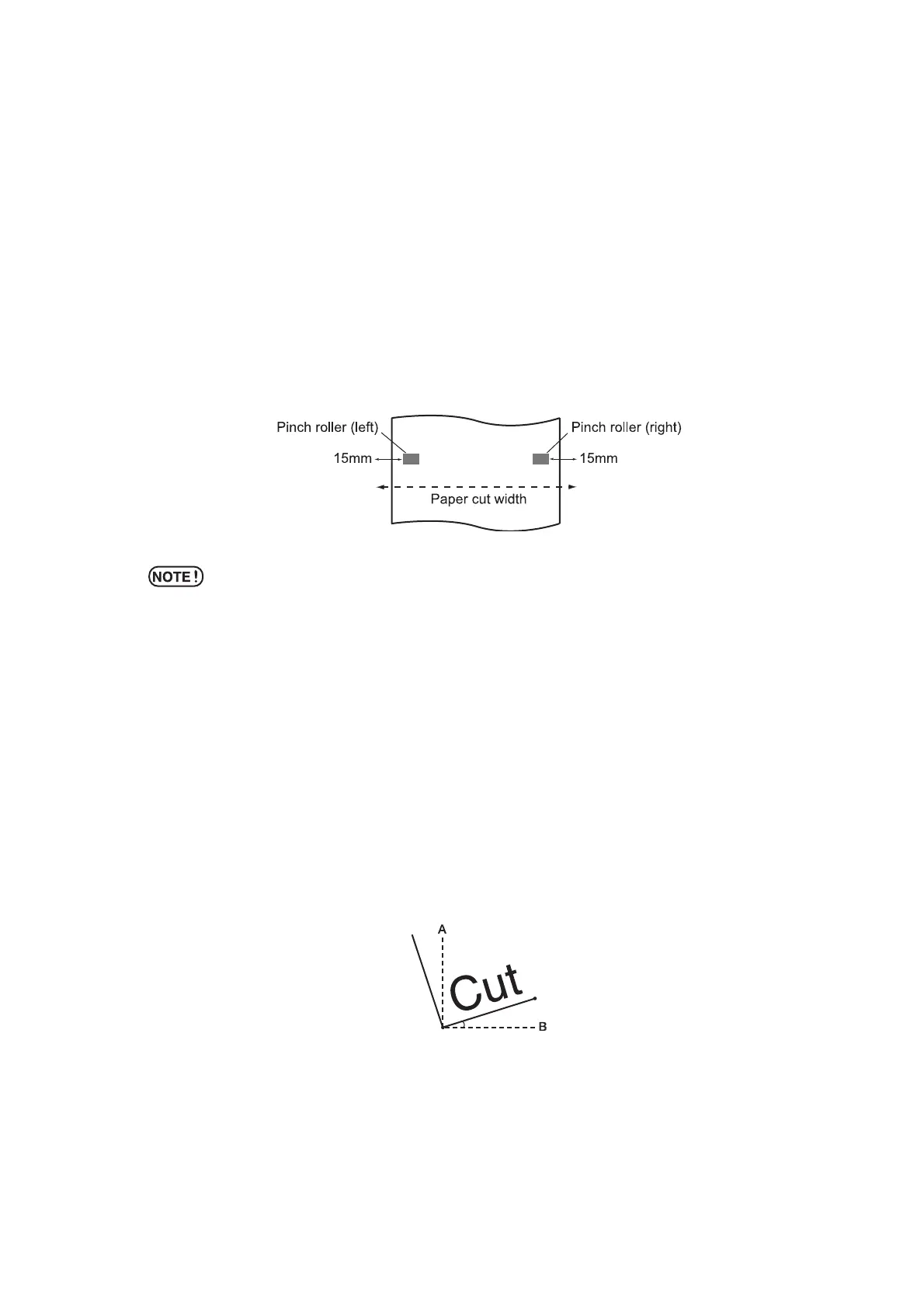

Paper cut
The sheet is cut off at the current location of the tool.
For the paper cutting, the sheet will be cut up to the location 100 mm outside each of the pinch
roller. (Do not exceed the maximum paper cutting area.)
Refer to the AUTO CUT for procedures of automatic cutting after plotting.
* In case setting a roll sheet to the front side, reset the sheet configuration.
* When setting the width between the pinch roller 1 and the pinch roller 3 as
the maximum width, the available paper cut range is as follows.
40mm from the inside of the pinch roller 1
80mm form the inside of the pinch roller 3
* The minimum cut length differs from the sheet type in use. In case the both
sides hang free during the paper cut operation, set the longer cut length.
Two-point axis alignment
If setting a ruled line sheet, align the horizontal and vertical axis according to the lines on the sheet.
Axial inclination (q) is corrected between the origin and correction point specified.
To clear the alignment point, raise the sheet set lever.
Setting value
-45° to 45°
Origin
Correction Point
To Next Page
