– 2.9 –

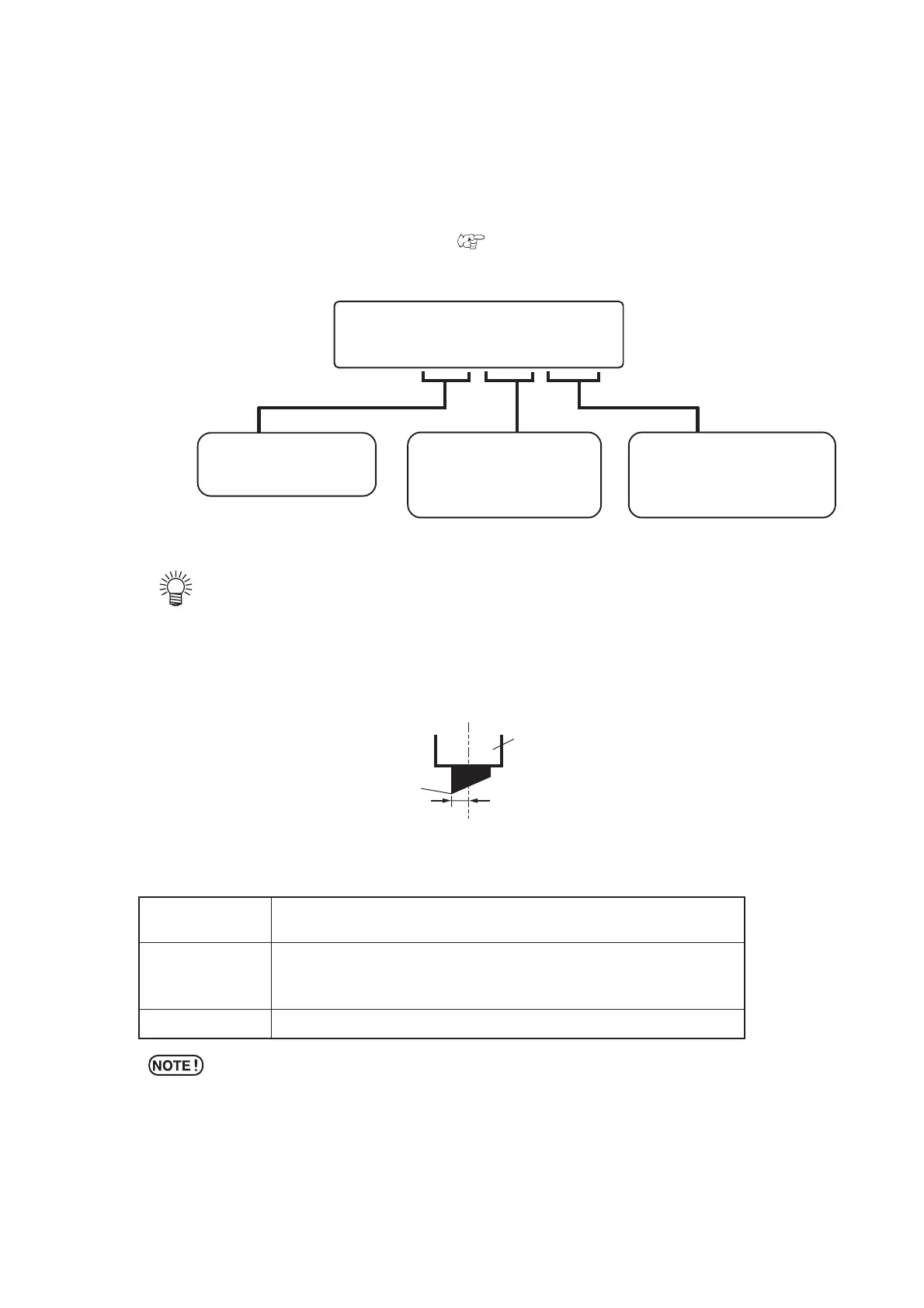

Cut conditions (CT1, CT2, CT3, CT4, CT5) settings
Enter tool conditions for the operation using a cutter. Three kinds of cutting conditions (CT1, CT2,
CT3, CT4 and CT5) can be entered at a time. This means these conditions can be entered separately
according to the cutter to be used. Once cutting conditions are specified, the cutter will perform a
dummy cutting (to adjust the blade direction) (
Page 3.45).
CT1 050 100 0.30
SPEED
Cutting (plotting) speed.
PRESSURE
Pressure with which the tool
hold the sheet of media.
OFFSET
The amount of the cutter blade
tip from Center of the holder.
• If the offset amount is increased, square-shaped characters will be cut/
plotted. If it is decreased, round-edged characters will be finished.
Change the offset value depending of the sheet thickness or the type of
blade. For the cutter supplied with the unit, set the offset to 0.30 mm.
Setting value
SPEED 1 to 10 cm/s (1 cm/s step)
15, 20, 25, 30, 35, 40, 50, 60, 70, 80, 90, 100 cm/s
PRESSURE 10 to 20 g (2 g step)
20 to 100 g (5 g step)
100 to 400 g (10 g step)
OFFSET 0.00 to 2.50 mm (0.05 mm step)
* If a sheet width is 800mm or more, the cut speed is automatically slower
than the preset speed. (Exc.CG-75FX)
Cutter holder
Offset
Blade tip
To Next Page
