Tool conditions setting
Three different tool conditions are to be set such as cutting conditions, plotting conditions and
pouncing conditions.
Specify “SPEED”, “PRESSURE” and “OFFSET” settings that suit the tool to be used.
To set tool conditions, press the [TOOL] key under the local mode, select tool condition and input
settings.
* Do not adjust only the blade length as remaining the cutting pressure setting
at high, but adjust the cutting pressure (PRESSURE).
In case performing cutting with a short blade length under the high cutting
pressure, the abnormal noise may occur, and the surface of the sheet may
be damaged, resulting inferior cutting quality.
CT1 020 050 0.30
CT2 020 080 0.30
CT3 050 150 0.30
CT4 020 060 0.30
CT5 020 070 0.30
PEN 040 060
PIN 040 080 002P
HLF 020 040 0.30

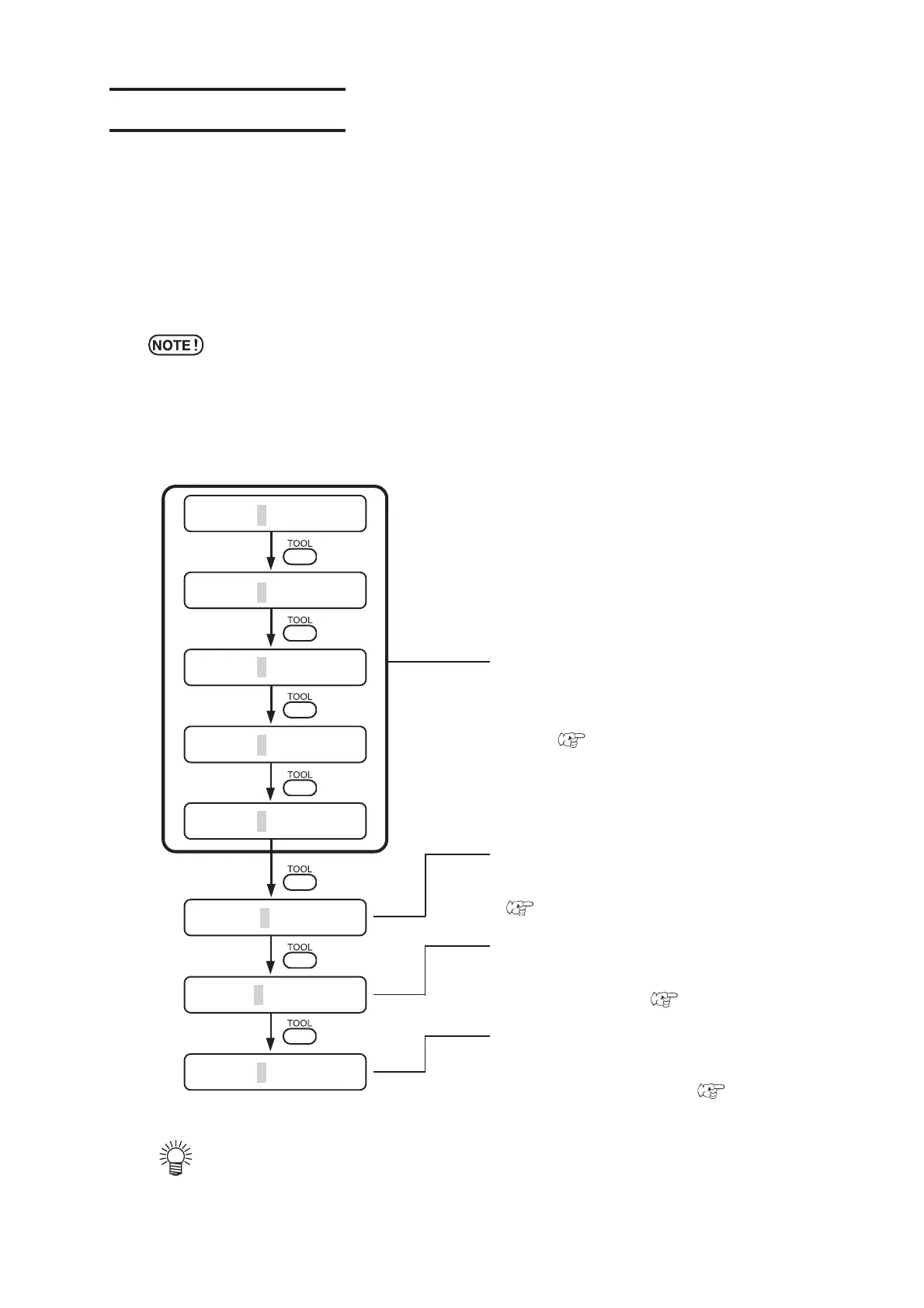

Cutting Condition
(CT1, CT2, CT3, CT4, CT5)
Tool conditions for operation using a
cutter.
Page 2.9
Plotting Condition (PEN)
Tool conditions for operation using a pen.
Page 2.11
Pouncing Condition (PIN)
Tool conditions for operation using a
pouncing function.
Page 2.11
Cutting Condition (HLF)
Tool conditions for operation using a
HALF cutting conditions.
Page 2.12
• PIN and the HLF are not displayed unless setting the [POUNCING] and
[HALF CUT] functions.
