Cutting area
An area in which the device performs cutting (plotting) is specified.
The area that has a diagonal line extending from the origin and a given UL (upper left) point is the
effective cutting area. If you tilt the clamp lever toward you, the cut area specified will be cleared.
* Be sure to specify an upper left point in the area that is located in the normal
direction from the origin.
* Be sure to set an origin in the cutting area. If you establish an origin outside
the cutting area, an operation error will result.

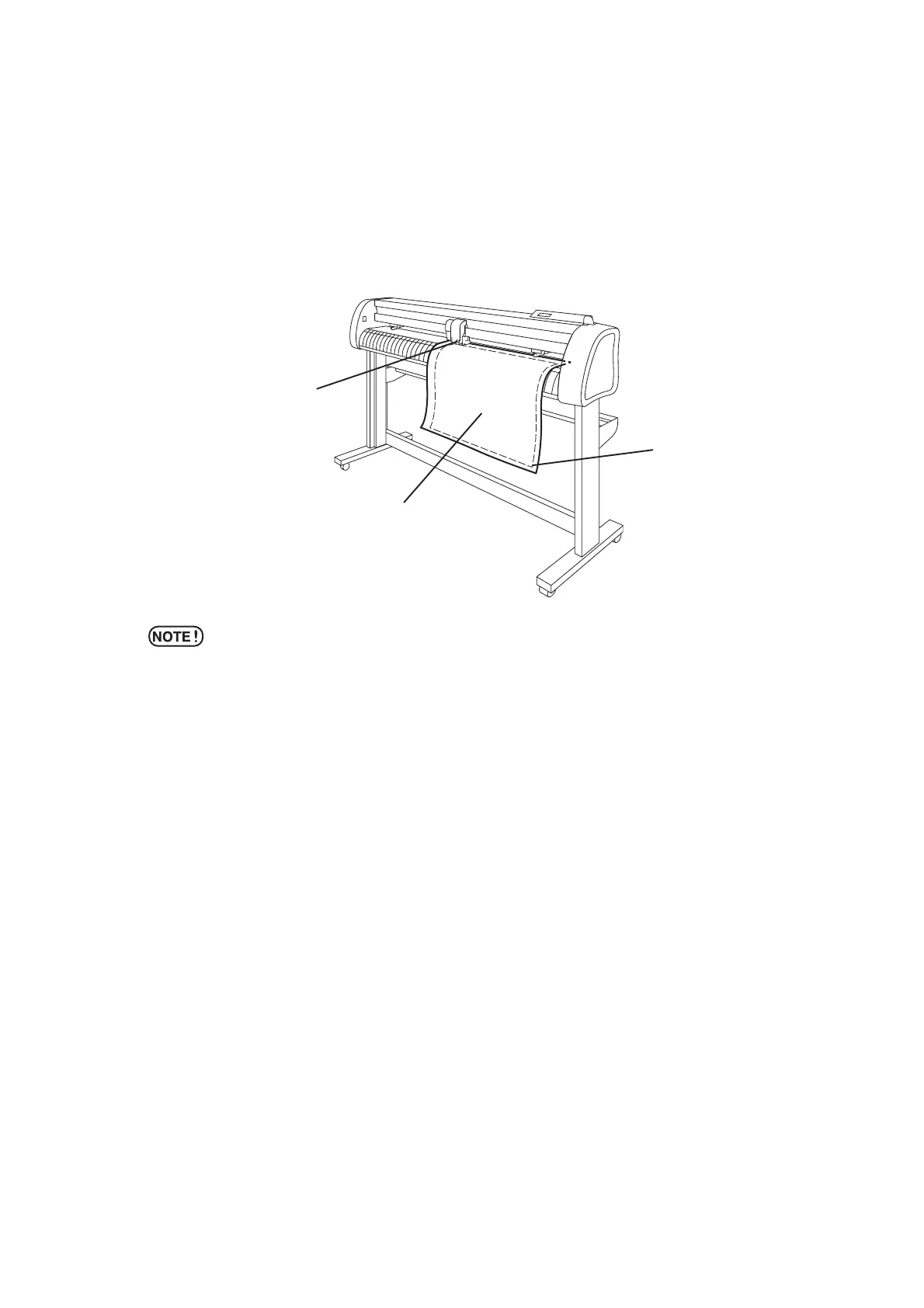

Point UL
Cut area specified
Origin
