– 2.13 –
Loading a sheet of media
Either a cut sheet or a roll sheet can be loaded on the device.
The pinch rollers and grit rollers hold the sheet in position.
Specify the location of the pinch rollers to match the sheet to be used.
There are three pinch rollers on the main unit. (CG-160FX is four pinch rollers on the main unit.)
When setting a slippery surface material, such as a soft sheet, wider sheet, or film, set a pinch roller
to the both sheet ends and the center (CG-160FX set the two pinch roller at the middle).
For a narrow sheet, no need to set the pinch roller in the center of the sheet.
*When in use of the cetrer pinch roller, it may have the mark of the grit roller
in the sheet.
Enable to load of the Sheet width
mm inch
CG-75FX 90 to 1040 24, 30, 36, 40
CG-130FX 90 to 1580 24, 30, 36, 42, 48, 50, 52, 60, 62
CG-160FX 90 to 1880 24, 30, 36, 42, 48, 50, 52, 60, 62

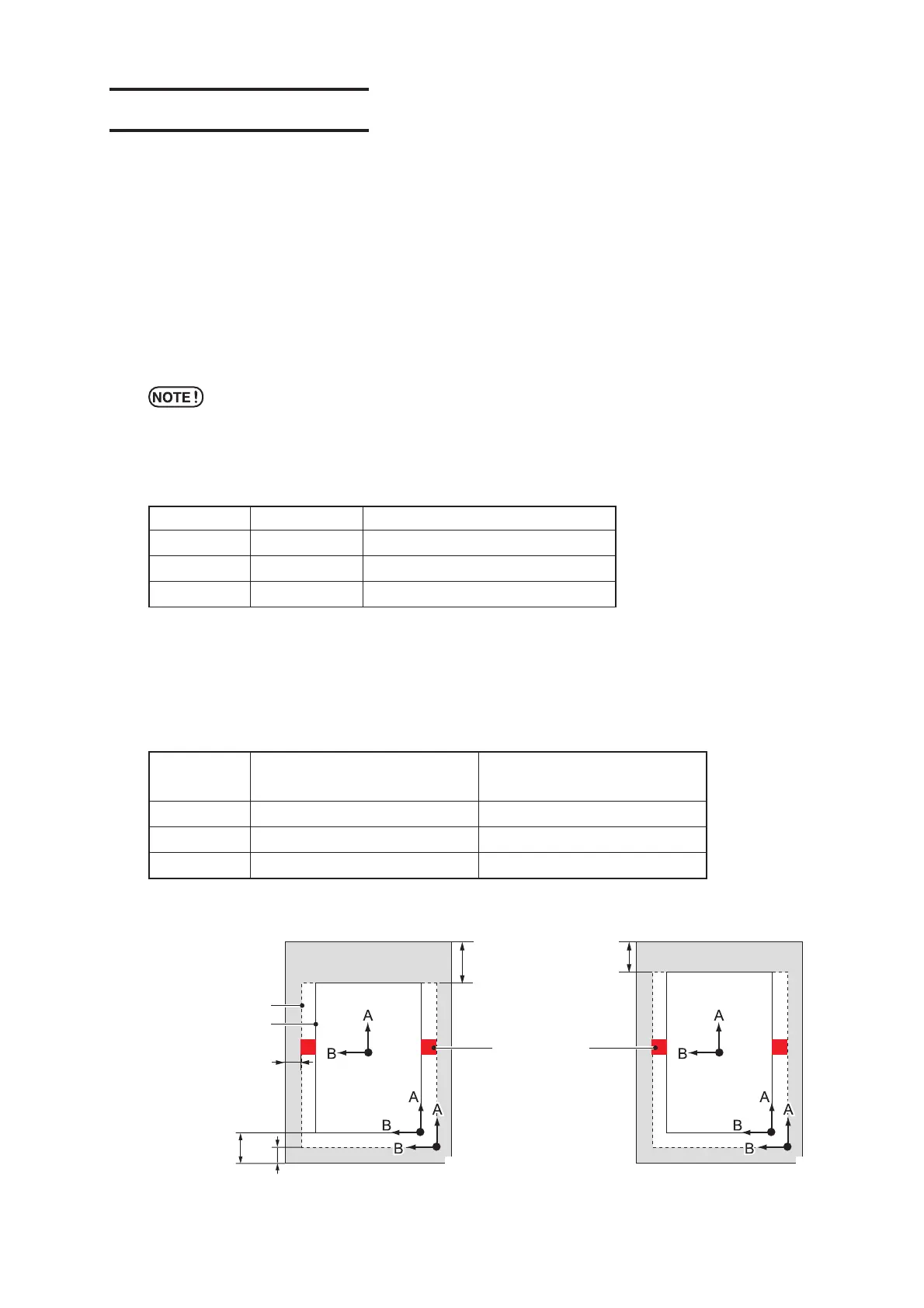

Maximum cutting area
The maximum cutting area (the area in which cutting (plotting) is enabled) varies depending on the
location of pinch rollers, the tool used, and the location of the origin. The white portion of the
illustration shown below represents the maximum cutting area.
The origin is set at the lower The origin is set at the center
right corner of the area. of the area.
CG-75FX 760 mm x 51 m 760 mm x 3 m
CG-130FX 1300 mm x 51 m 1300 mm x 3 m
CG-160FX 1600 mm x 51 m 1600 mm x 3 m
* Dead space: The area in which cutting is disabled.
Front dead space
10 mm
Half Cut, Pouncing Cutting, Pen-Plotting
5mm
or more
10mm
20mm
Rear Dead Space:
40mm 30mm
Pinch Roller
Expands:
ON
OFF
Origin Origin
Front dead space:
