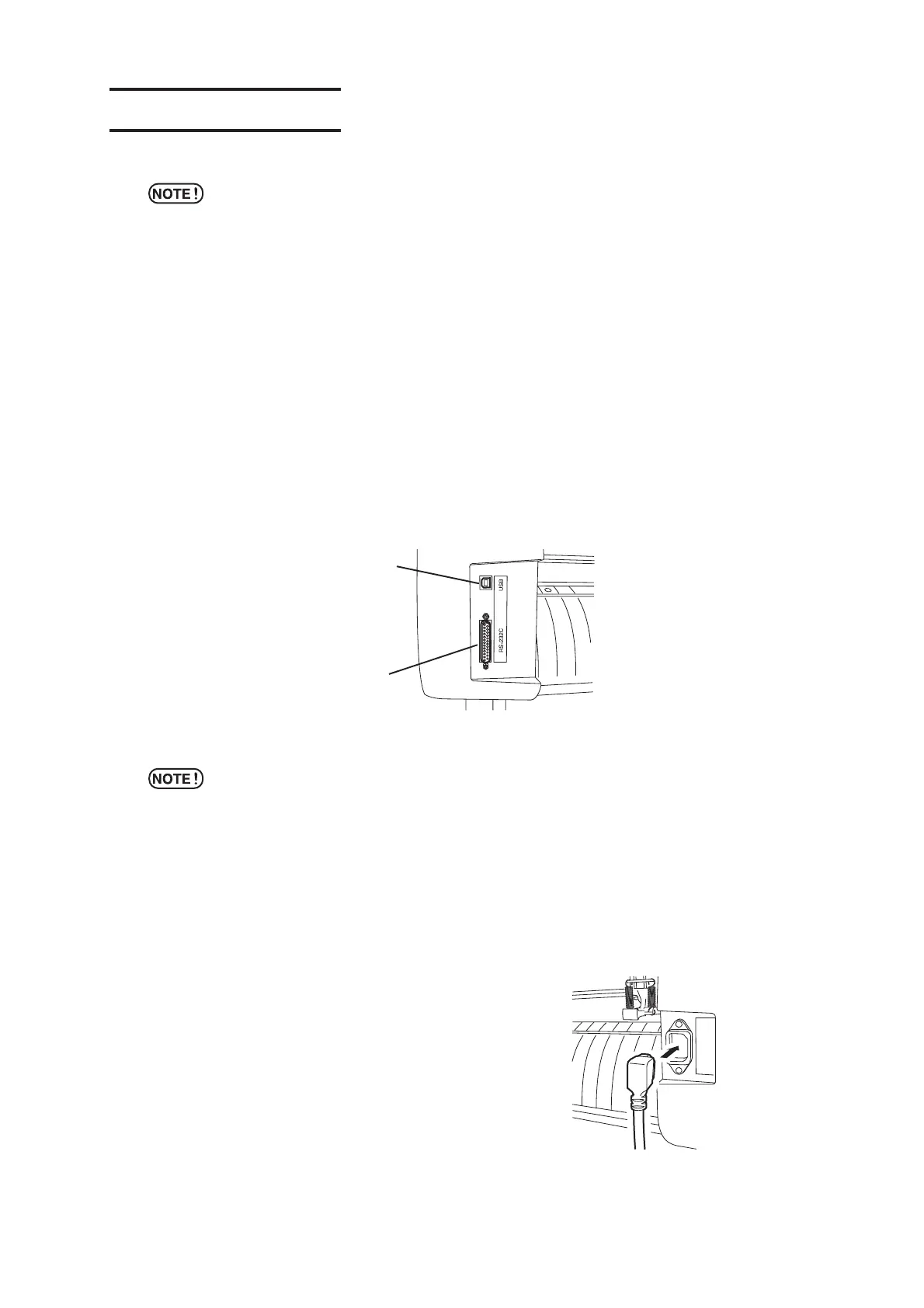

Connecting the cables
*When connecting the cables, turn off first the power to the device and that to
the host computer which the power cable is to be connected.
* Do not insert/remove the cable during data transferring.
* For details on USB connection, refer to attached USB install guide.
* Follow the instructions in case the wizard displayed when connected a USB
cable.
Connecting the interface cables
The device comes with two different kinds of interfaces.
Select either one that matches the host computer.
• RS-232C compatible interface
• USB interface
* It is necessary the settings of interface which to use.
* Plug in/out the connecter carefully. Too much pressure may damage the
connecter.
Connecting the power cables
After the completion of interface cable connection, connect the power cable.
Connect the power cable to the receptacle of the following power specification.
•Voltage AC100V to 240V ±10%
• Frequency 50/60Hz ±1%
• Capacity 100W or more (equivalent to 2 A)
USB interface
RS-232C
compatible interface
To Next Page
