– 3.39 –

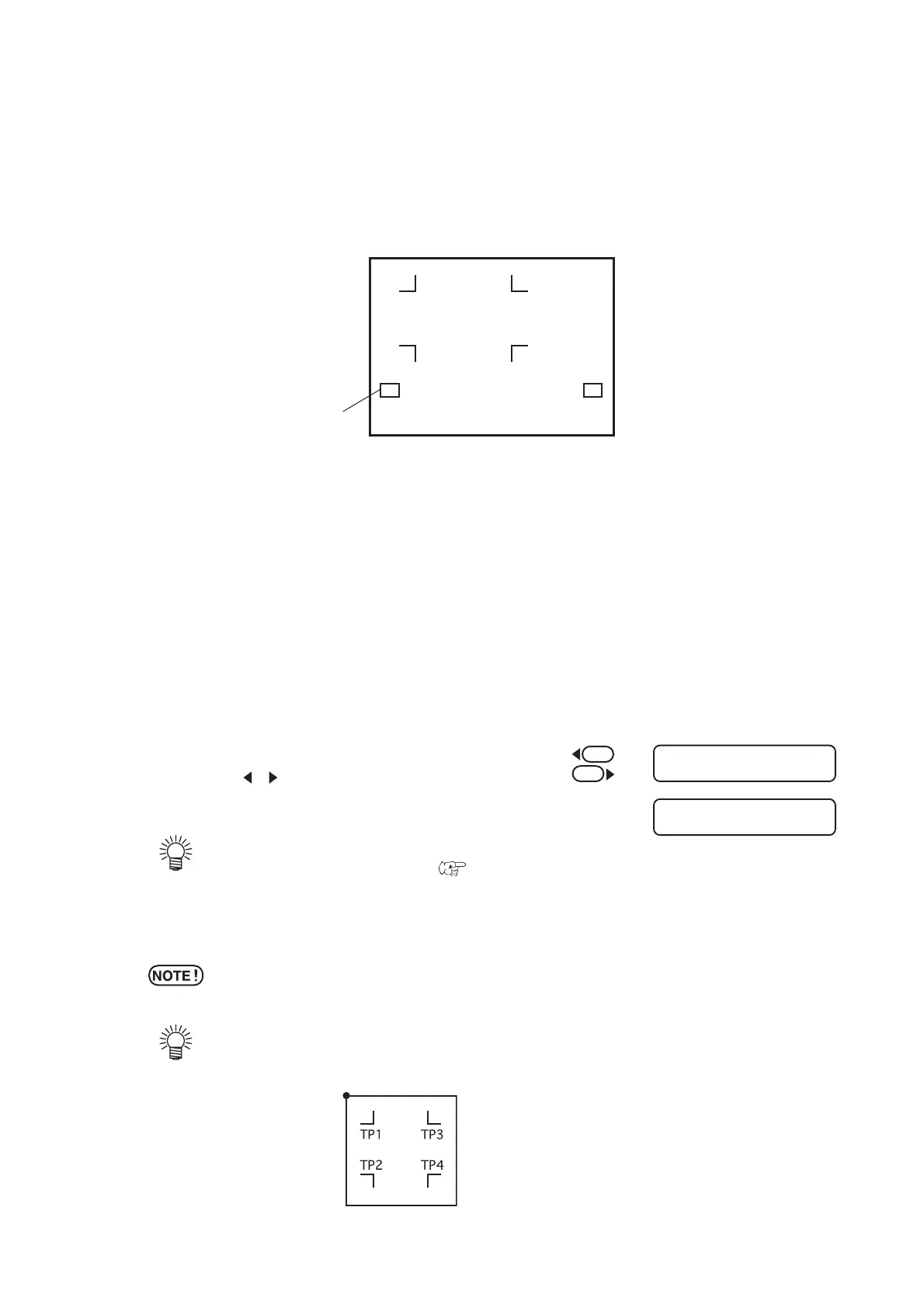

Semi-automatic registration marks detection
In case TP1 cannot locate to the registration mark detection position by the full automatic, detect
marks under the semi-automatic mode.
Detect procedure ( [DIST.REVI.] Setting value is "BEFOR")
1 ) Place the sheet on the device and turn the
clamp lever toward you.
Then, the pinch rollers will retain the sheet and the device will
perform the sheet detection.
2 ) Perform the sheet detection by pushing on the
jog keys [
] [ ] . (When the sheet is set to the
rear position.)
• In case [ROLL. SELECT] is set [ON], select the
number of pinch roller to use. (
Page 2.16)
When detects the sheet, the display shows the registration
mark detection wait.
*We strongly recommend the rear set for the front
set is functionally limited.
• When the sheet position is set to front, the view
position of the TP1 - TP4 will turn as follows.
Pinch roller
TP1
TP2
TP3
TP4
ROLL < R > LEAF
TP1
Origin
To Next Page
