MIMAKI UCJV300 Series - Using Included Cutter Holder and Adjusting Blade Protrusion

Chapter 3 Cutting
85

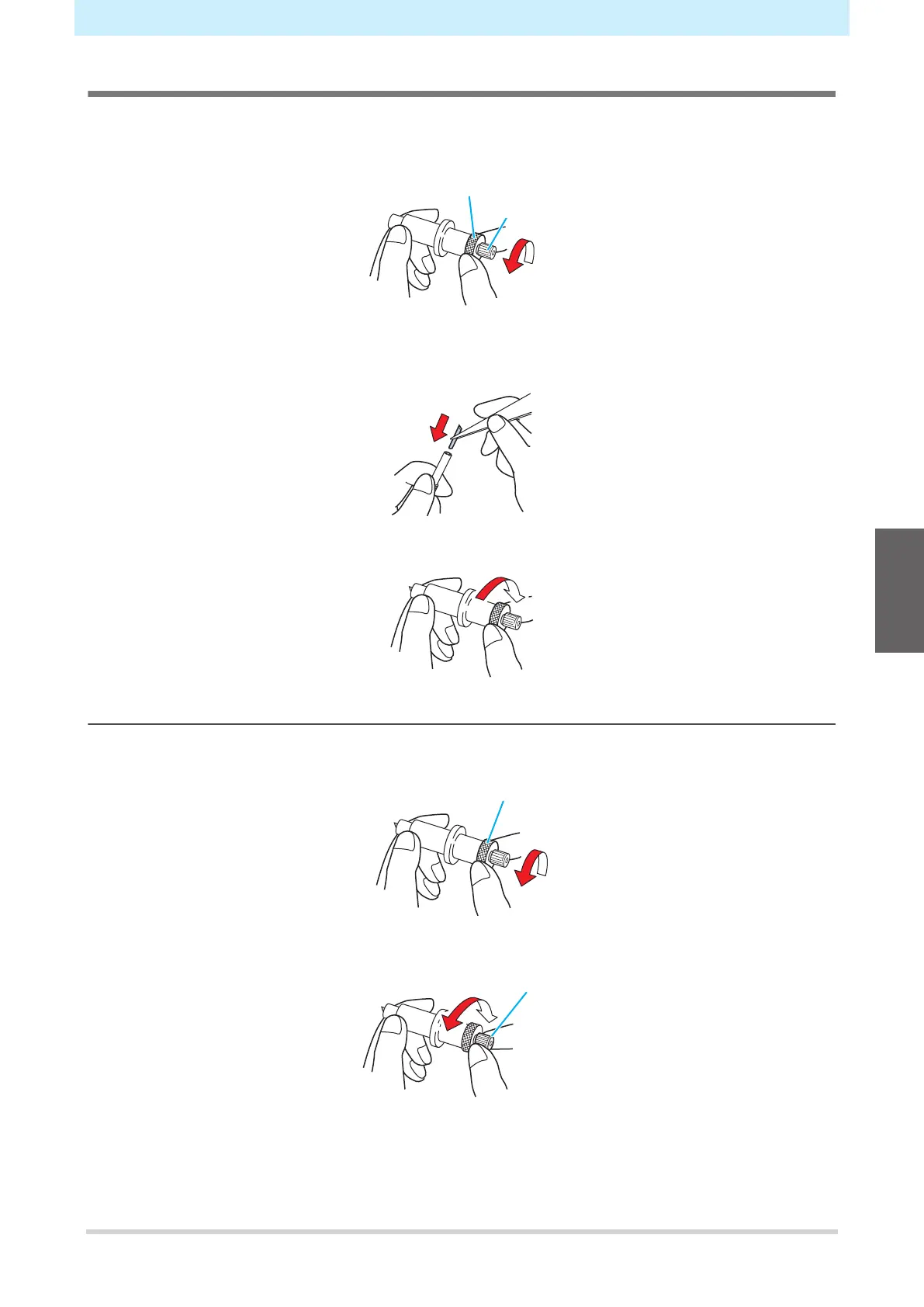

Using the Included Cutter Holder (SPA-0001)
1
Loosen the lock nut of the cutter holder and extract the adjusting knob.
• Turn in the direction indicated by the arrow in the picture.
Lock nut
Adjusting knob
2
Insert the cutter into the adjusting knob,
• Use tweezers to insert the cutter.
3
Fix the lock nut by turning in the direction indicated by the arrow in the picture.
Adjusting the Cutting Blade Protrusion Length
1
Loosen the lock nut of the cutter holder.
Lock nut
2
Turn the adjusting knob to adjust the protrusion of the cutting blade.
Adjusting knob
3
