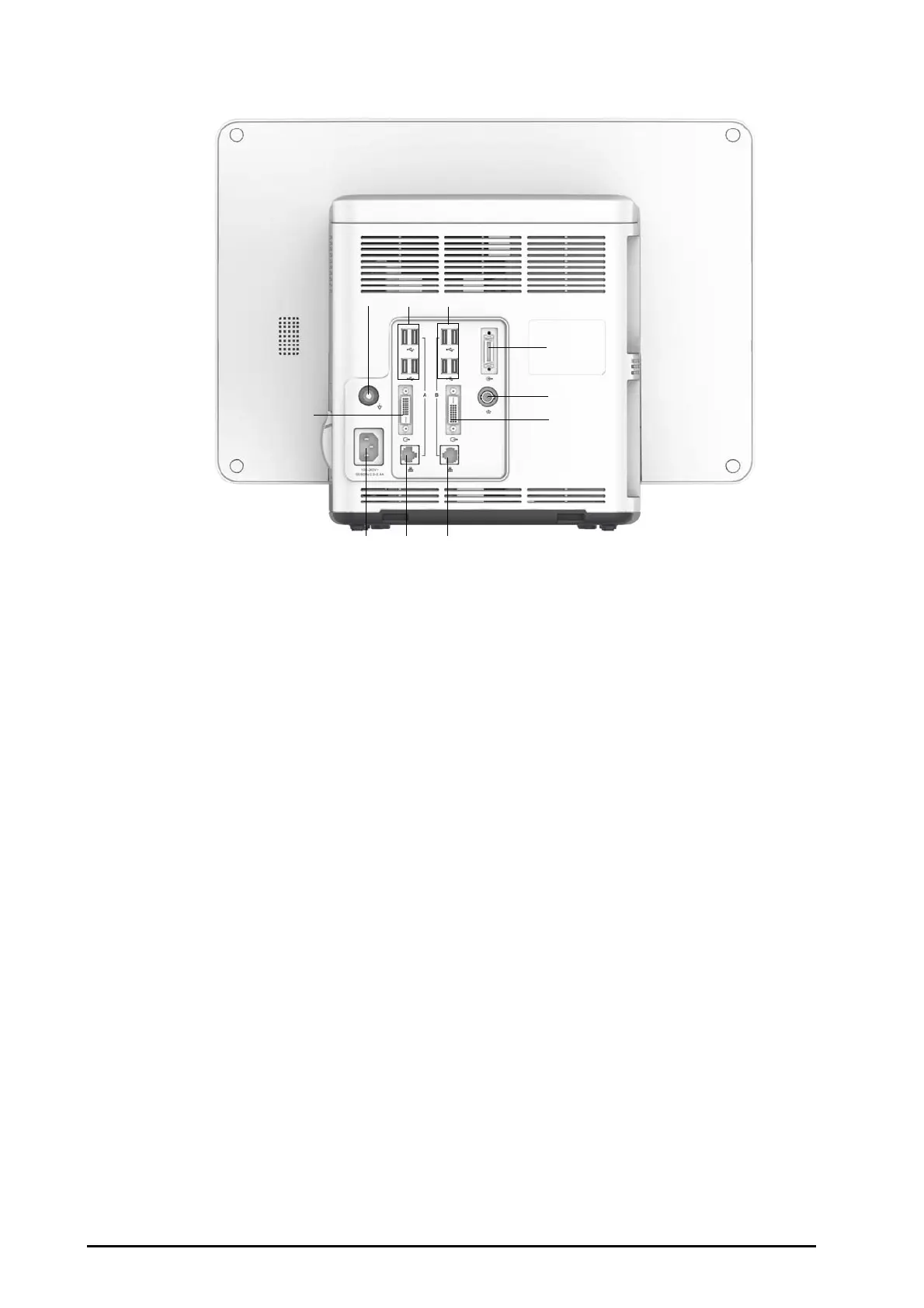

2.3.3.5 N17 Rear View
(3)
(1)
(2)
(7)
(6)
(10)
(9)
(5)
(8)
(4)
(1) Equipotential Grounding Terminal
When using the monitor together with other devices, connect their equipotential grounding terminals together
to eliminate the potential difference between them.
(2) AC Power input
(3) USB connectors
Connect USB devices, for example the keyboard, mouse, and barcode reader.
(4) USB connectors: available only when iView module is configured. They connect USB devices for the iView system,
for example keyboard and mouse.
(5) Digital video connector: connects the external display which mirrors the monitor display.
(6) Digital video connector:
Connects the iView display if the iView module is configured.
Connects the external display.
(7
) Network Connector
I
t is a standard RJ45 connector which connects the monitor to the central monitoring system (CMS) or other
network devices.
(8) Network Connector: available only when iView module is configured. It is a standard RJ45 connector which
connects the iView system to the external network.
(9) Satellite module rack (SMR) connector: connects SMR or N1 or T1 Dock.
(10) Nurse call connector
It is a BNC connector. It connects the monitor to the hospital’s nurse call system through the nurse call cable (PN:
8000-21-10361). Alarms from the monitor are sent to the nurse station through the nurse call system, if
configured to do so.
