Mindray BeneVision TM80 Service Manual

8-12 TM80 Telemetry Monitor Service Manual

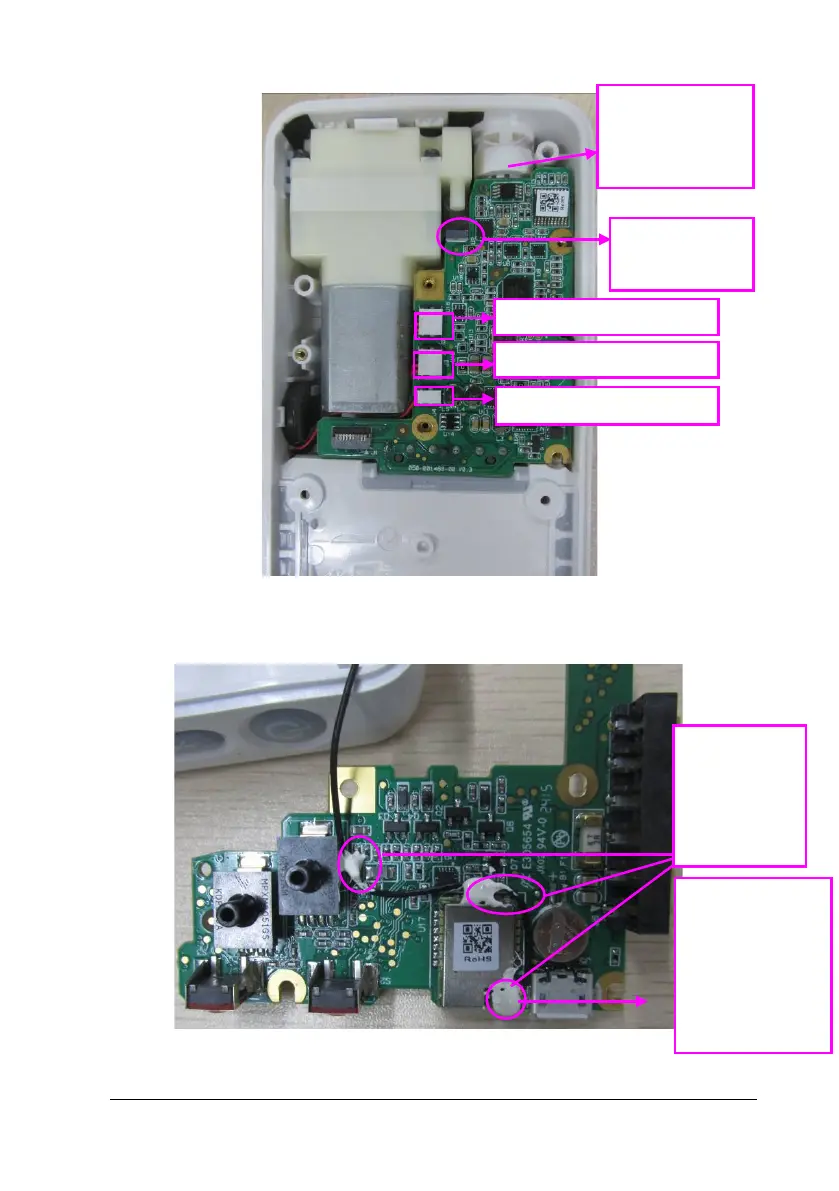

6. Remove the MPAN antenna connected to the parameter board. Be sure to
remove the hot melt adhesive.
Release the
clip
Pry up the
parameter
board from here
R
Remove the
hot melt
adhesive
Position of
MPAN antenna,
Letting the
antenna plug
face downward
Valve cable connector
Pump cable connector
Buzzer cable connector
