A-10 TM80 Telemetry Monitor Service Manual
WARNING
A 2-beep-per-second signal indicates high voltage present at the
applied part terminals while a calibration is being performed.
High voltage is present at applied part terminals while measurements
are being taken.
To Perform the Test
1. From the MAIN MENU, or with the outlet unpowered, plug the DUT into the 601
2. Attach the applied parts to the 601PRO applied part terminals.
3. Attach the red terminal lead to a conductive part on the DUT enclosure.

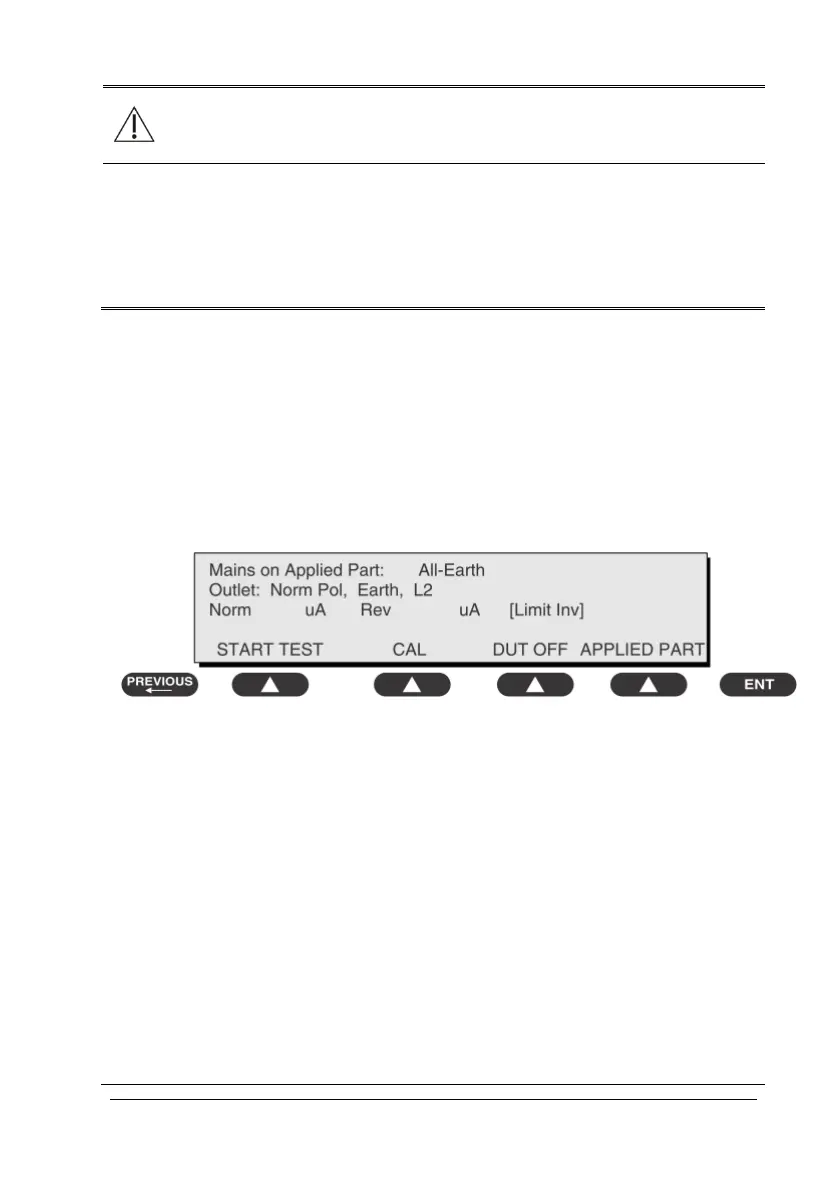

4. Press shortcut key 7. The Mains on Applied Part test is displayed.
5. Select the desired outlet configuration and applied part to test using the
appropriate SOFT KEYS:
6. Press START TEST (SOFT KEY 1) to begin the test.
7. Press the print data key to generate a printout of the latest measurement.
