About SMB Controller

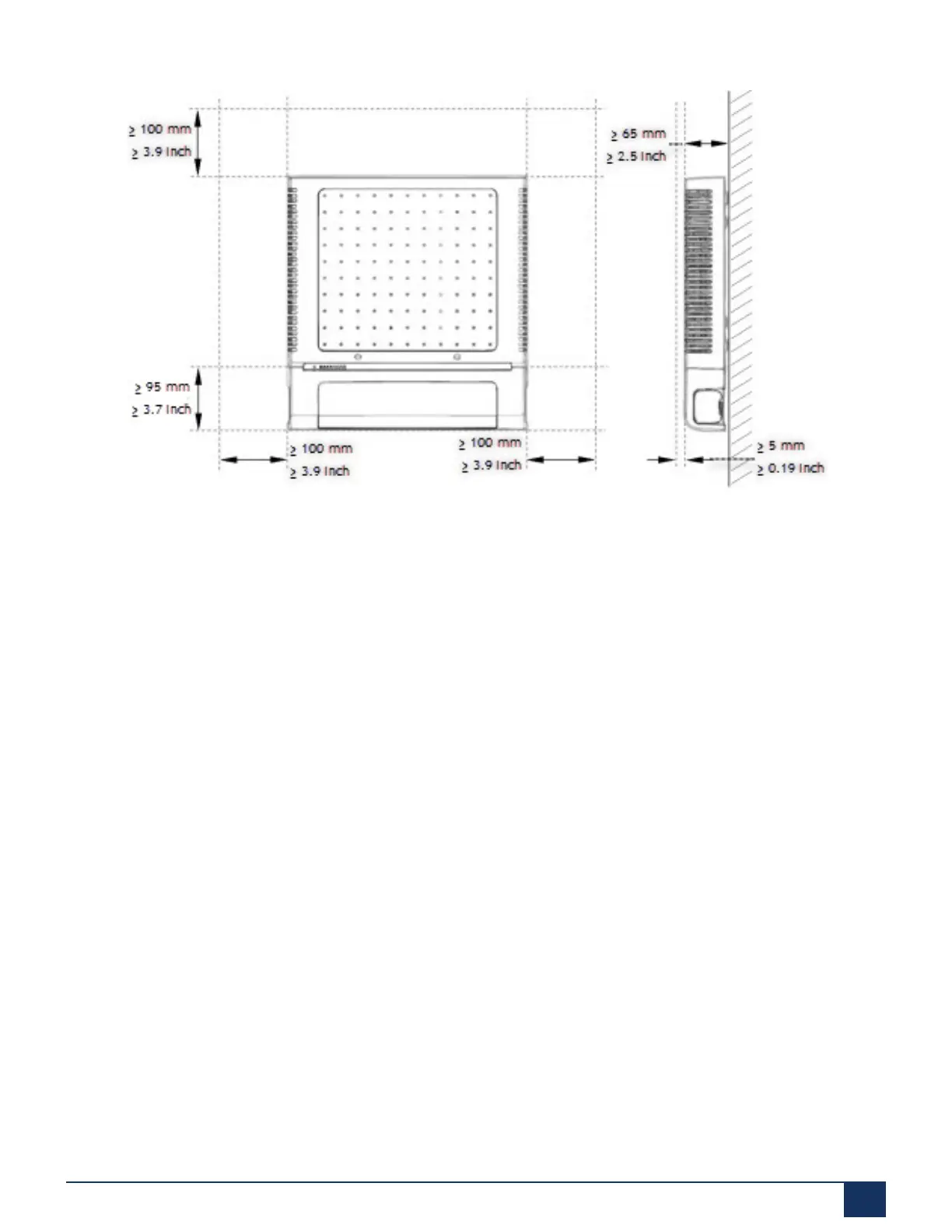

Figure 15: Minimum distances for wall mounting (front panel facing downwards)
Drilling template
The drilling template is provided in the packaging box of the communication server.
Wall-mounting procedure
Materials required:
•
Screw set for wall/desktop installation
•
6 mm drill bit
•
Screwdriver
To mount the SMB Controller to the wall, proceed as follows:
1.
Make sure you observe the minimum distances from other objects, walls or ceilings as
shown in Minimum distances for wall mounting (front panel facing to the right) and Minimum
distances for wall mounting (front panel facing downwards).
2.
Drill the three dowel holes.
3.
Insert the dowel plugs.
4.
Screw in the two shorter upper dowel screws (position A or B).
5.
Shut down the SMB Controller (see Shut-down mode) and disconnect it from the power
supply.
