6.5 Installation Procedure
2 Place the mounting fixtures (included with GOT) on the mounting fixture attaching part of the GOT, and
fix them by tightening the mounting screws in the torque range of 0.36 to 0.48N·m.
(Failure to do so may distort the panel and make a surface waviness on the protective sheet.)
3 A protection film is attached on the display section of GOT prior to shipment.
Remove the film when the installation is compelted.
For other than GT1595-X: Fix the GOT with
4 mounting fixtures.
For GT1595-X: Fix the GOT with 8 mounting fixtures.

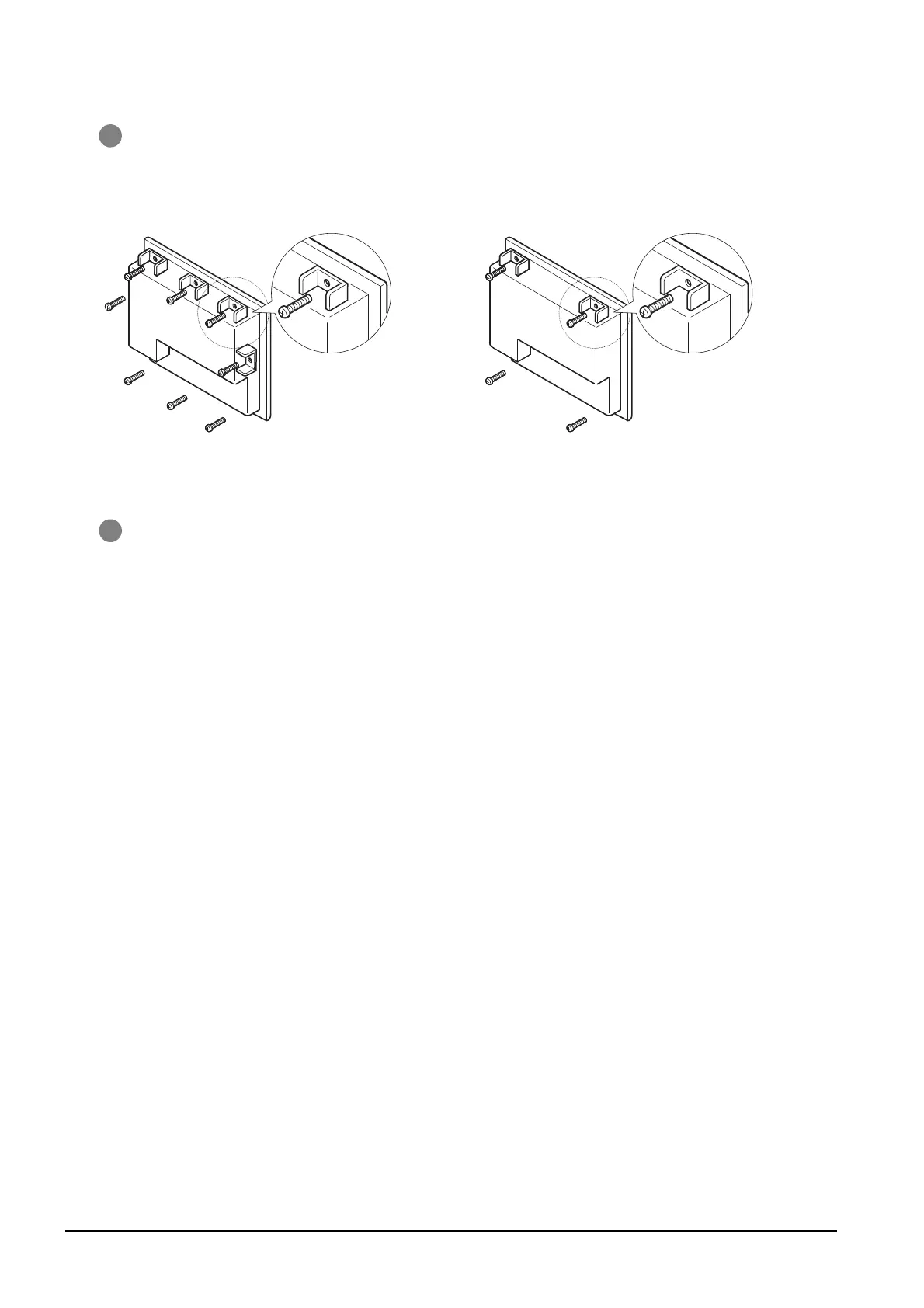

Magnified figure Magnified figure
To Next Page
