9 - 10
9.3 Utility Display
9.3.2 Utility basic configuration
9.3.2 Utility basic configuration

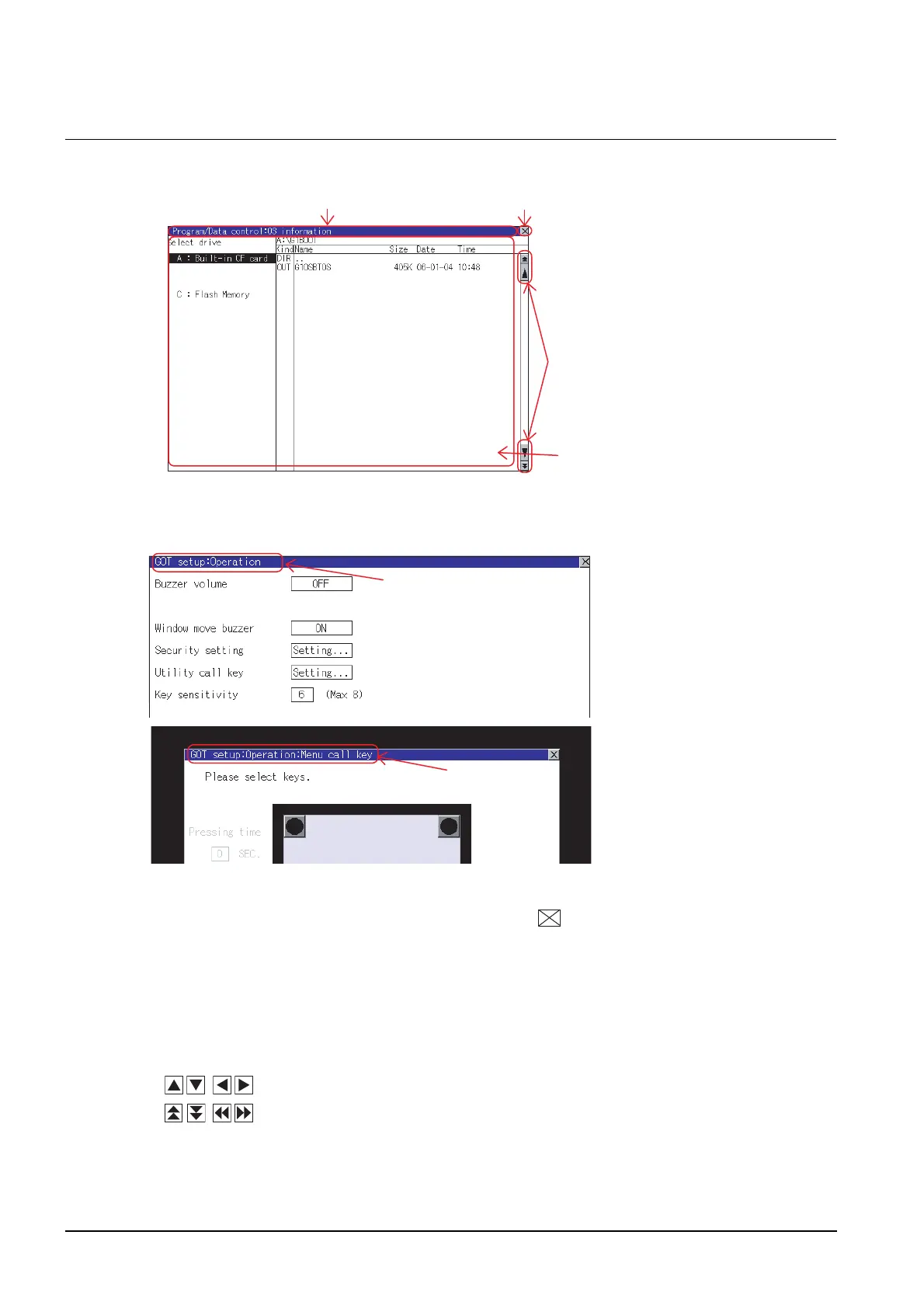

The basic configuration of utility is as follows.
(1) Title display
The screen title name is displayed in title display part.
As the screen is composed of multiple layers, the title including these layers is displayed.
(2) Close/Return button
When a middle screen of the layers is displayed, if the (Close/return) button in the right corner
of screen is touched, returns to the previous screen.
If this button is touched when directly displayed from monitor screen, the screen is closed and
returns to monitor screen.
(3) Scroll button
For screens in which the content does not fit on one screen page, there is a right or down scroll
button on the screen.
Scroll one line/column
Scroll window
Title display
Close/Return button
Scroll key
Screen
Title display
Title display
