Mitsubishi GOT1000 GT15 User Manual

8 - 32
8.7 CF Card Unit and CF Card Extension Unit
8.7.3 Installing on control panel
8.7.3 Installing on control panel

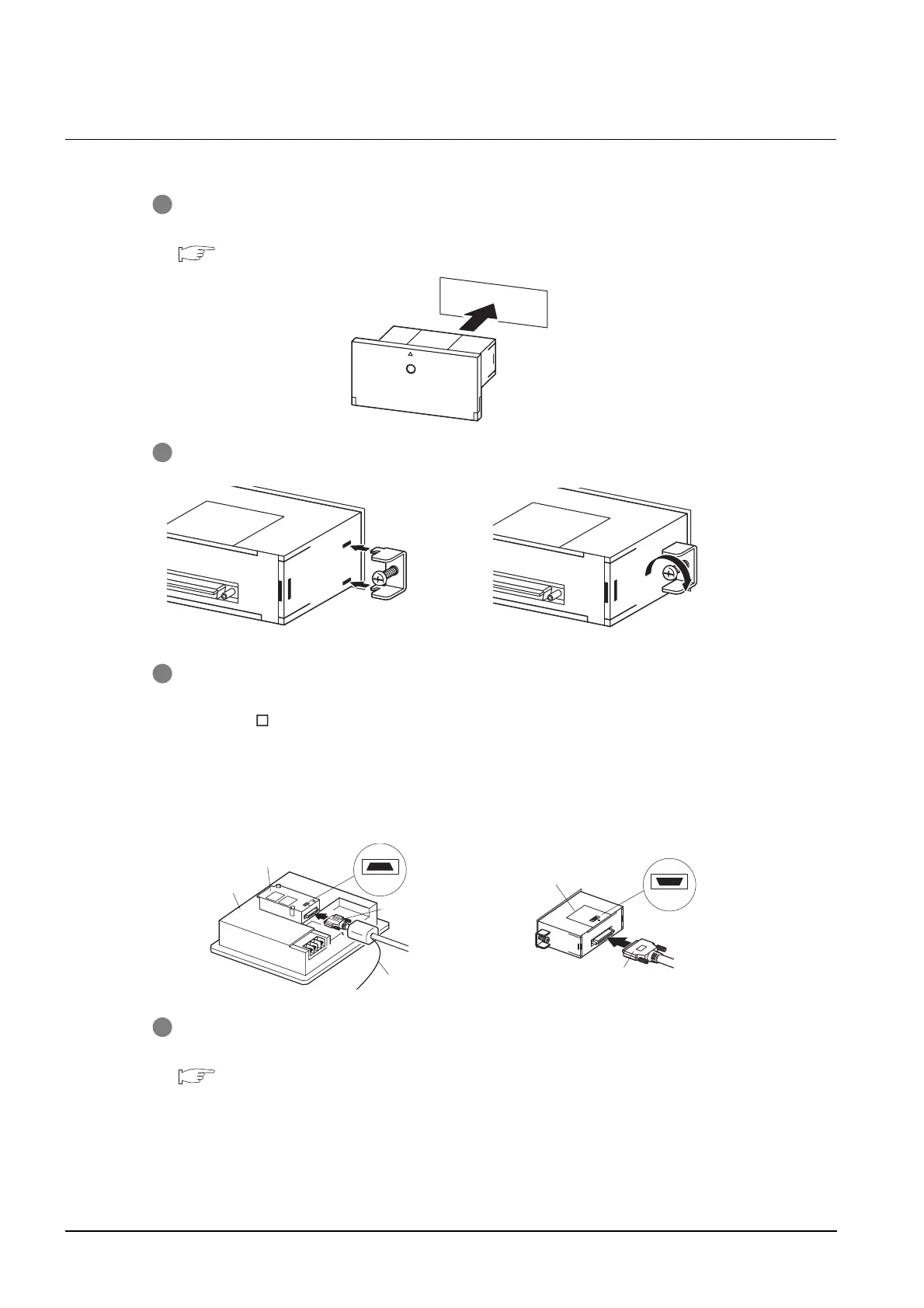

The following shows how to install the CF card extension unit on the control panel.
1 Insert the control panel side installation unit into the installation hole of the control panel.
For the installation hole, refer to the following.
6. INSTALLATION
2 Fix the GOT side installation unit by tightening its fixing screws (2 places) with a tightening torque
of 0.36 to 0.48N.m.
3 Insert the connector with the ground cable into the GOT side installation unit, and insert the
connector without the ground cable into the control panel side installation unit.
(For GT155 , before connecting the connection cable to the GOT side installation unit, connect
the ground cable of the connection cable to the GOT's terminal block. Because the GOT's
terminal block overlaps with the connection cable, the ground cable cannot be connected to the
GOT's terminal block.)
After inserting the connectors, tighten the connection cable fixing screws.
4 Connect the ground cable of the connection cable to the FG terminal of the GOT's power.
For connecting the ground cables, refer to the following.
7.6 Grounding Extension Units
Ground
cable
GOT side installation unit
GOT
A side
A
Control panel side
installation unit
B
B side

Mitsubishi GOT1000 GT15 Specifications

General

Display Size	10.4 inches
Display Type	TFT Color LCD
Resolution	640 x 480 pixels
Touch Panel Type	Analog resistive film
Power Supply	24V DC
Backlight	LED
Protection Rating	IP65 (front panel)
Interface	RS-232, RS-422/485, USB
Operating Temperature	0°C to 50°C
Memory	9 MB
Storage Temperature	-20 to 60°C
Display Colors	256 colors
