Mitsubishi GOT1000 GT15 User Manual

8.8 CF Card
8.8.2 CF card inserting/removing method with CF card interface of GOT
8 - 35
1
OVERVIEW
2
SYSTEM CONFIGURATION
3
SPECIFICATIONS
4
PART NAME AND SETTINGS
5
EMC AND LOW VOLTAGE DIRECTIVE
6
INSTALLATION
7
WIRING
8
OPTION
8.8.2 CF card inserting/removing method with CF card interface of GOT
Install/remove the CF card with the power supply of GOT is OFF or CF card access switch is OFF.

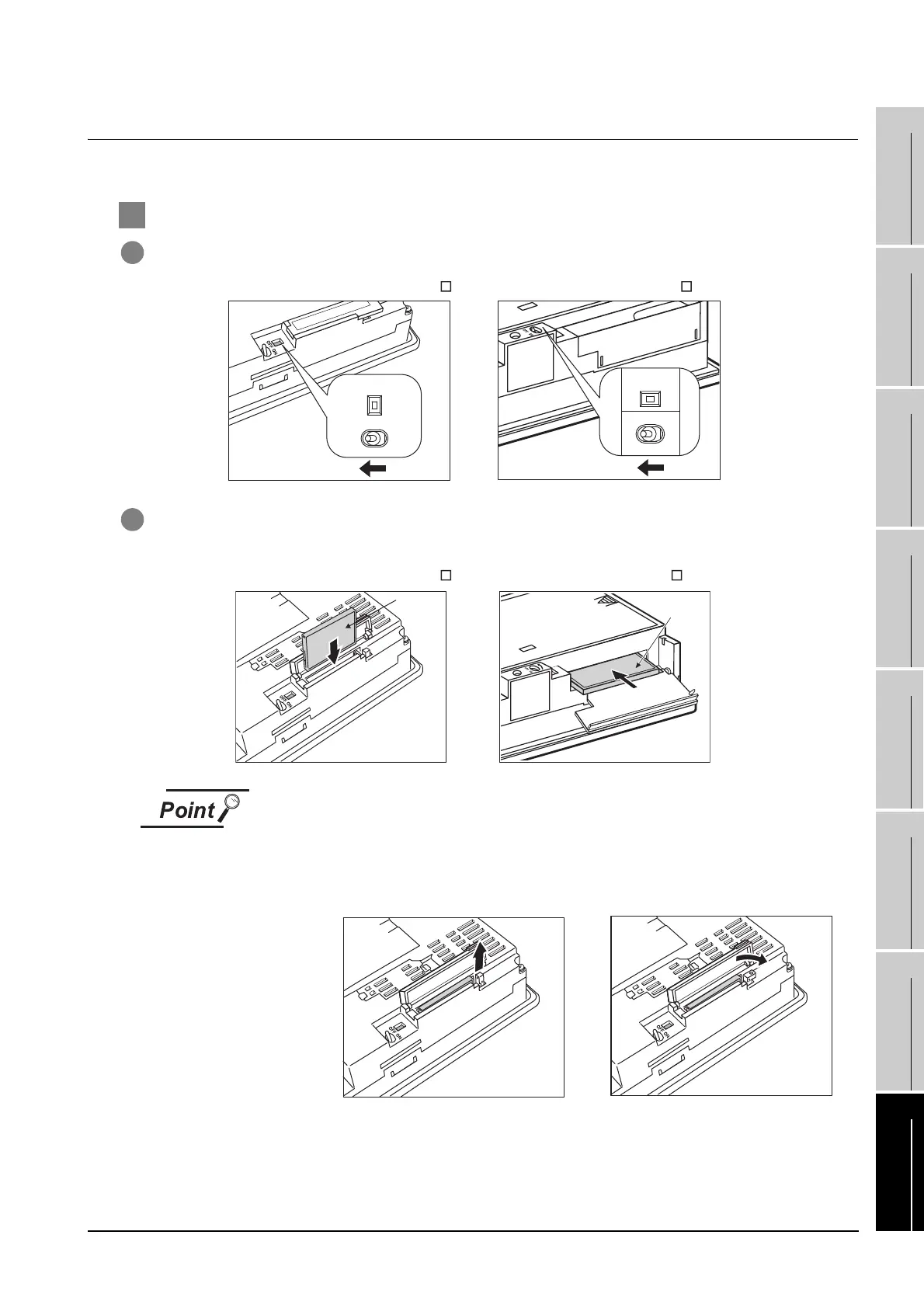

1 Installing
1 Turn the CF card access switch of the GOT off.
2 Open the cover of the CF card interface.
Insert and install the CF card into the CF card interface with its front side outside.
CF card eject button
For the following GOTs, after installing the CF card, turn the CF card eject button to
90 degree while being pulled.
• GT1585-S, GT1575-S: Hardware version B (April, 2005) or earlier
• GT1575-V, GT1565-V: Hardware version D (April, 2005) or earlier
When using other than the GT155 When using the GT155
When using other than the GT155 When using the GT155
ACCESS
OFF ON
ACCESS
OFF ON
CF Card
top face
CF Card
top face

Mitsubishi GOT1000 GT15 Specifications

General

Display Size	10.4 inches
Display Type	TFT Color LCD
Resolution	640 x 480 pixels
Touch Panel Type	Analog resistive film
Power Supply	24V DC
Backlight	LED
Protection Rating	IP65 (front panel)
Interface	RS-232, RS-422/485, USB
Operating Temperature	0°C to 50°C
Memory	9 MB
Storage Temperature	-20 to 60°C
Display Colors	256 colors
