7.3 Grouding

7.3.1 Grounding the GOT

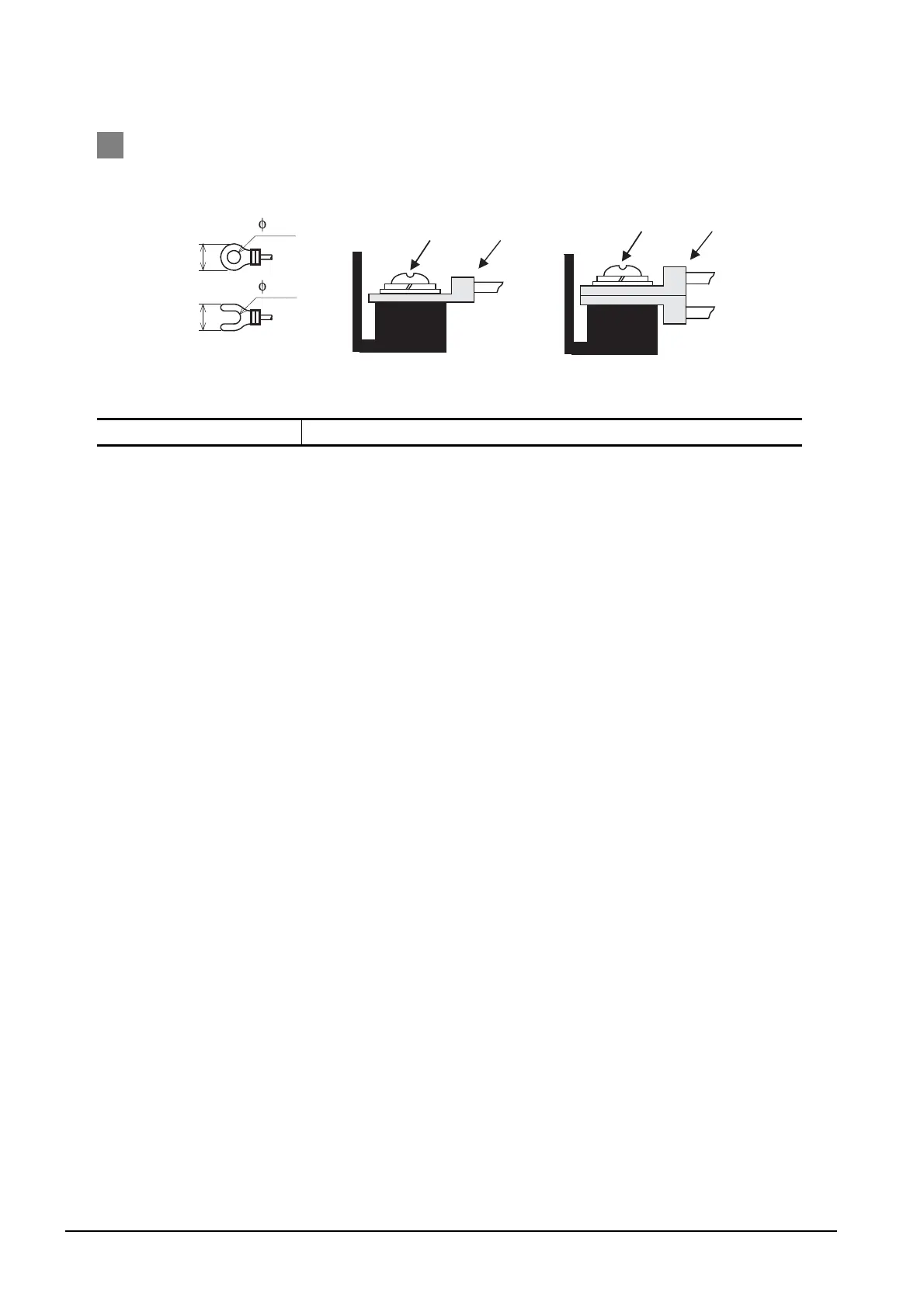

3 Recommended terminal shape

Applicable solderless terminal RAV1.25- 3, V2- S3.3, V2- N3A, FV2- N3A

Terminal

screw

Solderless

terminal

Terminal

screw

6.2mm

or less

3.2

6.2mm

or less

When wiring one cable to

one terminal

When wiring two cables to

one terminal
