8.1 Communication Unit
8.1.2 Installing procedure
8 - 7
1
OVERVIEW
2
SYSTEM
CONFIGURATION
3
SPECIFICATIONS
4
PART NAME AND
SETTINGS
5
EMC AND LOW
VOLTAGE
DIRECTIVE
6
INSTALLATION
7
WIRING
8
OPTION

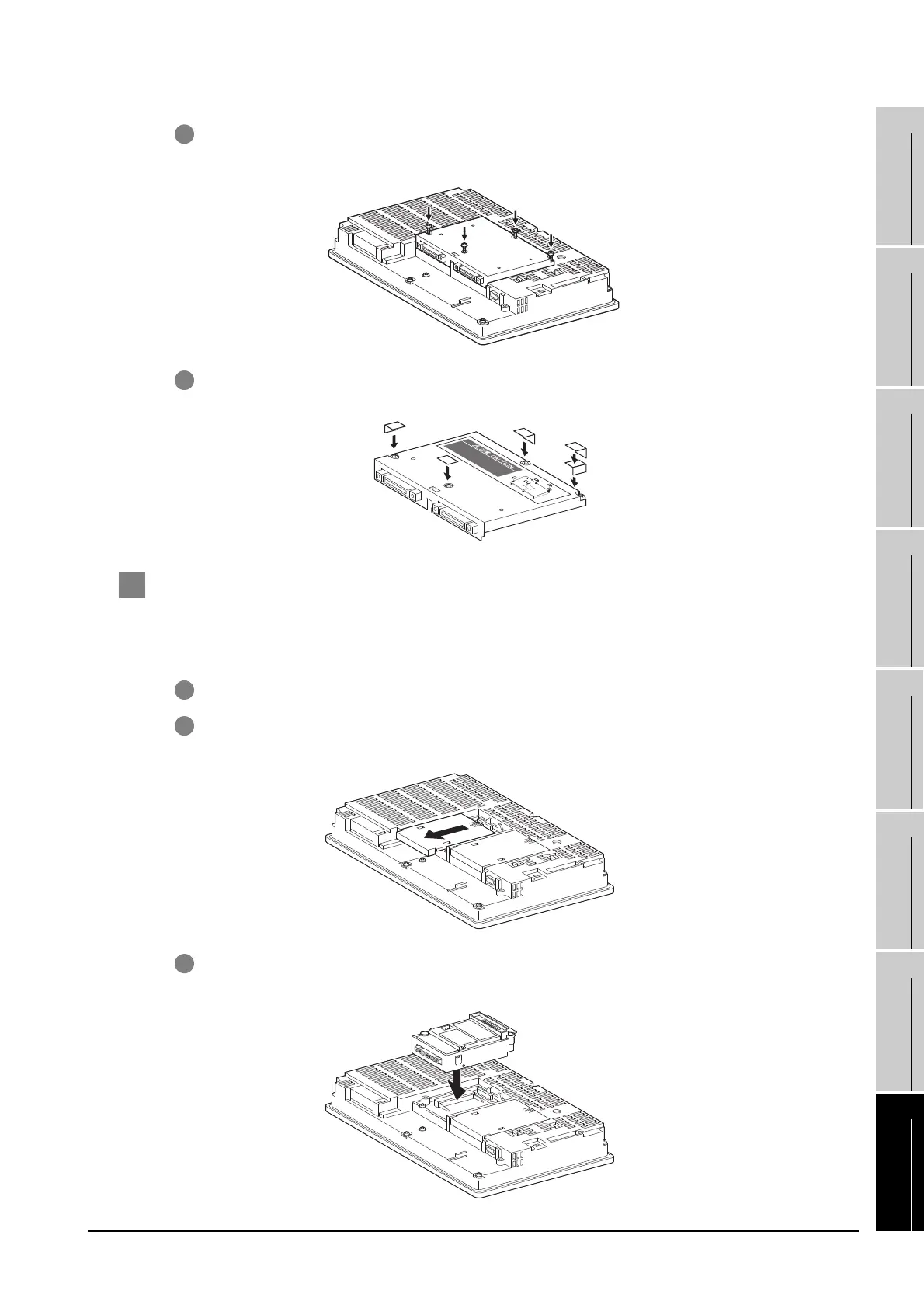

4 After the installation, tighten the mounting screws (4 places) in the specified torque range (0.42
to 0.57N·m).
5 Paste the provided stickers after tightening the mounting screws in order to avoid receiving
electrostatic.
2 Serial communication unit, Ethernet communication unit
(1) Unit installation
The following explanation uses the Ethernet communication units as an example.
The serial communication unit can be installed with the same procedure.
1 Power OFF the GOT.
2 Remove one extension unit cover of the GOT.
.
3 Fit the communication unit in the GOT case.
To Next Page
