8.10 Option Function Board
8.10.2 Installing procedure
8 - 45
1
OVERVIEW
2
SYSTEM
CONFIGURATION
3
SPECIFICATIONS
4
PART NAME AND
SETTINGS
5
EMC AND LOW
VOLTAGE
DIRECTIVE
6
INSTALLATION
7
WIRING
8
OPTION

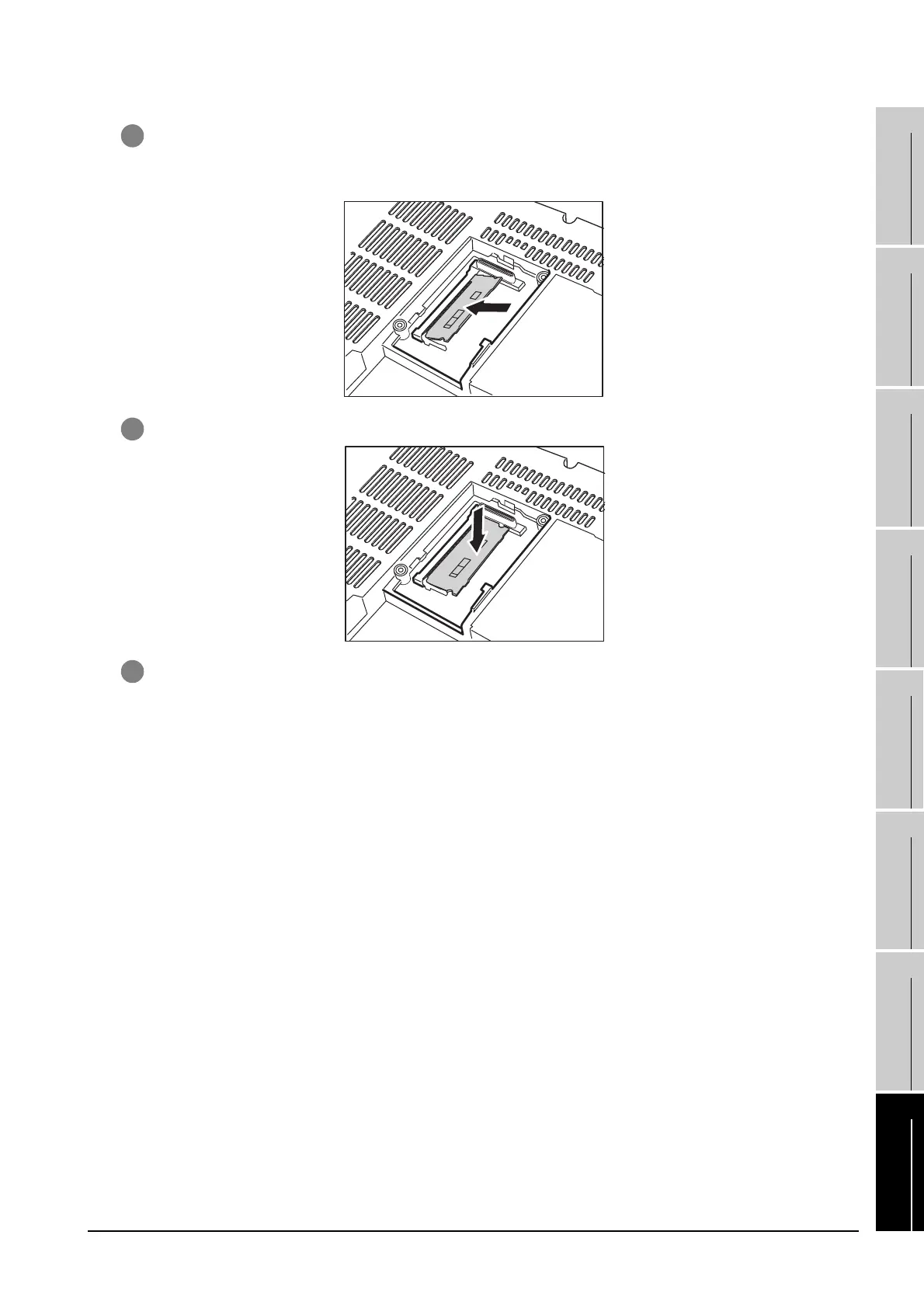

3 Insert the option function board to the option function board interface to which the positioning crenas are
fitted.
For installing the option function board, do not touch a board inside the GOT.
4 Push down the option function board until it clicks.
5 After the installation of option function board, attach the extension unit cover.
For installation of extension unit, install the extension unit.
