11 - 41
11.11 Video Display Settings

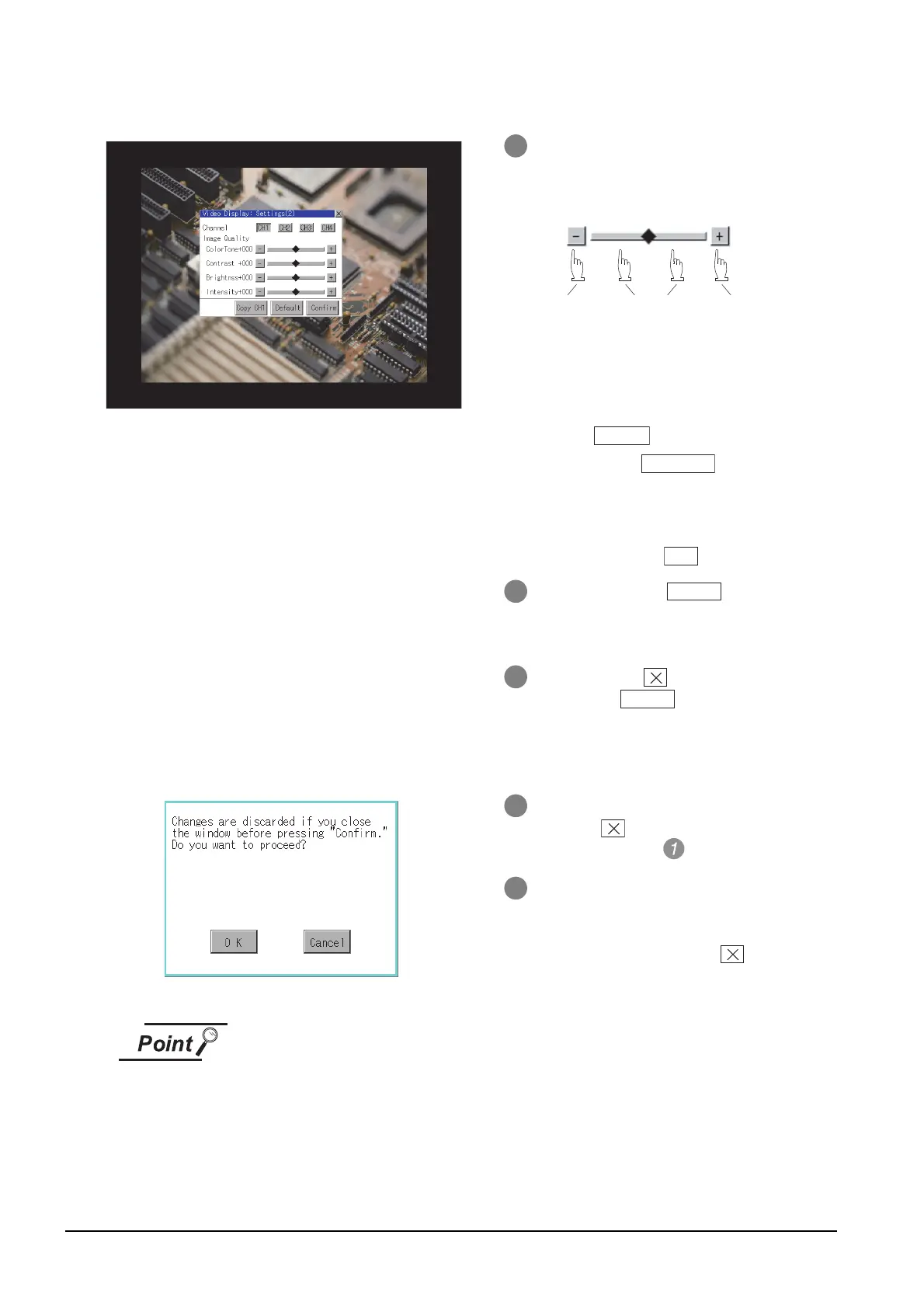

11.11.3 Operating the video display settings
Precautions for setting
Incorrect settings may disrupt or stop the video image.
(If this happens, returning the settings to their default values restores normal display.
This phenomenon depends on the video camera or other device connected.
Use setting values that provide proper display.
7 The image quality (color tone, contrast,
brightness, color intensity) for the selected
channel No. can be changed.
Touching returns to the default status.
When touching , the image
quality (color tone, contrast, brightness,
color intensity) for the selected channel No.
is matched with the image quality settings
for Channel No. 1 ( ).
8 When touching the button, the
setting contents are determined.
9 If you touch the button without
touching the button, the dialog box
on the left is displayed.
10 After completing all the items to set, if you
touch the button, the display returns to
the preview screen .
11 After completing the settings for all the
items you want to change in the video
display settings, when closing [Video
Display (Preview)] with the button, the
display returns to [Video/RGB Setting].
Changes the
number a
certain
amount in the
direction.
Changes the
number to
the touched
position.
Changes the
number a
certain
amount in the
direction.
Copy CH1
To Next Page
