13.1 Data Storage Location

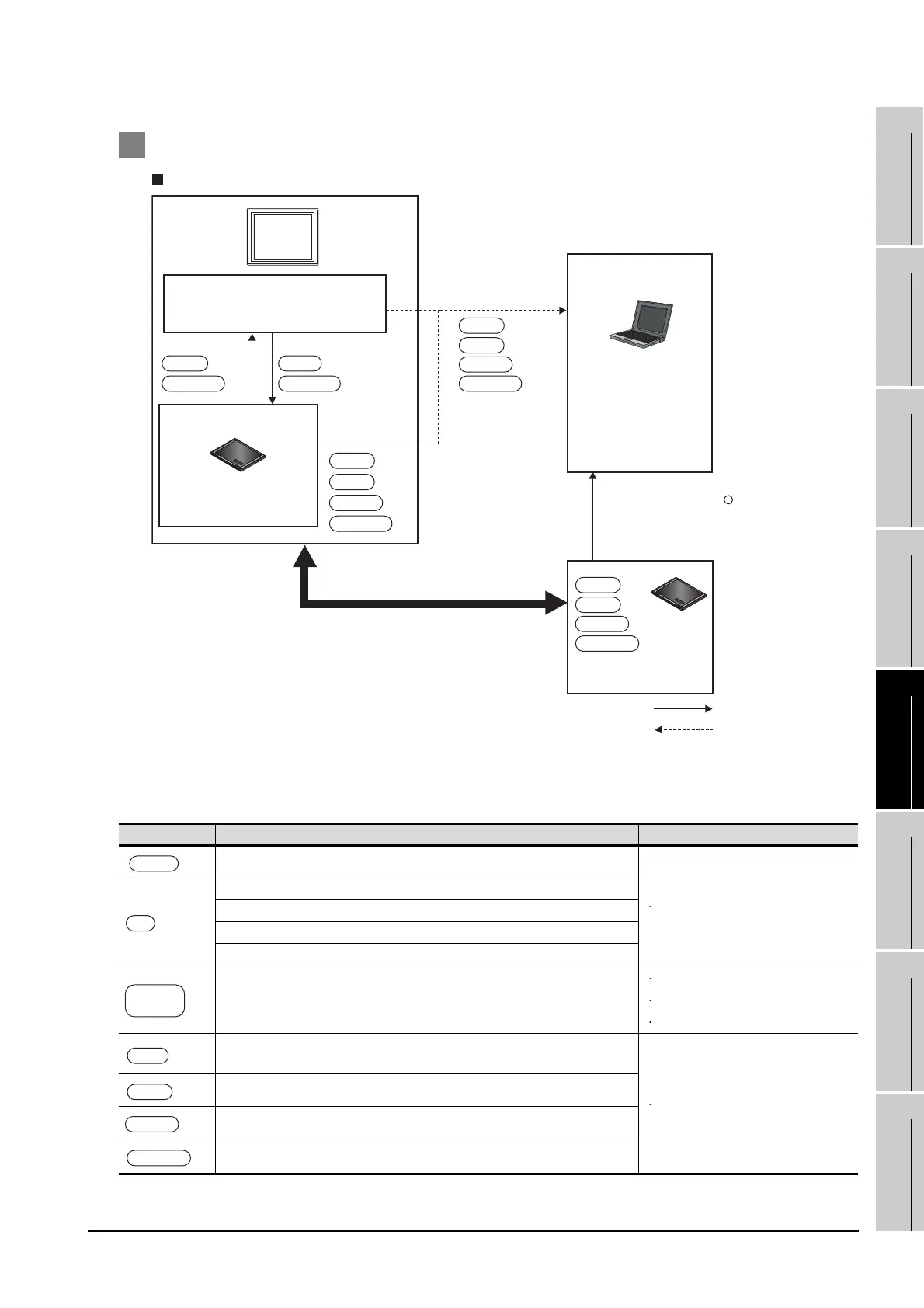

13.1.2 Data type and the storage location
13 - 3
9
UTILITY FUNCTION
10
COMMUNICATION INTERFACE SETTING
11
DISPLAY AND OPERATION SETTINGS
12
CLOCK SETTINGS AND BATTERY STATUS DISPLAY
13
FILE DISPLAY AND COPY
14
GOT SELF CHECK
15
CLEANING OF DISPLAY SECTION
16
MAINTENANCE TIME NOTIFICATION SETTING
2 At maintenance
The data of the build in flash memory (Project data, etc.) can be saved even if the battery voltage becomes
low.
*1 When using the project data stored in the Standard CF Card (A drive) or extended memory card (B drive) with the
GOT, hold the CF card installed to the GOT.
Item Data type Storage location
BootOS
Built in flash memory (C drive)
Standard monitor OS
PLC communication driver
Extended function OS
Option OS
Project data
(Including recipe setting, alarm conditions, time action, and GOT setup.)
Standard CF card (A drive)
Extended memory card (B drive)
*1
Built-in flash memory (C drive)
*1
Alarm data
(Extended alarm log file and alarm log file)
Standard CF card (A drive)
Recipe data (Advanced recipe file, Recipe file)
Logging (Logging file)
Image file (Hard copy function)
Copy files on Windows
Resource data
upload
PC
GT Designer3
or
GT Designer2
GOT main unit
(C drive)
(A drive, B drive)
Standard CF card
(when installed in GOT, CF card unit,
CF card extension unit )
Standard CF card
(when installed in PC)
Built-in flash memory
Alarm
Recipe
Hard copy
Alarm
Recipe
Alarm
Logging
Inserting/Removing
Copy
Alarm
Hard copy
Copy
Recipe
Alarm
Install, Download, Write :
Upload, Read :
Hard copy
Logging
Logging
Hard copy
Hard copy
R
BootOS
OS
Project
data
Alarm
Recipe
Logging
Hard copy
